5. 5 Call Distribution Element (CDE)

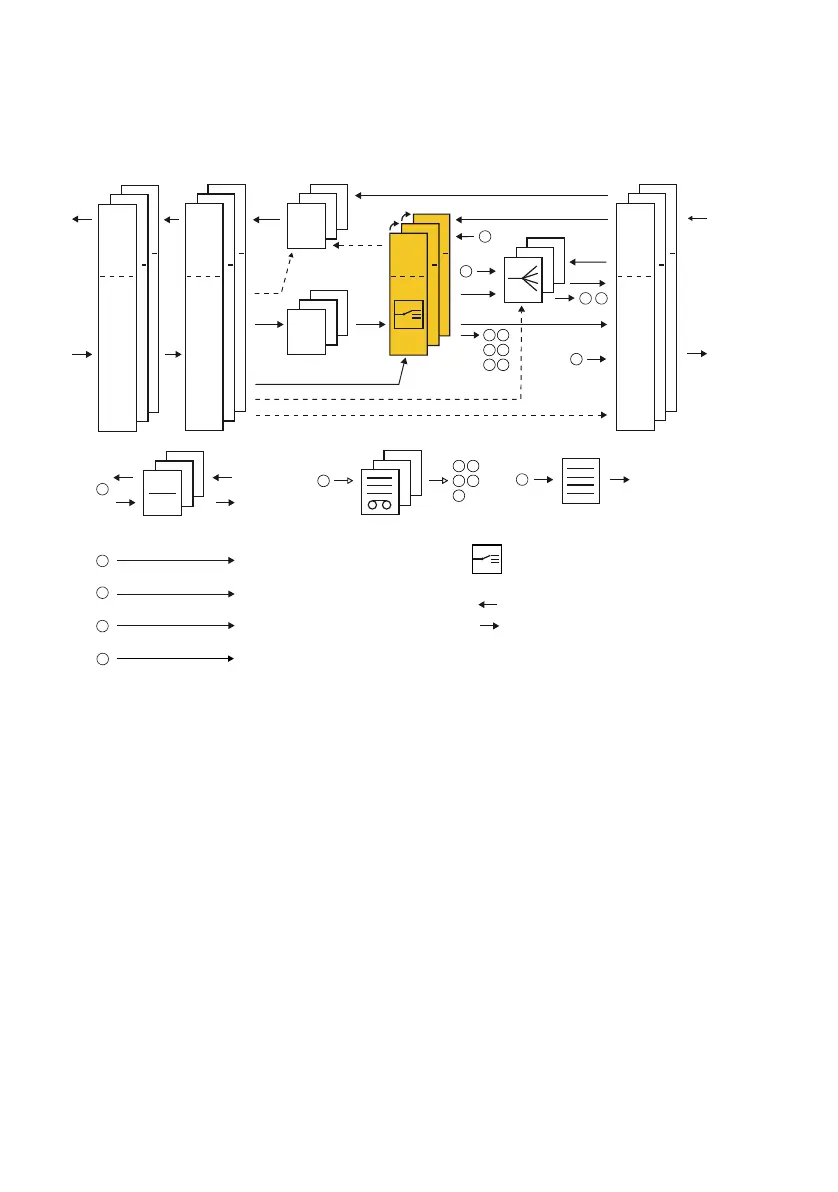

Fig. 57 Call distribution elements in relation to the other routing elements
Call distribution elements are used to route an incoming call to an individual destination
or to a combination of destinations.
Each call distribution element is assigned a switch group. The destinations can be
specified differently for all three switch positions of the switch group.
Each call distribution element can be linked with two other call distribution elements for
the routing to alternative destinations if either the original destination is busy or the call
is not answered.
A call distribution element can be addressed both internally and externally. It can route
a call to an internal or an external destination.
Call distribution elements can be allocated call numbers in the numbering plan. Internal
calls can then be routed to a call distribution element by selecting one of these num-
bers (but not with name selection).
