Call logging (CL)
307
System functions and features as of R4.1
syd-0570/1.2 – R4.1 – 08.2016

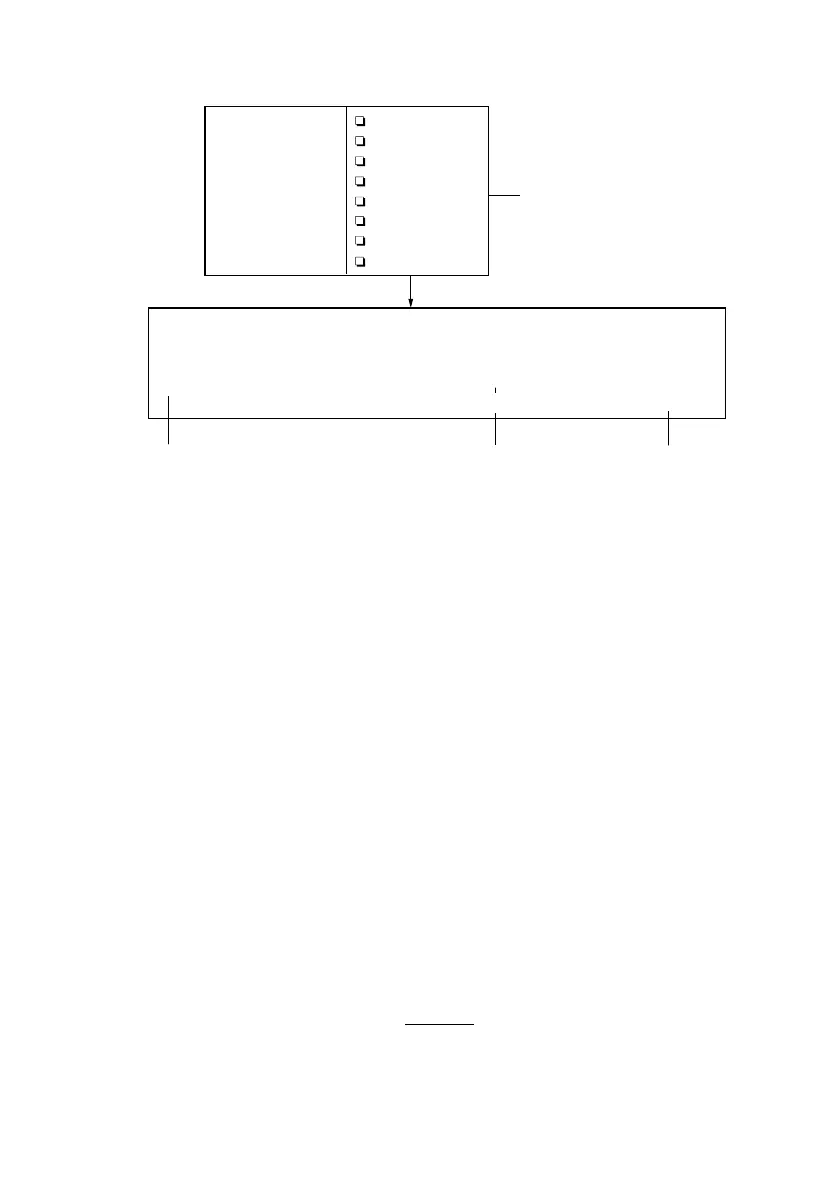

Fig. 174 CL output in invoice format
If Data protection is configured, the CALL NUMBER DIALLED field will contain the " "
(space) character in the last 4 places.
The printout in the invoice format ends with the character ETX (End of Text, 03 hexa-
decimal). This character is required by certain types of printers to actuate the cutting
device.
8. 7. 7 Output formats PC1 to PC4
Output formats PC1 to PC4 are older formats which, although they are still supported,
are no longer being expanded. Output format PC5 is therefore recommended for new
applications.
At the end of each call, the call data logged is printed out on one of the system’s Ether-
net interfaces.
Data record field structure
The fields are separated by one or more "space" ASCII characters. The data import
mask must therefore take account of the position of the beginning of the field ("Offset"
column in the structural descriptions below).
The symbols and conventions listed in Tab. 109
are used to format the fields:
X
22 98 040597 07:21 00H01M29 03.02 00012 012111111 0086
20.10
TELEPHONE CHARGES SERVICE INCLUDED CHF
HOTEL SOLOTHURN
SERIAL NO.
DIALLED NUMBERS
EXCHDURATIONTIMEDATE
SC
NO
OIP
PC1
PC2
PC3
PC4
PC5
Protocol
Bill
Surcharge for room,
booth or private call
With or without
data protection
Perforated ticket paper (6 lines per ticket)
for each connection
CL output
