Mitel 430 - Trunk groups

Routing elements
107
System functions and features as of R4.1
syd-0570/1.2 – R4.1 – 08.2016
5. 2 Trunk groups

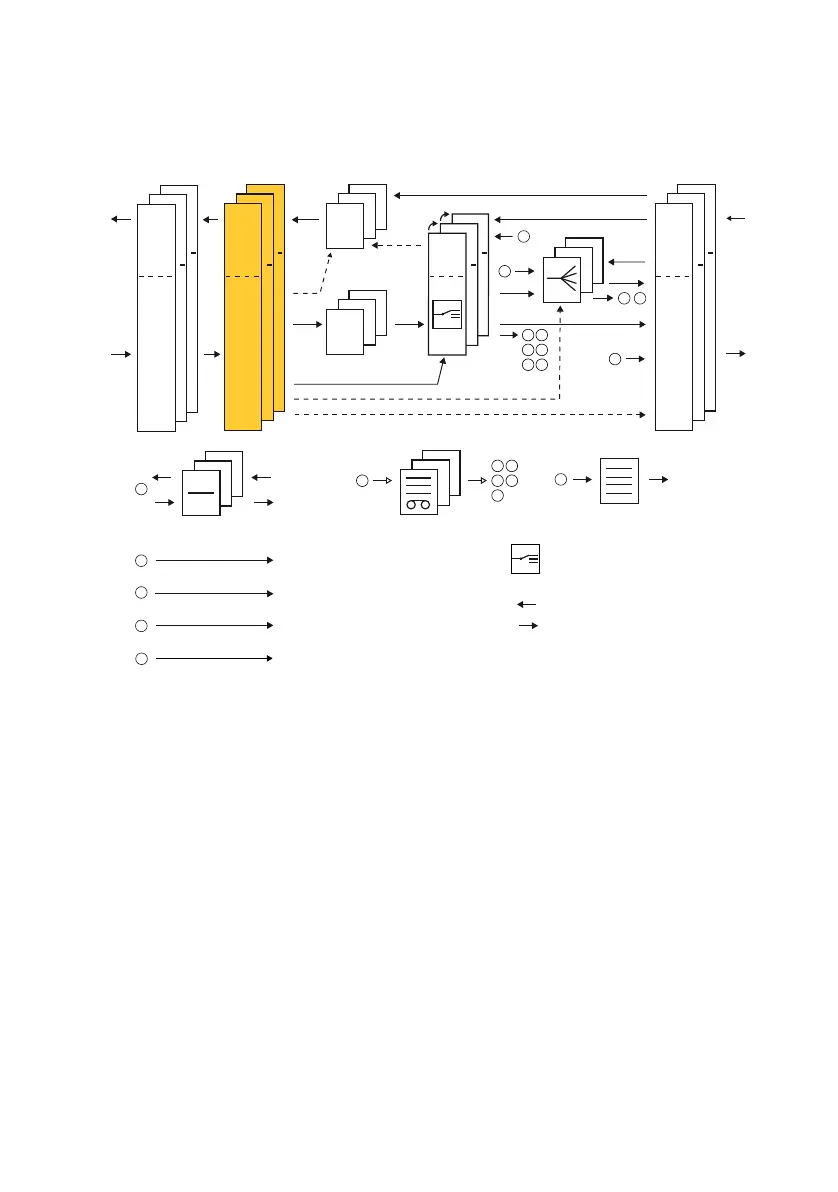

Fig. 50 Trunk groups in relation to the other routing elements
Network interfaces with the same characteristics are grouped together in a trunk
group. For example, it is specified whether the network interfaces allocated to a trunk
group are connected to a private network or the public network.
The trunk group is the key element for call traffic with the network. The trunk group
configuration is allocated important routing and identification functions, essentially for
incoming traffic. A number of settings are used for setting up special network configu-
rations, for instance the optimum integration of PINXs by third-party manufacturers.
The default values of these settings are such that they do not need to be adapted any
further for conventional configurations.
