Mitel 430 - Call from the Public Network

Call routing
170
System functions and features as of R4.1
syd-0570/1.2 – R4.1 – 08.2016
6. 3. 1. 1 Call from the Public Network
A call with a suitable direct dial number is routed to the destination via the call distribu-
tion element allocated in the direct dialling plan.
If a suitable direct dial number is not found, the call is routed in the same way as a call
from the public network without direct dialling (see "Routing without Direct Dialling",
page 171).
Direct dialling is not supported for calls from the analogue network.
Routing with Direct Dialling

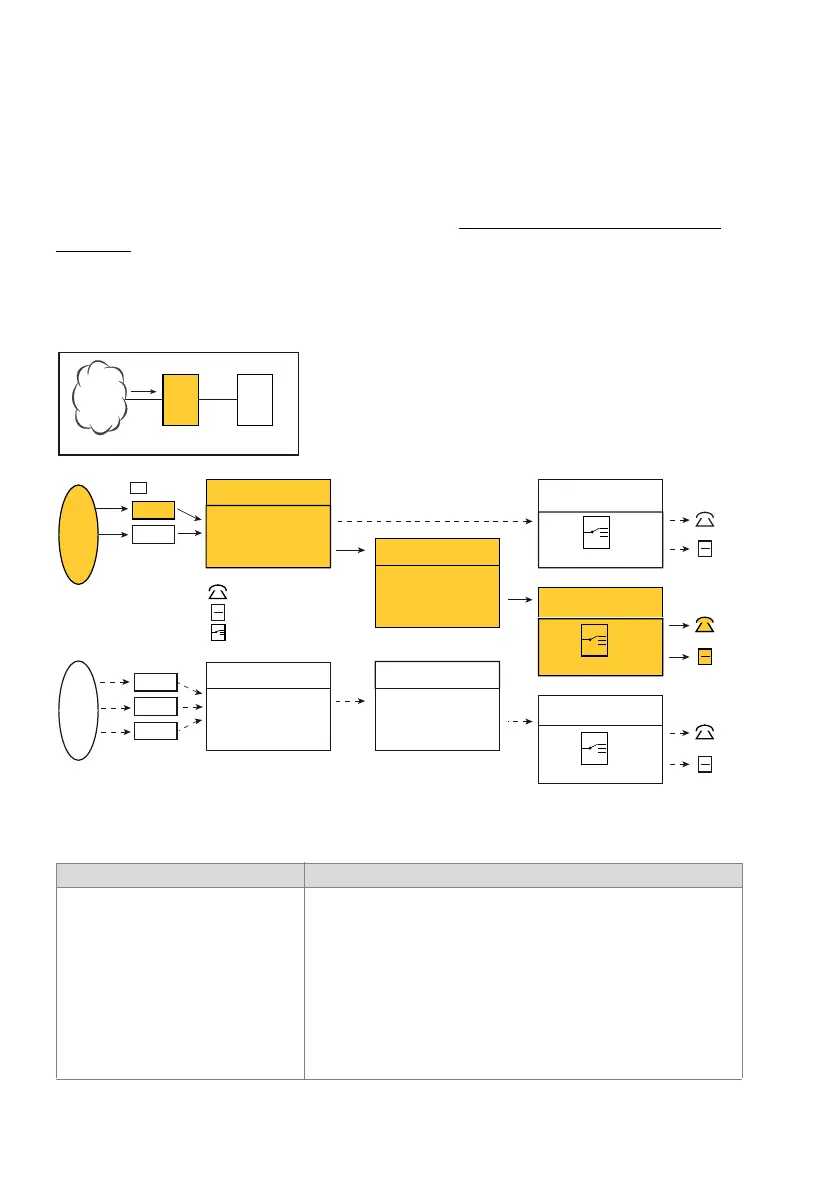

Fig. 84 Routing a call from the public network with direct dialling
Tab. 25 Setting the routing parameters
Parameter Parameter value
Trunk group 1:
• Network interfaces Network interfaces in this trunk group
• Max. incoming calls Number of calls allowed simultaneously
• Maximum simultaneous connections Number of connections allowed simultaneously
• Network type Public
• Protocol DSS1
• Overwrite NPI No
• DDI plan 1 (number of a direct dialling plan)
220
1/n
220
2/n
220
3/n
222 22 20
PINX 1
PINX 2
PINX 1
BRI-T
PRI
BRI-T
PRI
PISN
Call distribution 3
Call distribution 2
Call distribution 1
-> User 220 + KT
-> User 220 + KT
-> User 220 + KT
Direct dialling plan 2
Direct dialling plan 1
Trunk group 2 (PSS1)
Trunk group 1 (DSS1)
-> Direct dialling plan 2
Network
interfaces
Ex-
change
Changeover switches
KT line
User
-> Call distribution 1
-> Direct dialling plan 1
DDI no. 20
-> Call distribution 2
DDI no. 20
-> Call distribution 3
S
extern
