5. 11. 4. 1 Application Examples for Key Telephones
Destination Combination KT+UG
The multiple destination KT line and user group 5 have been configured in call distribu-
tion element 1 with number 200 in the numbering plan.
Two line keys are connected to the KT line 1/1 It is therefore a through KT line The first
line key belongs to the key telephone with user number 211; the second belongs to the
key telephone with user number 221.
The element Operator console is configured on user group 5. Internal user 291 is en-
tered as member of the member group. Delay is activated for both elements (operator
phone and user).

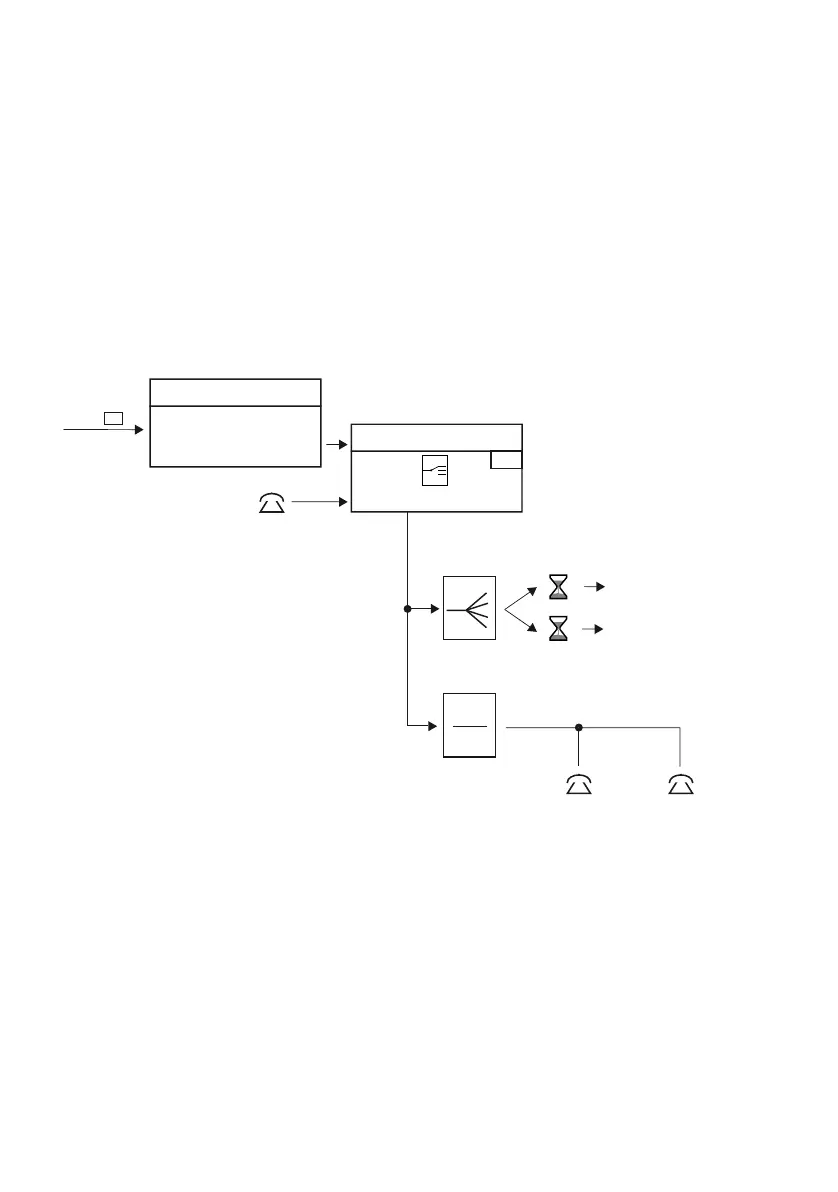

Fig. 74 Application for key telephones and user group
If an incoming call is not answered within the set delay time using the line keys of users
211 or 221, the call will be routed on to user group 5 and signalled at the same time to
the operator phone and user 291.
250
200
211
221
222 22 20
200
Call distribution 1
Direct dialling plan 1
DDI No. 20
-> Call distribution 1
User 291
Operator Console
KT line 1/1
Line group 5
-> UG 5 + KT
