6. 5. 9 Call logging and Data Protection
In connection with the LCR function, the OCL output format PC5 (recommended) or
PC4 must be used (see "Output formats", page 282).
When the data protection function is activated, the following data will not be output or
output only in part, in OCL output format PC5 and PC4:
• The last four digits of the phone number dialled by the user will be truncated.
• The last four digits of the phone number dialled by the LCR function will be trun-
cated.
• User IDs and PIN codes will not be output.
• User IDs and PIN codes will also be suppressed when the LCR tables are printed
out.
6. 5. 10 Examples of LCR

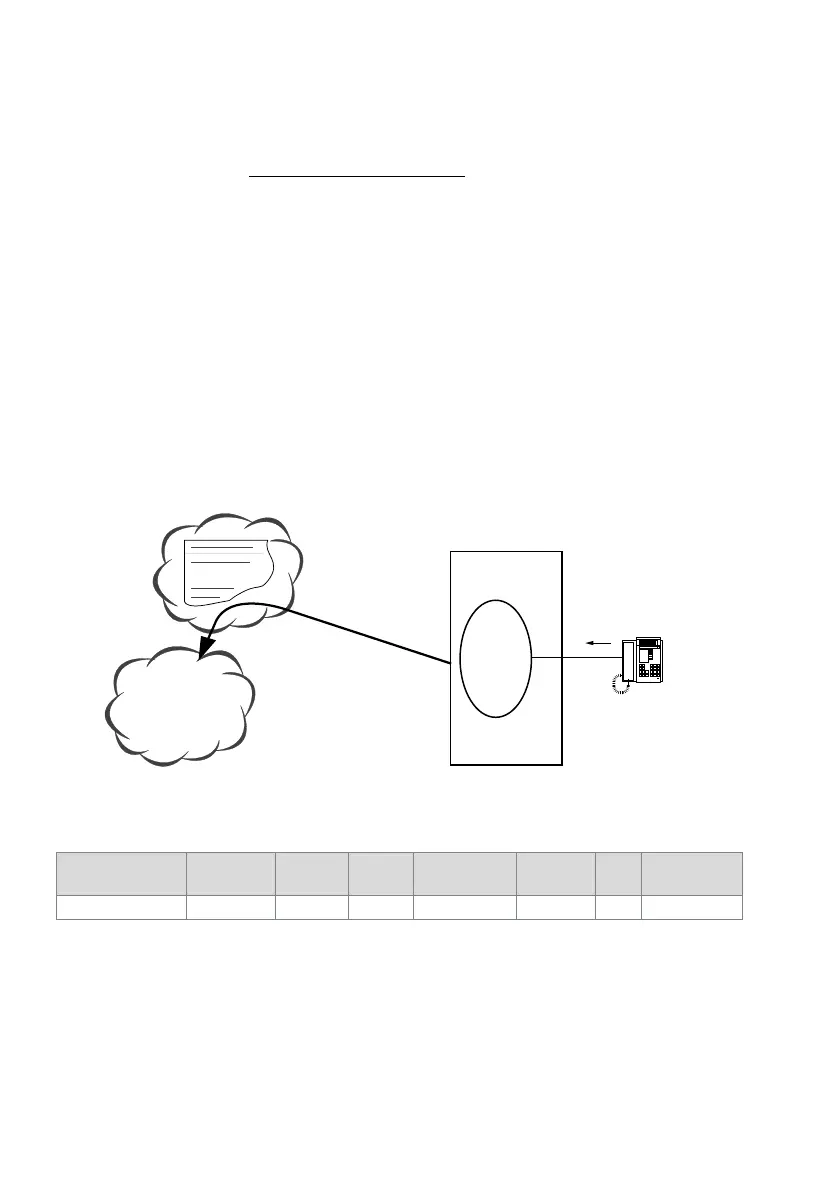

Fig. 106 Example 1: Network provider B is integrated in the numbering plan of network provider A
Tab. 56 Example 1: Entry in the network provider table
Step 1:
• The system reaches network provider B via network provider A
• Network provider B seizes and the connection provider B – communication server is
set up
Network provider Exclude
Access
code
Route
Conversion
rule
User ID PIN
Charge code
length
Network provider B Deactivated 132 – EN – – –
132 01 91 416 08 74
01 91 416 08 74
0-01 91 416 08 74
Network B
User dials
Network A
Communica-
tion server
LCR
132 Network B
