Identification elements
98
System functions and features as of R4.1
syd-0570/1.2 – R4.1 – 08.2016
Call to the Public Network via a Gateway PINX with Overflow Routing and non-
automatic CLIP
User B (330) on PINX 2 calls user F on the public network via PINX 3 as all the availa-
ble communication channels between PINX 2 and PINX 1 are busy.
PINX 3 does not have a DDI number for user B.
In the user configuration of user B, the setting Create CLIP number automatically is
deactivated. The CLIP settings of the user configuration are used:
• CLIP number = 55 555 55 53
• Numbering plan identifier (NPI) = E.164
• Number type (TON) = National

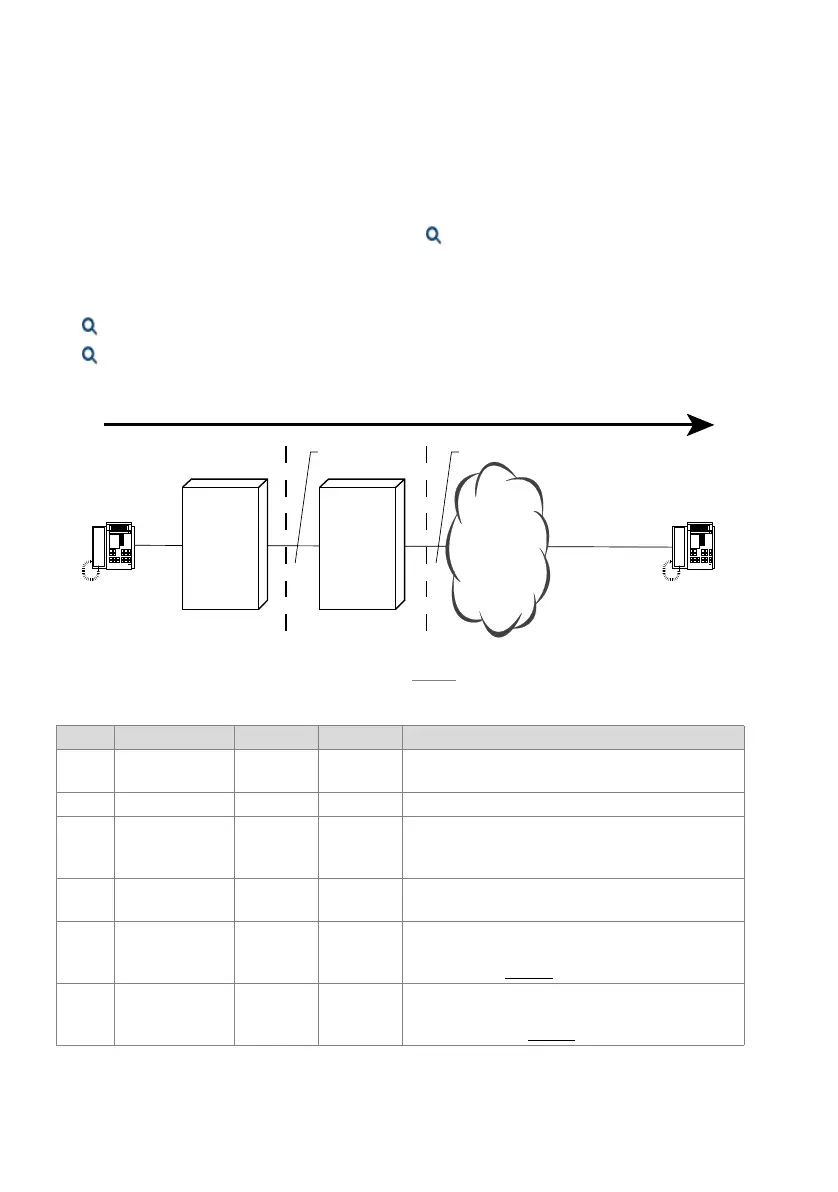

Fig. 45 Example 5: User B calls user F (excerpt from Fig. 40)
Tab. 16 Example 5: Creating and presenting user B’s CLIP number
Step CLIP number NPI TON Description
1 330 PNP Level 0 User B
→
PINX 2
• A suitable DDI number is not searched for.
2 55 555 55 53 E.164 National PINX 2
→
PINX 3
3 55 555 55 53 E.164 National PINX 3
• CLIP number is buffered unchanged
• A suitable DDI number is not searched for.
4 55 555 55 53 E.164 National PINX 3
→
Public exchange
• CLIP number is sent unchanged to the public network.
5a 055 555 55 53 Public exchange
→
user F
• Presentation on the terminal if special arrangement is
available (see page 74
).
5b 066 666 66 60 Public exchange
→
user F
• Presentation on the terminal if special arrangement is
not available (see page 74
).
330
F
B
330
055 555 55 53
55 555 55 53
022 222 22 22
55 555 55 53
55 555 55 53
Region 60
Region 50
PINX 2
PINX 3
Gateway PINX
Source PINX
