Placing Originals in the ADF
Place originals in the ADF.
Be sure not to block the sensor or load the original untidily. Doing so may cause the machine to detect the
size of the original incorrectly or display a paper misfeed message. Also, be sure not to place originals or
other objects on the top cover. Doing so may cause a malfunction.

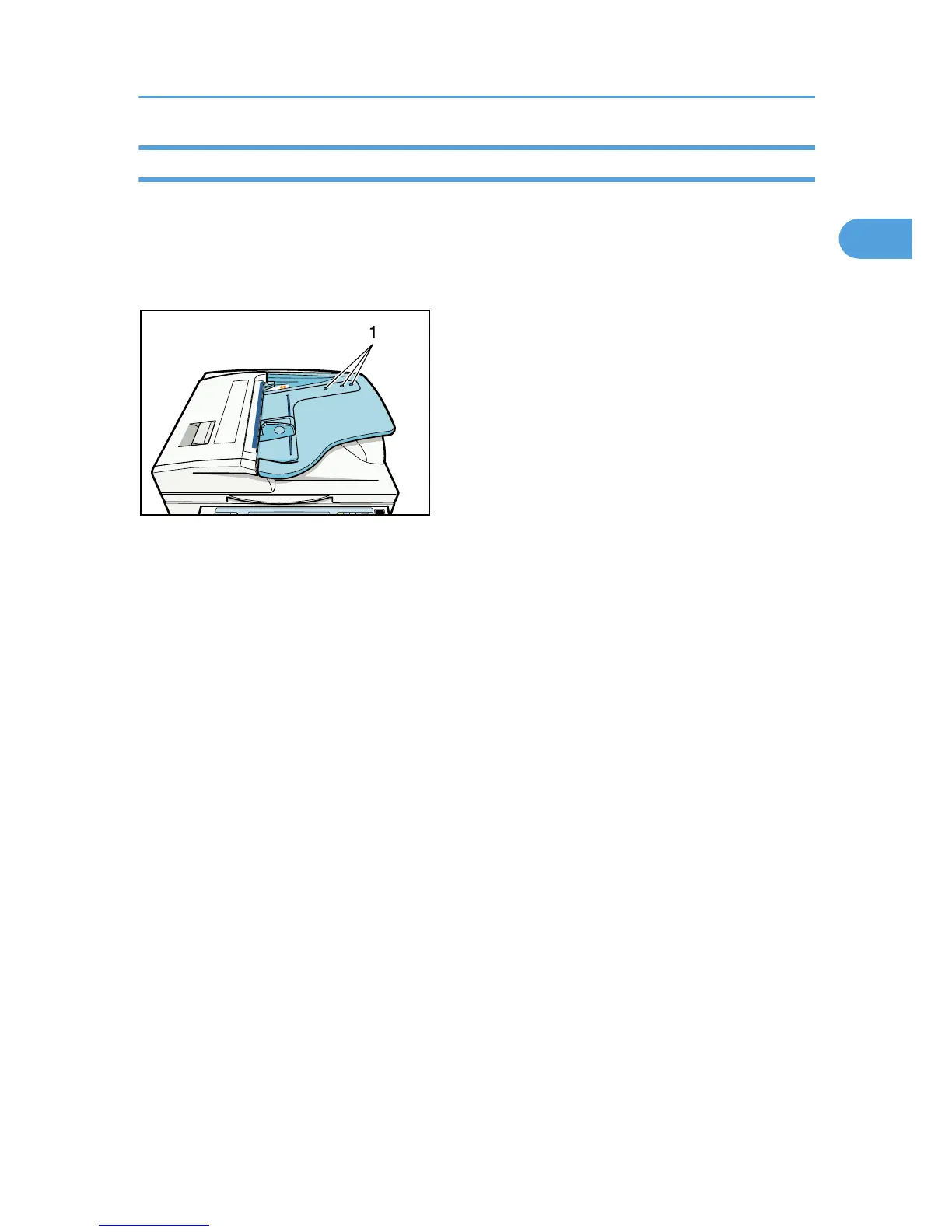

BCY002S
1. Sensors
Settings should be made in the following situations:
When placing originals consisting of more than 100 pages:
See “Batch Mode”.
When placing originals one by one:
See “SADF Mode”.
When copying originals of various sizes:
See “Mixed Sizes Mode”.
When placing custom size originals:
See “Custom sizes”.
1. Adjust the document guide to the original size.
2. Set the aligned originals face up into the ADF.
Do not stack originals beyond the limit mark.
The first page should be on the top.
Placing Originals
25
1
