COVERS / BOARDS
SM 3-3 C231/C237/C238
3.2.4 PSU
•
Upper left cover (

3.2.2)
•
Master eject unit (

3.4.1)

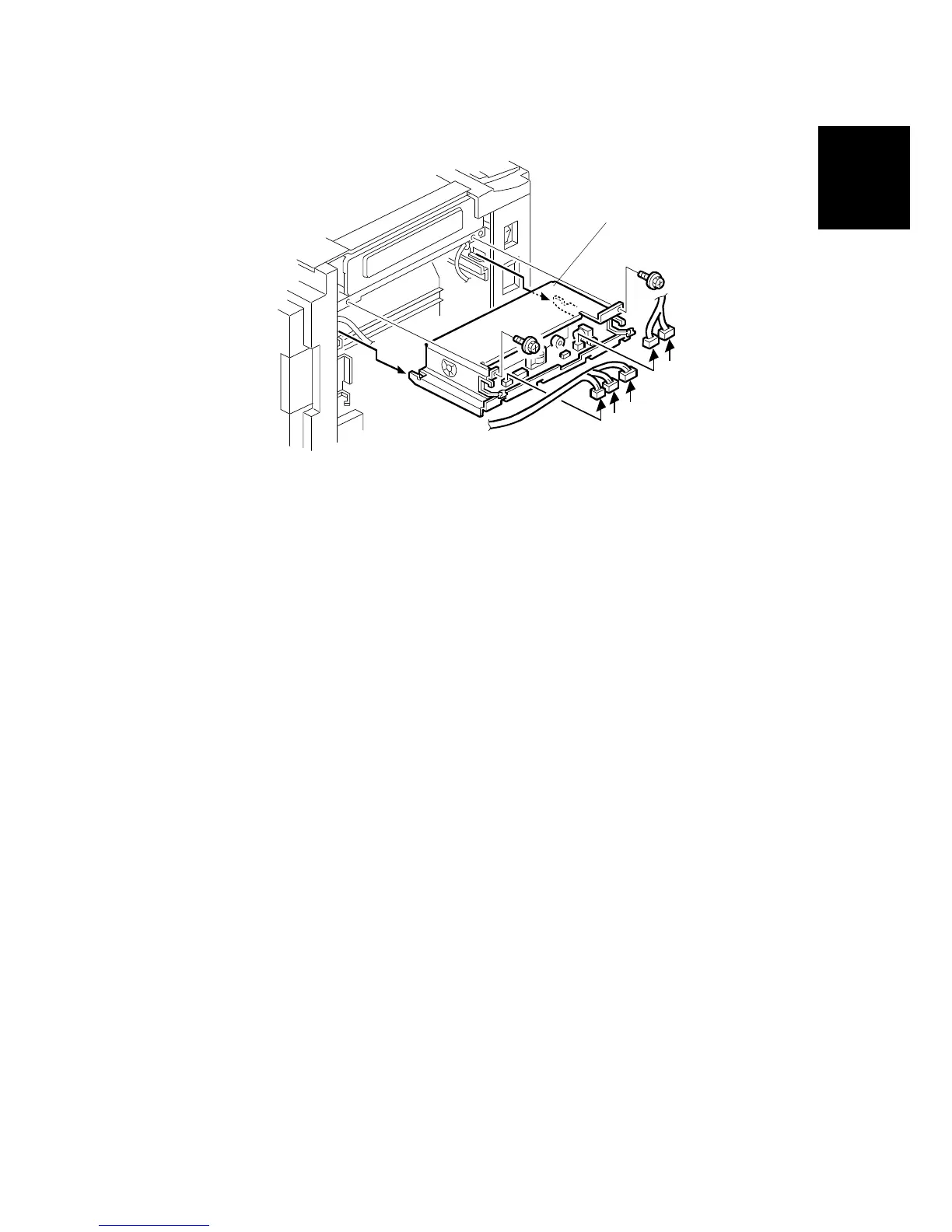

[A]: PSU (

x 5,

x 2, 2 clamps)
CAUTION:
When the PSU is replaced, the thermal head voltage returns to the
default. Adjust the thermal head voltage (

3.5.3) after installing the
new board.
