Replacement
Adjustment
PAPER FEED
SM 3-15 C231/C237/C238
3.6 PAPER FEED

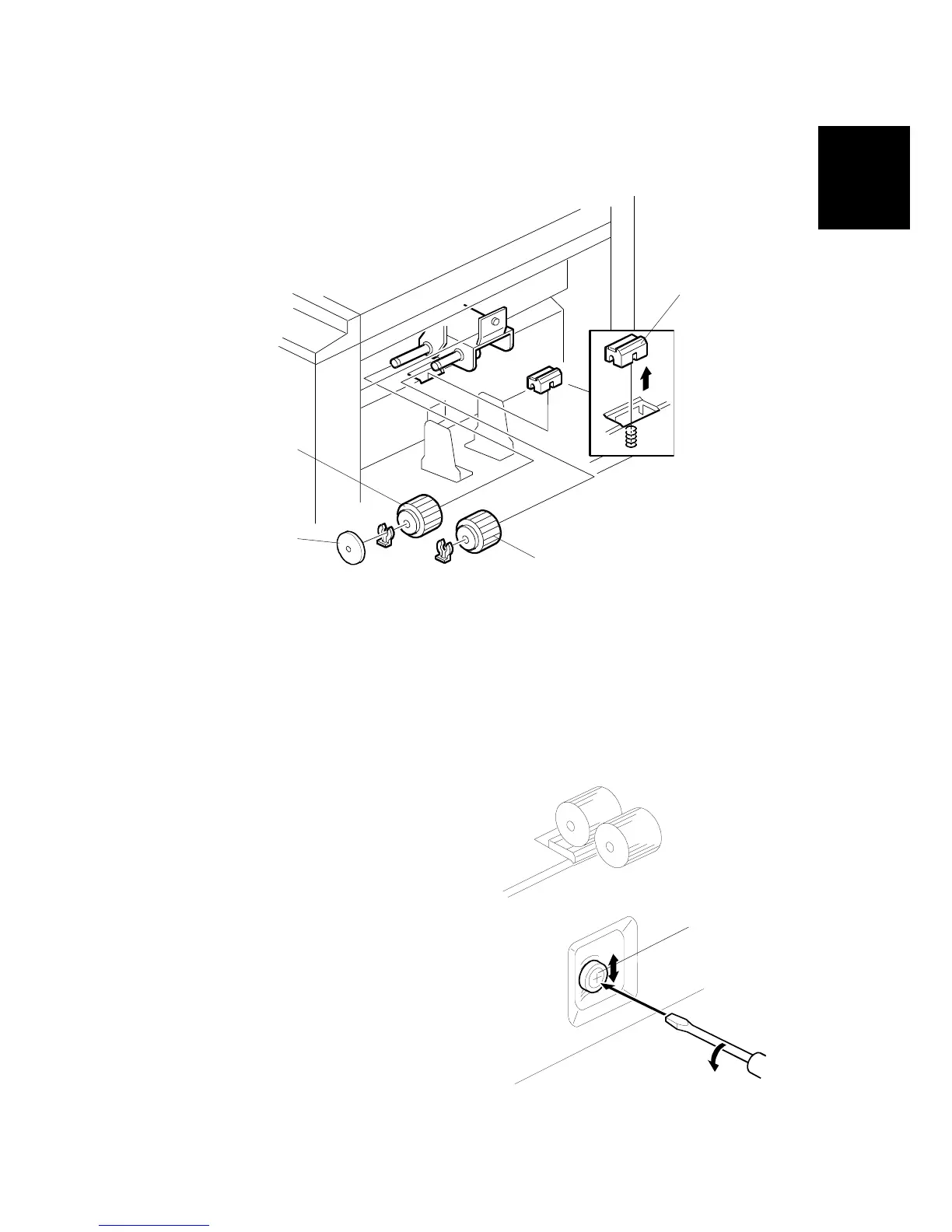

3.6.1 PICK-UP ROLLER / PAPER FEED ROLLER / FRICTION PAD
•
Lower the paper table.
[A]: Pick-up roller (
x 1)
[B]: Paper guide
[C]: Feed roller (
x 1)
[D]: Friction pad
3.6.2 PAPER SEPARATION PRESSURE ADJUSTMENT
Purpose: To ensure that the friction pad
exerts sufficient pressure for smooth
printing paper separation.
Default: The next position to the top.
Adjust the paper separation pressure by
loosening and moving the adjusting screw
[A] up or down.
Moving up the screw
⇒
Increases the
paper separation pressure
Moving down the screw
⇒
Decreases the
paper separation pressure
Tighten the screw after the adjustment.
C238R024.WMF
C238R031.WMF
[A]
[B]
[C]
[D]
[A]
