PAPER FEED
C231/C237/C238 3-16 SM

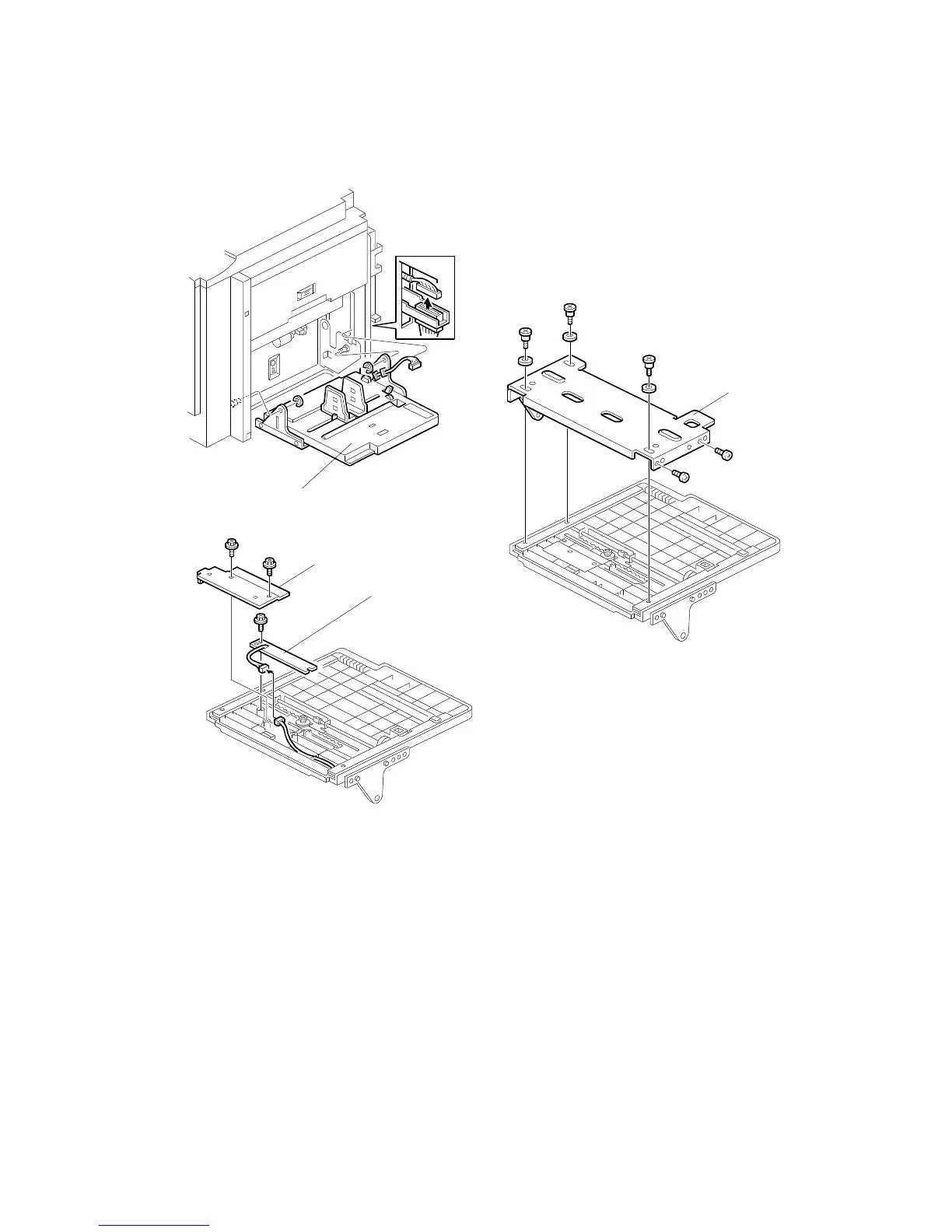

3.6.3 PAPER WIDTH DETECTION BOARD
•
Lower the paper table.
[A]: Paper table (

x 1,

x 2)
[B]: Table cover (

x 5, 3 washers)
[C]: Sensor cover (

x 2)
[D]: Paper width detection board (

x 1,

x 1)
C238R018.WMF
C238R019.WMF
C238R020.WMF
[A]
[B]
[C]
[D]
