MECHANISM OVERVIEW
C231/C237/C238 6-6 SM

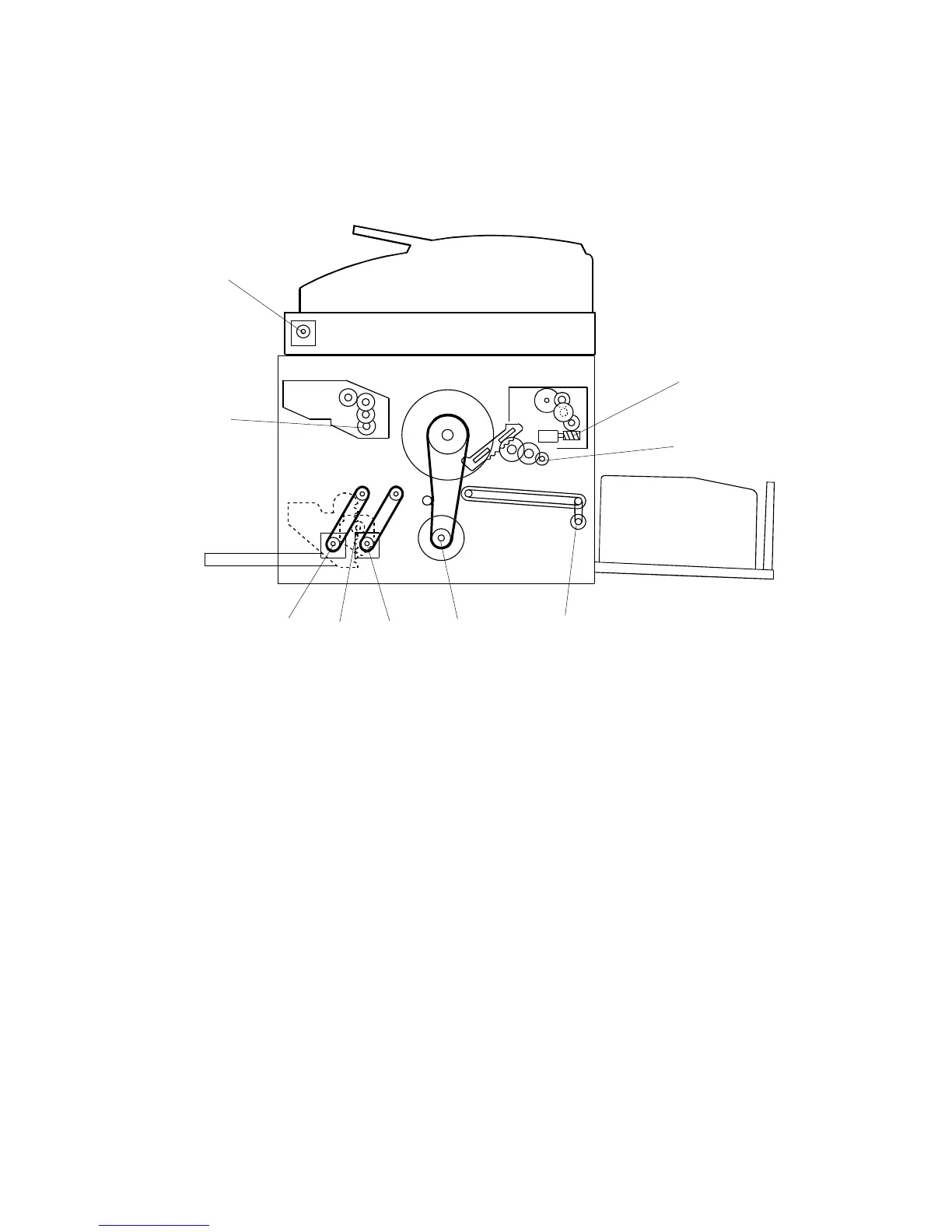

6.1.3 DRIVE LAYOUT
1. Pressure plate motor
2. Clamper motor
3. Paper delivery motor
4. Main motor
5. Registration motor
6. Table motor
7. Paper feed motor
8. Master feed motor
9. Scanner motor
C238D002.WMF
1
2
45367
8
9
