MAIN DRIVE
C267 3-62 SM

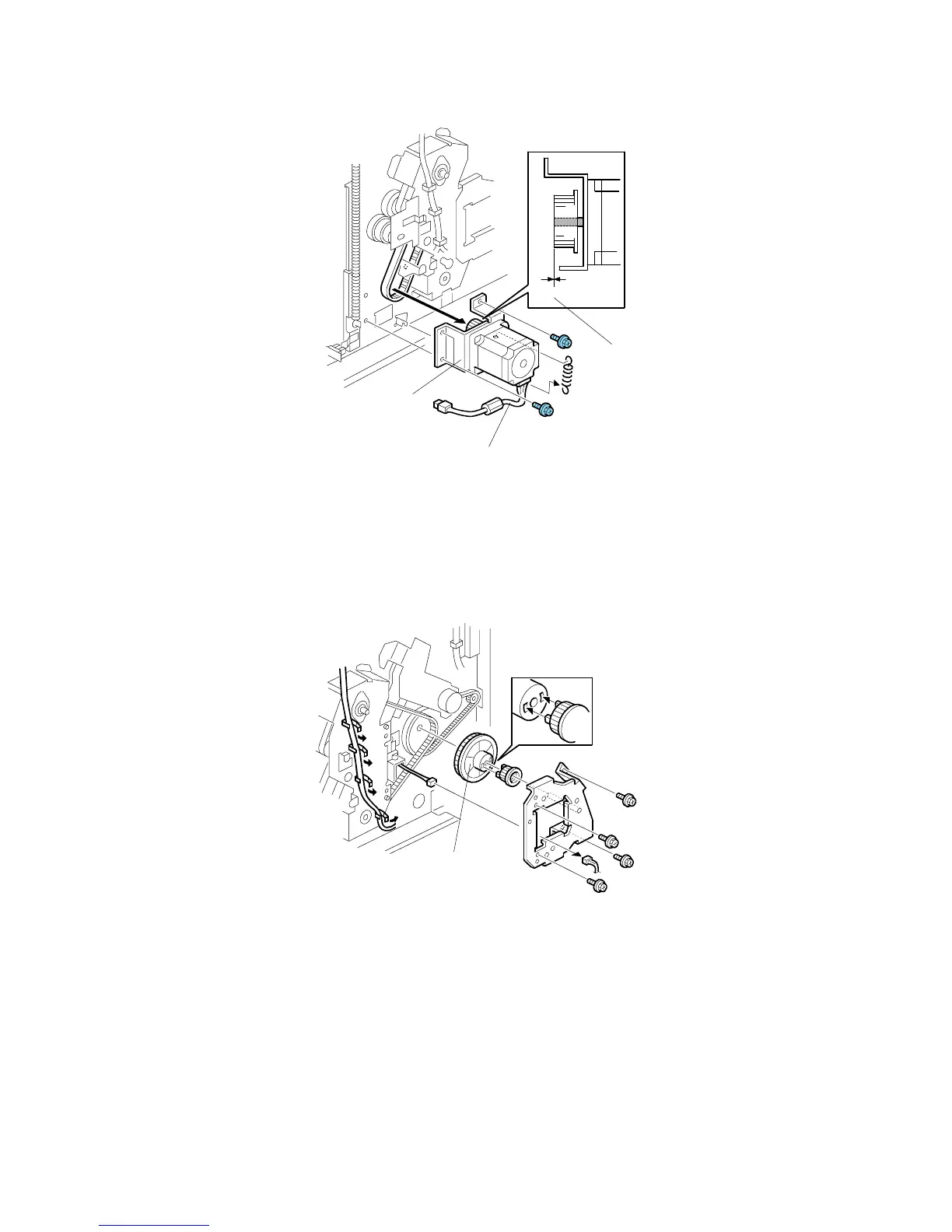

[C]: Registration motor (spring, x3, belt)
NOTE:
1) The side of the motor with the harness [D] should face downward, as
shown in the diagram.
2) The flange of the gear should face towards the motor, as shown in the
diagram.
[E]: Gear ( x 1, x 4, = x 4)
C267R021.WMF
C267R025.WMF
[E]
[C]
0±0.5 mm
[D]
To Next Page
