MAIN DRIVE
SM 3-63 C267
C267 Service
Manual
z Paper feed clutch (3.7.2)
[F]: Drive bracket ( x 8)
[G]: Main motor (= x 1,  x 4)
NOTE: Adjust the main drive timing belt ( 3.11.2) after installing the new main
motor.

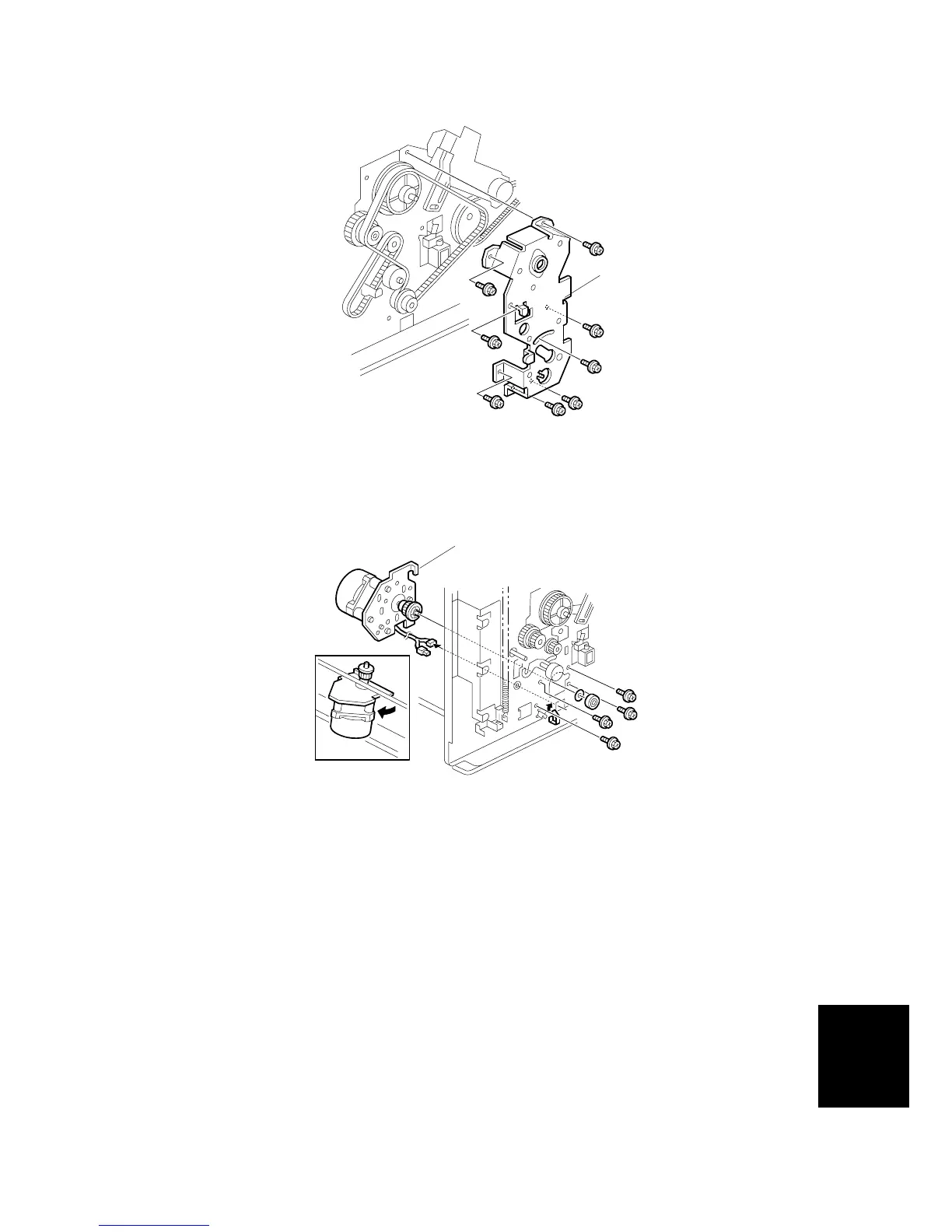

C267R027.WMF
C267R032.WMF
[F]
[G]
