RuggedCom RuggedBackbone RX1500 User Manual

9. SNMP
ROX™ v2.2 User Guide 104 RuggedBackbone™ RX1500
9.2.2. Create an SNMP Community

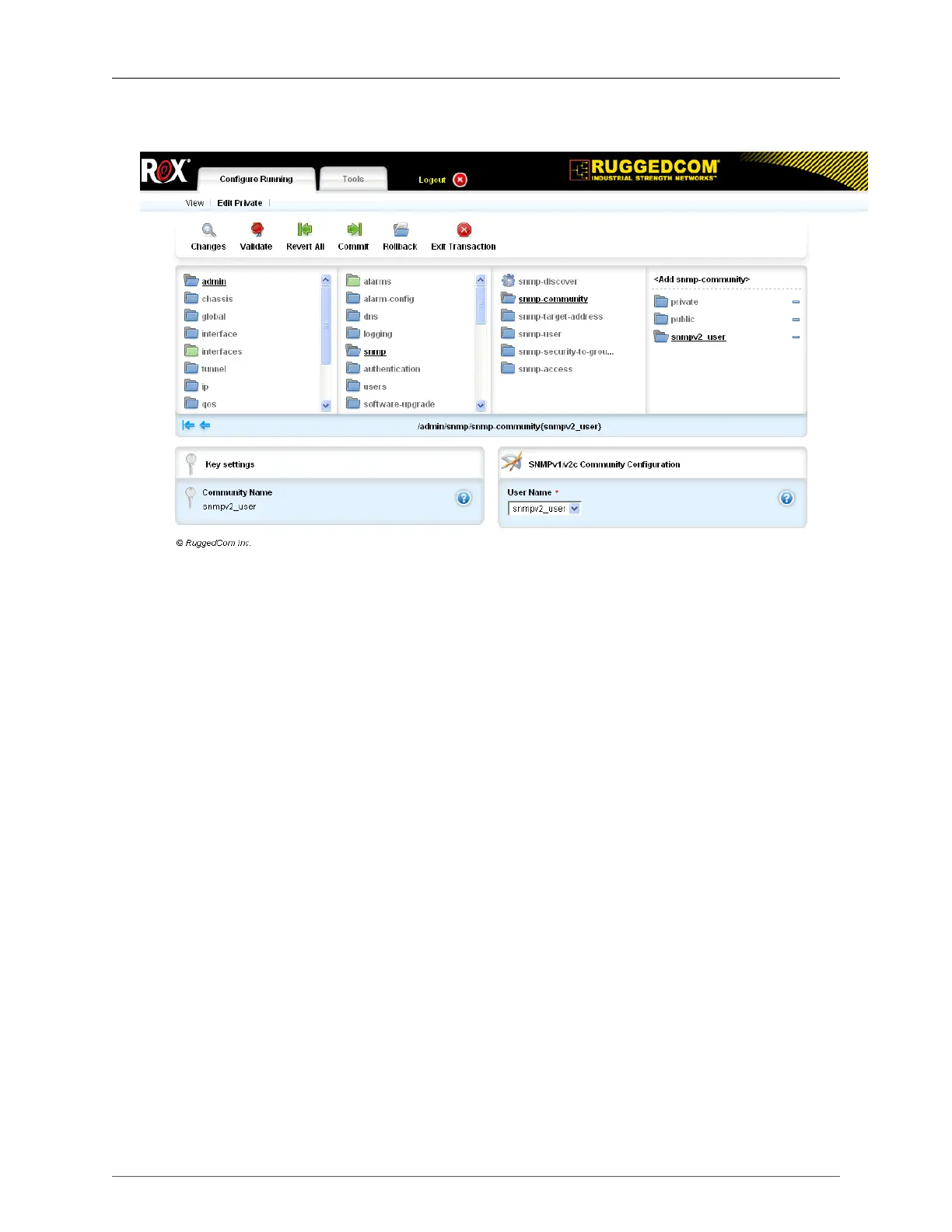

Figure 9.2. Creating an SNMP Community
Procedure 9.2. Creating an SNMP Community
1. Navigate to admin/snmp/snmp-community.
2. Click on <Add snmp-community>. The Key settings form appears.
3. In the Community Name field, enter snmpv2_user and click Add. The SNMPv1/v2c Community
Configuration form appears.
4. In the User Name field, select snmpv2_user.
5. Click Commit.

RuggedCom RuggedBackbone RX1500 Specifications

General

Power Supply	Dual redundant, hot-swappable power supplies
Switching Capacity	Up to 128 Gbps
Operating Temperature Range	-40°C to +85°C
Mounting	DIN rail or panel mount
Certifications	IEEE 1613, IEC 61850-3, EN 50155, EN 50121-4
Power Input	24/48VDC or 110/220 VAC
Enclosure	Rugged metal
Type	Modular Layer 3 switch
