RuggedCom RuggedBackbone RX1500 User Manual

30. Network Discovery
ROX™ v2.2 User Guide 351 RuggedBackbone™ RX1500

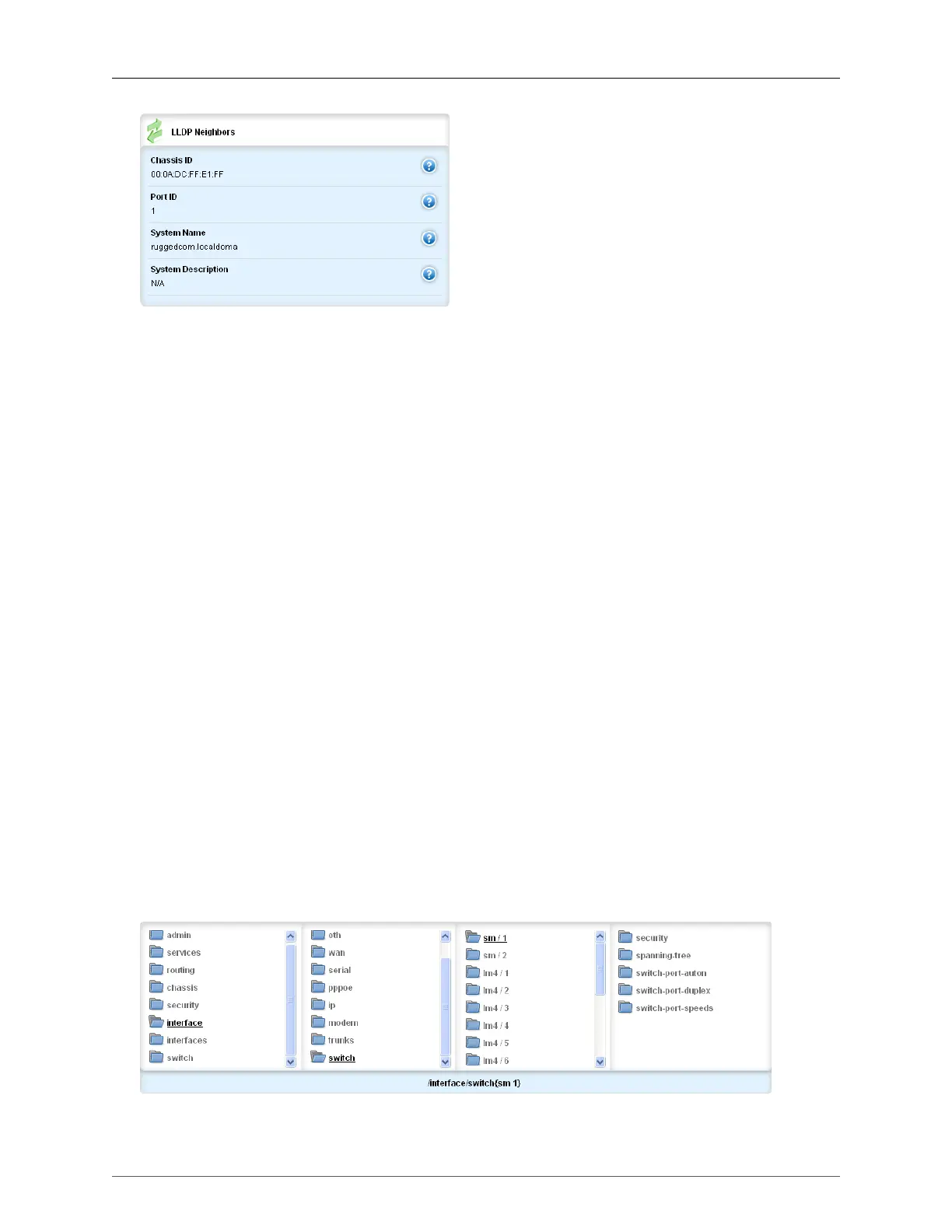

Figure 30.9. LLDP Neighbors form
The path to the LLDP Neighbors form is switch/net-discovery/lldp/port-lldp-neighbors and then clicking
on one of the linked submenus (for example, sm/1).
slot
Synopsis: string - the keyword { --- }
Synopsis: string - one of the following keywords { main, pm2, pm1 }
Synopsis: string - one of the following keywords { lm6, lm5, lm4, lm3, lm2, lm1, sm }
Synopsis: string - one of the following keywords { em, cm }
Synopsis: string - the keyword { trnk }
The slot of the module that contains this port.
Port
Synopsis: integer
The port number as seen on the front plate silkscreen of the module.
Chassis ID
Synopsis: Ethernet MAC address in colon-separated hexadecimal notation
Chassis ID information received from a remote LLDP agent.
Port ID
Synopsis: Ethernet MAC address in colon-separated hexadecimal notation
Port ID (MAC) information received from a remote LLDP agent.
System Name
Synopsis: A string
System name information received from a remote LLDP agent
System Description
Synopsis: A string
System descriptor information received from a remote LLDP agent.
Figure 30.10. LLDP submenu

RuggedCom RuggedBackbone RX1500 Specifications

General

Power Supply	Dual redundant, hot-swappable power supplies
Switching Capacity	Up to 128 Gbps
Operating Temperature Range	-40°C to +85°C
Mounting	DIN rail or panel mount
Certifications	IEEE 1613, IEC 61850-3, EN 50155, EN 50121-4
Power Input	24/48VDC or 110/220 VAC
Enclosure	Rugged metal
Type	Modular Layer 3 switch
