32. Layer 3 Switching
ROX™ v2.2 User Guide 362 RuggedBackbone™ RX1500
32.2. Configuring Layer 3 Switching
To display the Layer 3 Switching menu, navigate to switch/layer3-switching.

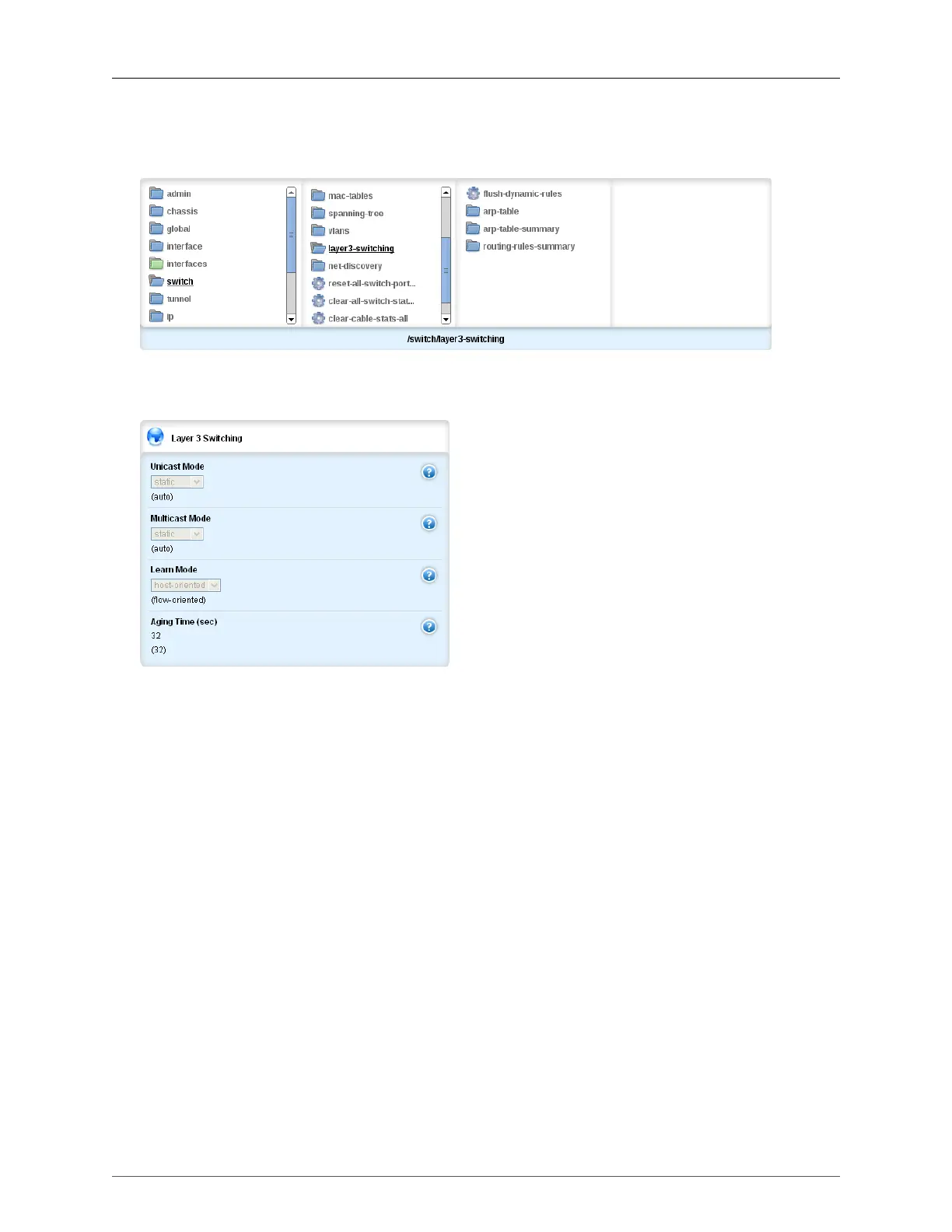

Figure 32.5. Layer 3 Switching menu
The Layer 3 Switching form on the menu page displays the configured Layer 3 switching settings.
Figure 32.6. Layer 3 Switching form
To configure Layer 3 switching, do the following:
• set the Layer 3 switching settings. See Section 32.2.1, “Configuring Layer 3 Switching Settings”.
• create static ARP table entries. See Section 32.2.2, “Creating Static ARP Table Entries”.
After configuring Layer 3 switching, you can do the following:
• view static and dynamic ARP table entries. See Section 32.2.3, “Viewing Static and Dynamic ARP
Table Entries”.
• view the routing rules summary. See Section 32.2.4, “Viewing Routing Rules”.
• flush dynamic hardware routing rules. See Section 32.2.5, “Flushing Dynamic Hardware Routing
Rules”.

RuggedCom RuggedBackbone RX1500 Specifications

General

Power Supply	Dual redundant, hot-swappable power supplies
Switching Capacity	Up to 128 Gbps
Operating Temperature Range	-40°C to +85°C
Mounting	DIN rail or panel mount
Certifications	IEEE 1613, IEC 61850-3, EN 50155, EN 50121-4
Power Input	24/48VDC or 110/220 VAC
Enclosure	Rugged metal
Type	Modular Layer 3 switch
