33. Tunnelling
ROX™ v2.2 User Guide 381 RuggedBackbone™ RX1500
Type.

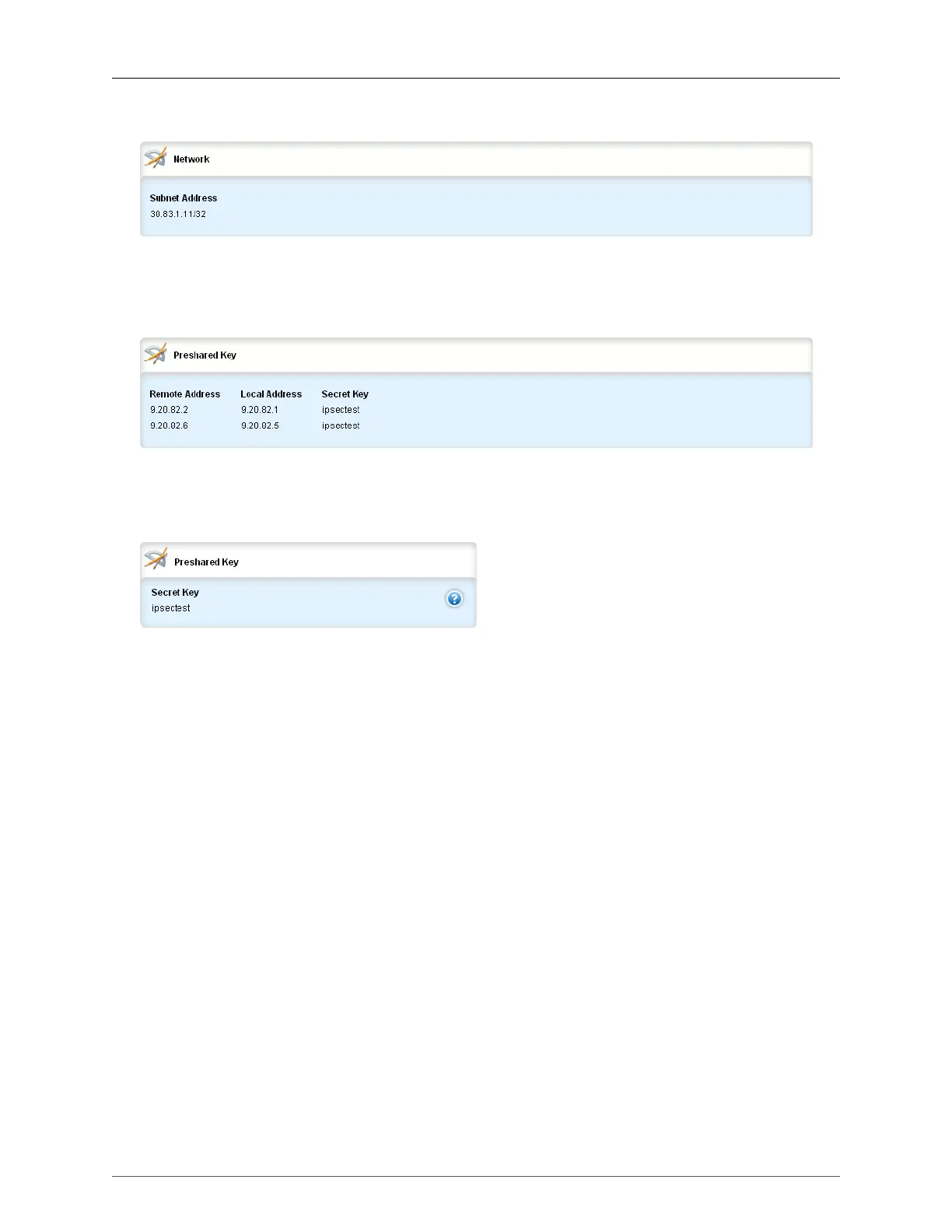

Figure 33.20. Network table
The Network table displays a list of subnet addresses.
If data is configured, the path to the Preshared Key table will be tunnel/ipsec/preshared-key.
Figure 33.21. Preshared Key table
If data is configured, the path to the Preshared Key form will be tunnel/ipsec/preshared-key/{line
module}.
Figure 33.22. Preshared Key form
Remote Address
Synopsis: string - the keyword { any }
Synopsis: IPv4 address in dotted-decimal notation
Synopsis: A string conforming to: "[^ ]+"
The remote address.
Local Address
Synopsis: string - the keyword { any }
Synopsis: IPv4 address in dotted-decimal notation
Synopsis: A string conforming to: "[^ ]+"
The local address.
Secret Key
Synopsis: "AES CFB128"-encrypted string
The pre-shared key.
