RuggedCom RuggedBackbone RX1500

33. Tunnelling
ROX™ v2.2 User Guide 388 RuggedBackbone™ RX1500

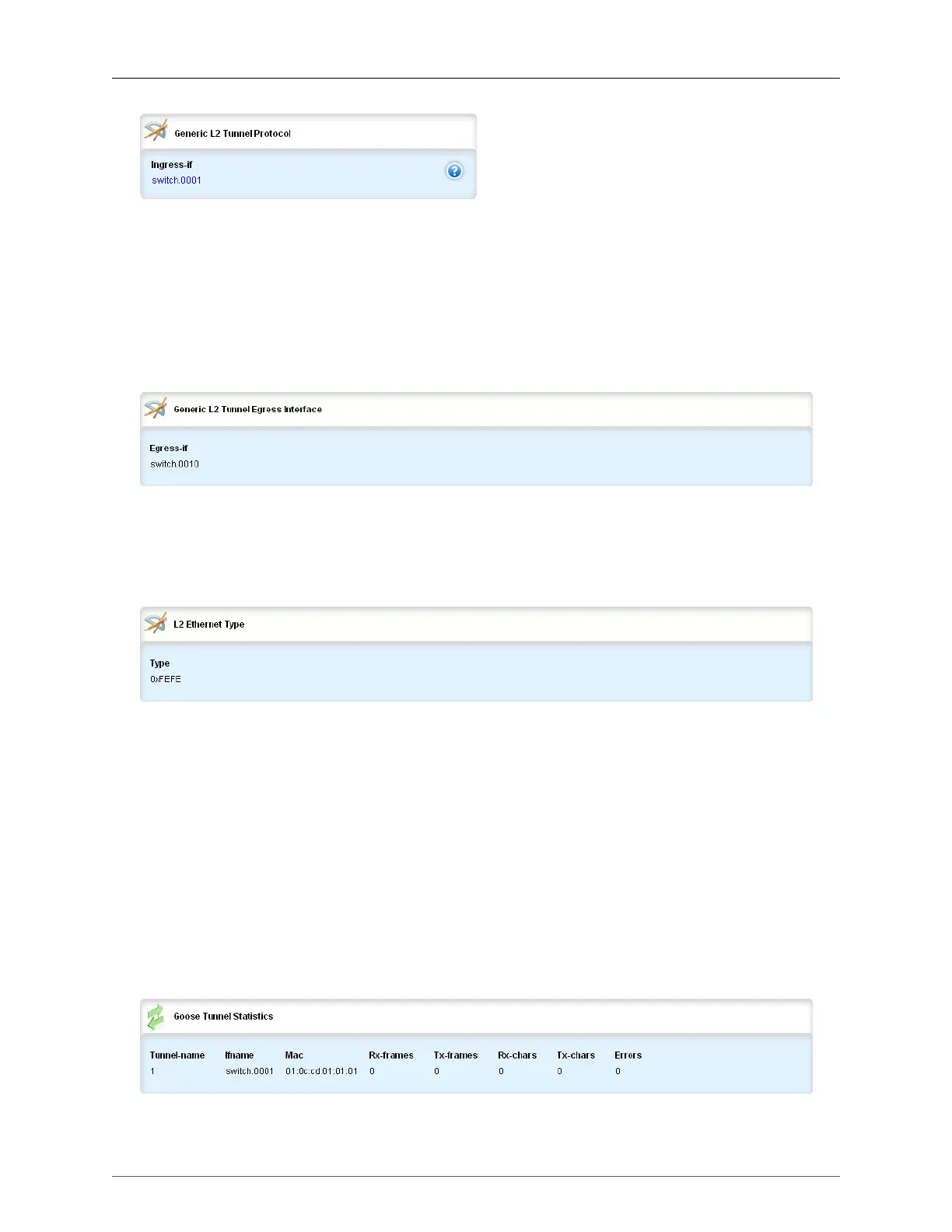

Figure 33.34. Generic L2 Tunnel Protocol form
name
Synopsis: A string
Description of goose tunnel
ingress-if
Synopsis: A string
The interface to listen on for Ethernet type frames
Figure 33.35. Generic L2 Tunnel Egress Interface table
egress-if
Synopsis: A string
Egress interface for Ethernet type frames
Figure 33.36. L2 Ethernet Type table
type
Synopsis: string - the keyword { iso }
Synopsis: A string conforming to: "(0x[0-9A-Fa-f]{4})"
Ethernet type to be forwarded (ie. 0xFEFE)
33.3.3.3. Status
The forms and tables in this section are located under tunnel/l2tunneld/status/. The submenus Goose,
Generic and Round-Trip-Time are accessible from the status menu.
33.3.3.3.1. Status Goose
The forms and tables in this section are located under tunnel/l2tunneld/status/goose.
Figure 33.37. Goose Tunnel Statistics table
