RuggedCom RuggedBackbone RX1500 User Manual

9. SNMP
ROX™ v2.2 User Guide 105 RuggedBackbone™ RX1500
9.2.3. Map the Community to a Security Group

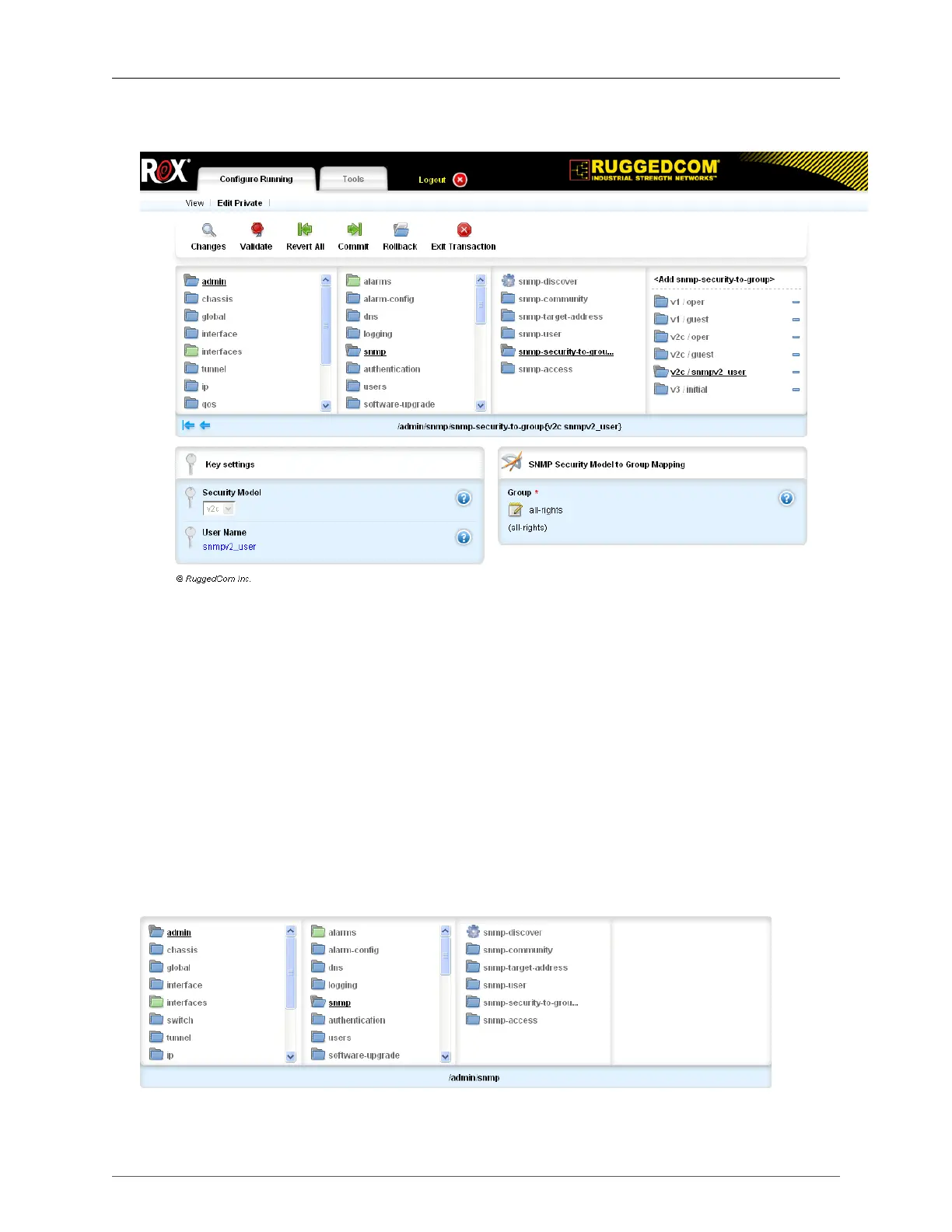

Figure 9.3. Mapping the Community to a Security Group
Procedure 9.3. Mapping the Community to a Security Group
1. Navigate to admin/snmp/security-to-group.
2. Click on <Add snmp-security-to-group>. The Key settings form appears.
3. In the Security Model field, select v2c.
4. In the User Name field, select snmpv2_user and click Add. The SNMP Security Model to Group
Mapping form appears.
5. all-rights is the default in the Group field. Leave it as the default.
6. Click Commit.
7. Click Exit Transaction.
9.3. SNMP menu
Figure 9.4. SNMP menu

RuggedCom RuggedBackbone RX1500 Specifications

General

Power Supply	Dual redundant, hot-swappable power supplies
Switching Capacity	Up to 128 Gbps
Operating Temperature Range	-40°C to +85°C
Mounting	DIN rail or panel mount
Certifications	IEEE 1613, IEC 61850-3, EN 50155, EN 50121-4
Power Input	24/48VDC or 110/220 VAC
Enclosure	Rugged metal
Type	Modular Layer 3 switch
