RuggedCom RuggedBackbone RX1500 User Manual

36. Routing Status
ROX™ v2.2 User Guide 425 RuggedBackbone™ RX1500
total
Synopsis: unsigned integer
The total heap allocated (in bytes).
used
Synopsis: unsigned integer
The number of used ordinary blocks (in bytes).
free
Synopsis: unsigned integer
The number of free ordinary blocks (in bytes).

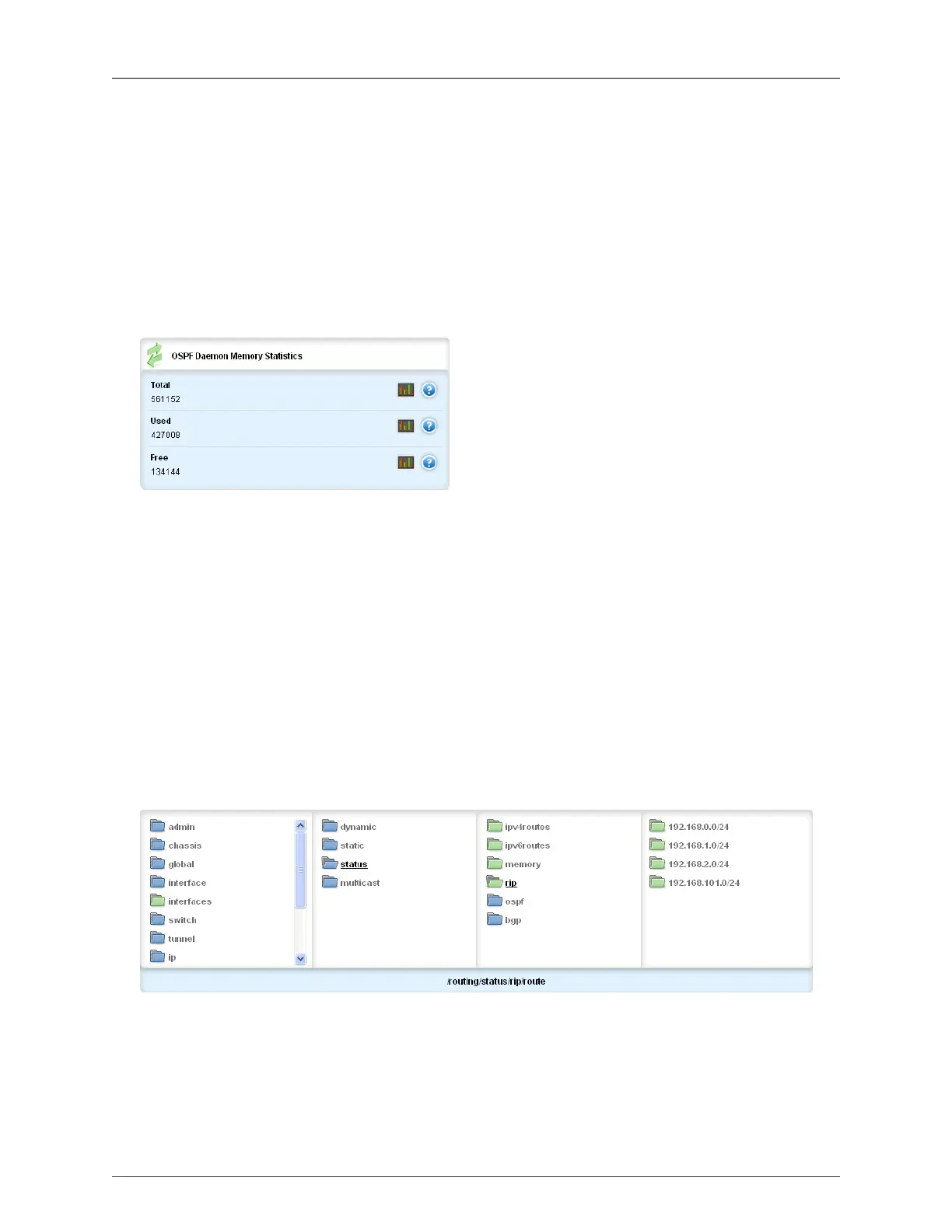

Figure 36.7. OSPF Daemon Memory Statistics Form
total
Synopsis: unsigned integer
The total heap allocated (in bytes).
used
Synopsis: unsigned integer
The number of used ordinary blocks (in bytes).
free
Synopsis: unsigned integer
The number of free ordinary blocks (in bytes).
36.4. RIP
Figure 36.8. RIP Menu
The RIP status tables and forms are accessible from the RIP menu at routing/status/rip and routing/
status/rip/{address}.

RuggedCom RuggedBackbone RX1500 Specifications

General

Power Supply	Dual redundant, hot-swappable power supplies
Switching Capacity	Up to 128 Gbps
Operating Temperature Range	-40°C to +85°C
Mounting	DIN rail or panel mount
Certifications	IEEE 1613, IEC 61850-3, EN 50155, EN 50121-4
Power Input	24/48VDC or 110/220 VAC
Enclosure	Rugged metal
Type	Modular Layer 3 switch
