39. Traffic Control
ROX™ v2.2 User Guide 461 RuggedBackbone™ RX1500

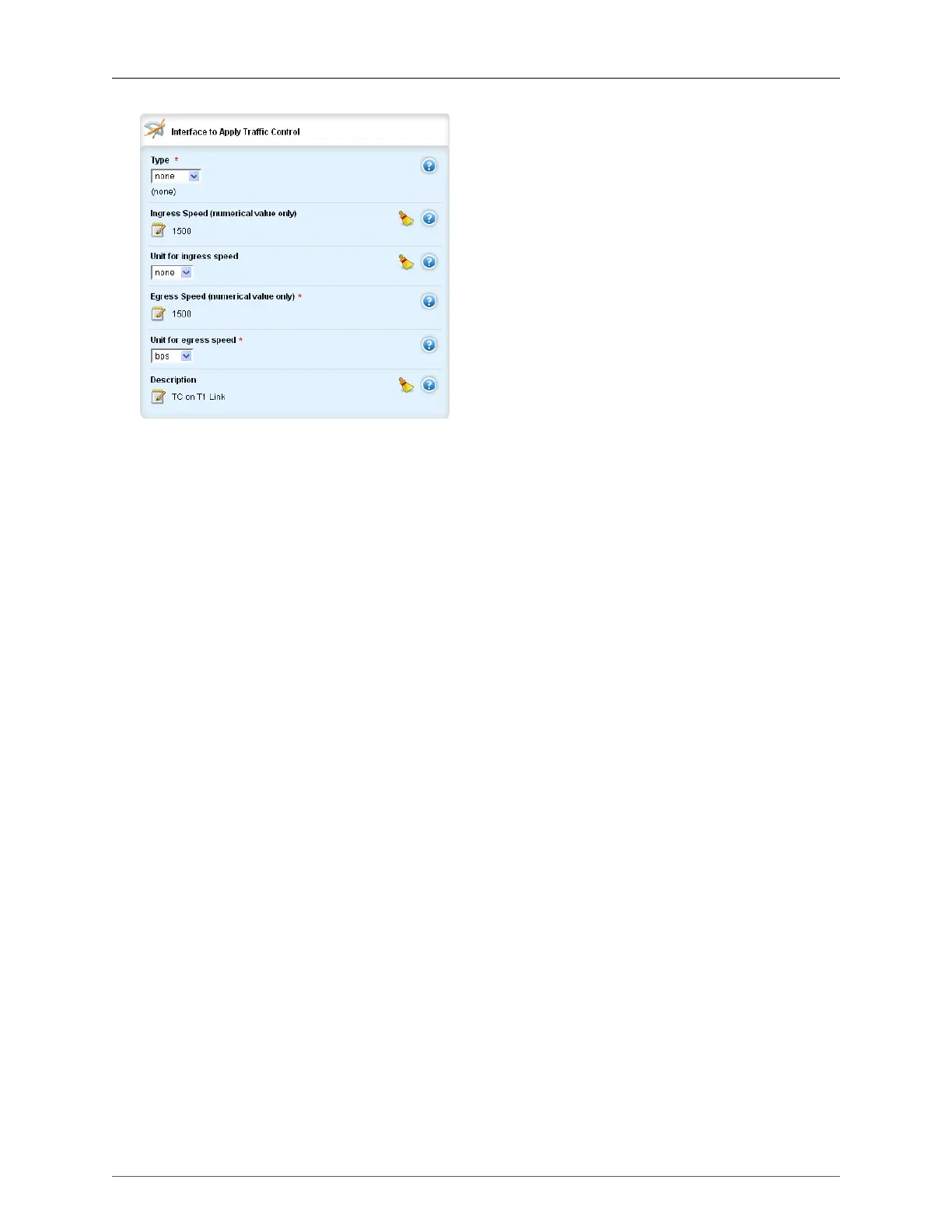

Figure 39.5. Interface to Apply Traffic Control form
To display this form, navigate to qos/traffic-control/basic-configuration/tcinterfaces/{interface}.
interface
Synopsis: string
An interface to which traffic shaping will apply
Type
Synopsis: string - one of the following keywords { none, external, internal }
Default: none
(optional) 'external' (facing toward the Internet) or 'internal'
(facing toward a local network). 'external'
causes the traffic generated by each unique
source IP address to be treated as a single
flow. 'internal' causes the traffic generated by
each unique destination IP address to be treated
as a single flow. , internal interfaces seldom
benefit from simple traffic shaping. Default: none.
Ingress Speed (numerical value only)
Synopsis: string
(optional) The incoming bandwidth of this interface. If incoming
traffic exceeds the given rate, received packets
are dropped randomly. When unspecified, maximum
speed is assumed. Specify only the number here.
The unit (kbps, mbps) is specified in In-unit.
Unit for ingress speed
Synopsis: string - one of the following keywords { none, bps, mbps, mbit, kbps, kbit }
Specifies the unit when an incoming bandwidth is specified
Egress Speed (numerical value only)
Synopsis: unsigned short integer
