RuggedCom RuggedBackbone RX1500 User Manual

23. WAN
ROX™ v2.2 User Guide 255 RuggedBackbone™ RX1500
23.3.2. Protocol-related Statistics
23.3.2.1. PPP Statistics Summary

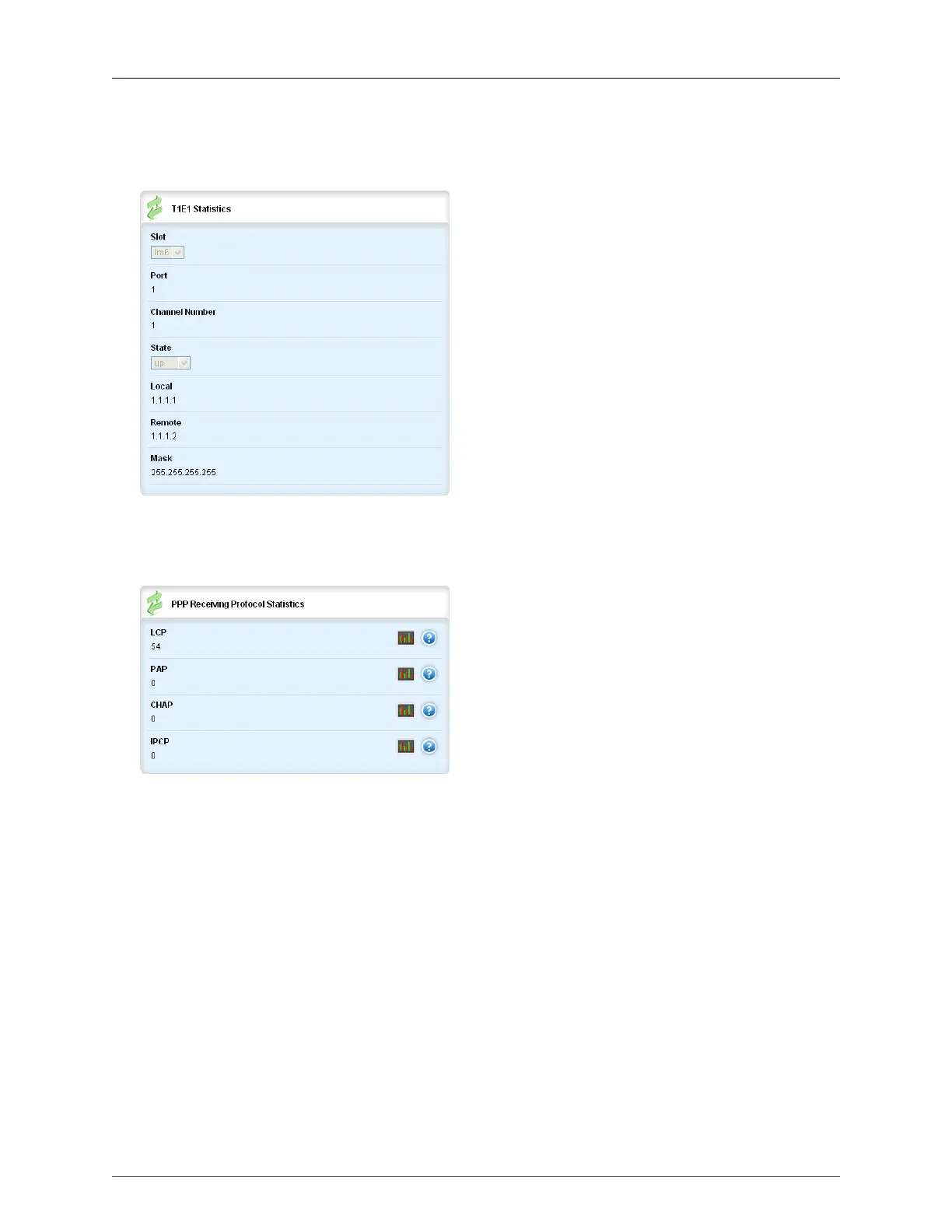

Figure 23.28. T1E1 Statistics form
The T1E1 Statistics form displays PPP statistics and physical statistics. The path to this form is
interfaces/wan/t1e1/{line module}.
Figure 23.29. PPP Receiving Protocol Statistics form
The PPP Receiving Protocol Statistics form displays PPP receiving statistics. The path to this form is
interfaces/wan/t1e1/{line module}/ppp-stats.
LCP
Synopsis: unsigned integer
The number of LCP (Link Control Protocol) packets.
PAP
Synopsis: unsigned integer
The number of PAP (Password Authentication Protocol) packets.
CHAP
Synopsis: unsigned integer
The number of CHAP (Challenge Handshake Authentication Protocol) packets.
IPCP
Synopsis: unsigned integer

RuggedCom RuggedBackbone RX1500 Specifications

General

Power Supply	Dual redundant, hot-swappable power supplies
Switching Capacity	Up to 128 Gbps
Operating Temperature Range	-40°C to +85°C
Mounting	DIN rail or panel mount
Certifications	IEEE 1613, IEC 61850-3, EN 50155, EN 50121-4
Power Input	24/48VDC or 110/220 VAC
Enclosure	Rugged metal
Type	Modular Layer 3 switch
