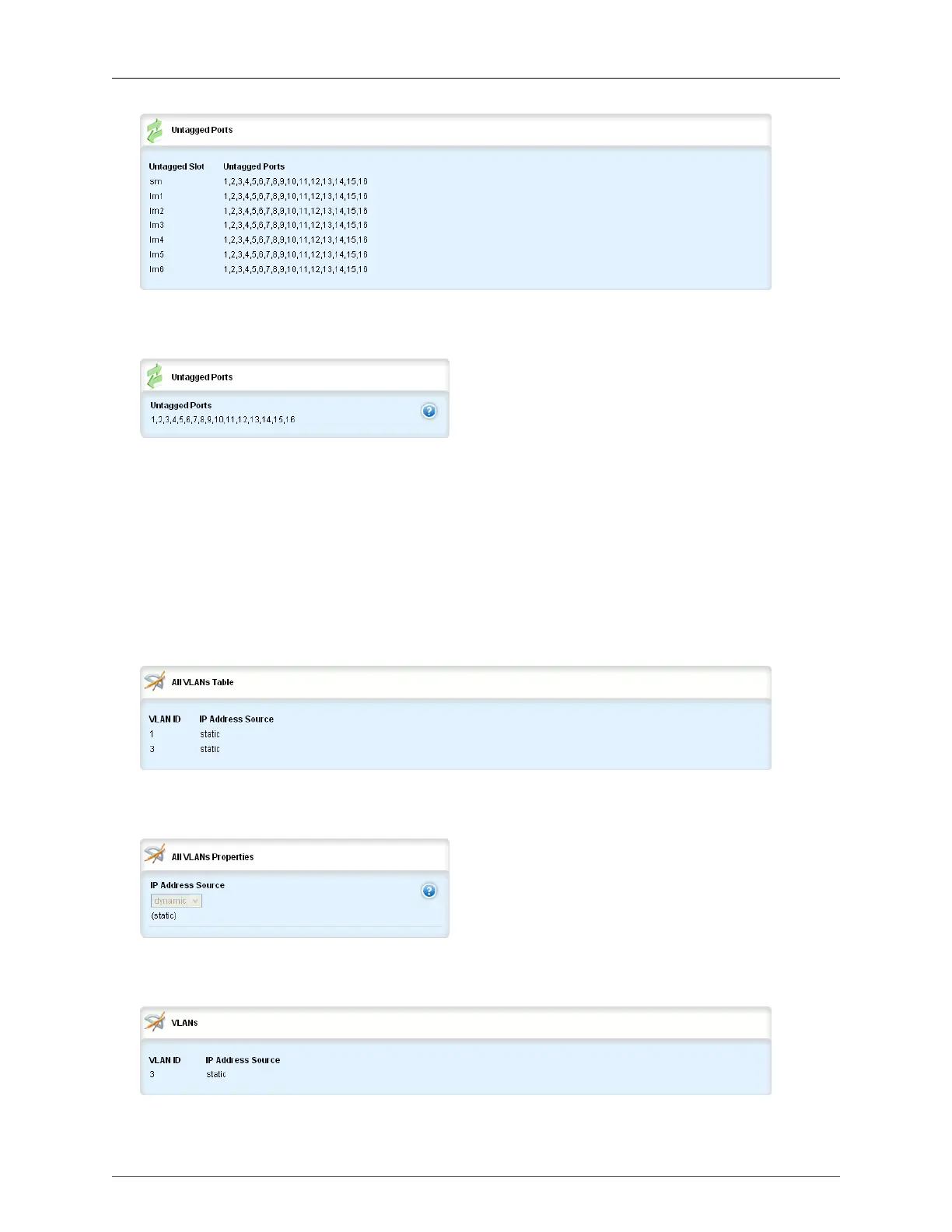

Figure 29.14. Untagged Ports table
To display the Tagged Ports table, navigate to switch/vlans/vlan-summary/{number}/untagged-ports.
Figure 29.15. Untagged Ports form
To display the Tagged Ports form, navigate to switch/vlans/vlan-summary/{number}/untagged-ports/
{line module}.
Untagged Slot
Synopsis: string - one of the following keywords { lm6, lm5, lm4, lm3, lm2, lm1, sm }
The name of the module location provided on the silkscreen across the top of the device.
Untagged Ports
Synopsis: A string
The selected ports on the module installed in the indicated slot.
Figure 29.16. All VLANs table
To display the All VLANs table, navigate to switch/vlans/all-vlans.
Figure 29.17. All VLANs Properties form
To display the All VLANs Properties form, navigate to switch/vlans/all-vlans/{number).
Figure 29.18. VLANs table

RuggedCom RuggedBackbone RX1500 Specifications

General

Power Supply	Dual redundant, hot-swappable power supplies
Switching Capacity	Up to 128 Gbps
Operating Temperature Range	-40°C to +85°C
Mounting	DIN rail or panel mount
Certifications	IEEE 1613, IEC 61850-3, EN 50155, EN 50121-4
Power Input	24/48VDC or 110/220 VAC
Enclosure	Rugged metal
Type	Modular Layer 3 switch
