23. WAN
ROX™ v2.2 User Guide 259 RuggedBackbone™ RX1500
App. didn't respond to the triggered IRQ within the given timeout period.
Signalling Format Error
Synopsis: unsigned integer
Discarded In-channel Signalling frames due to a format error.
Invalid Send Sequence
Synopsis: unsigned integer
In-channel frames received with invalid Send Seq. Numbers received.
Invalid Receive Sequence
Synopsis: unsigned integer
In-channel frames received with invalid Receive Seq. Numbers received.
Unsolicited Response
Synopsis: unsigned integer
The number of unsolicited responses from the Access Node.
N391
Synopsis: unsigned integer
Timeouts on the T391 timer.
Consecutive T391
Synopsis: unsigned integer
Consecutive timeouts on the T391 timer.
N392 Error Threshold
Synopsis: unsigned integer
The number of times that the N392 error threshold was reached during N393 monitored events.

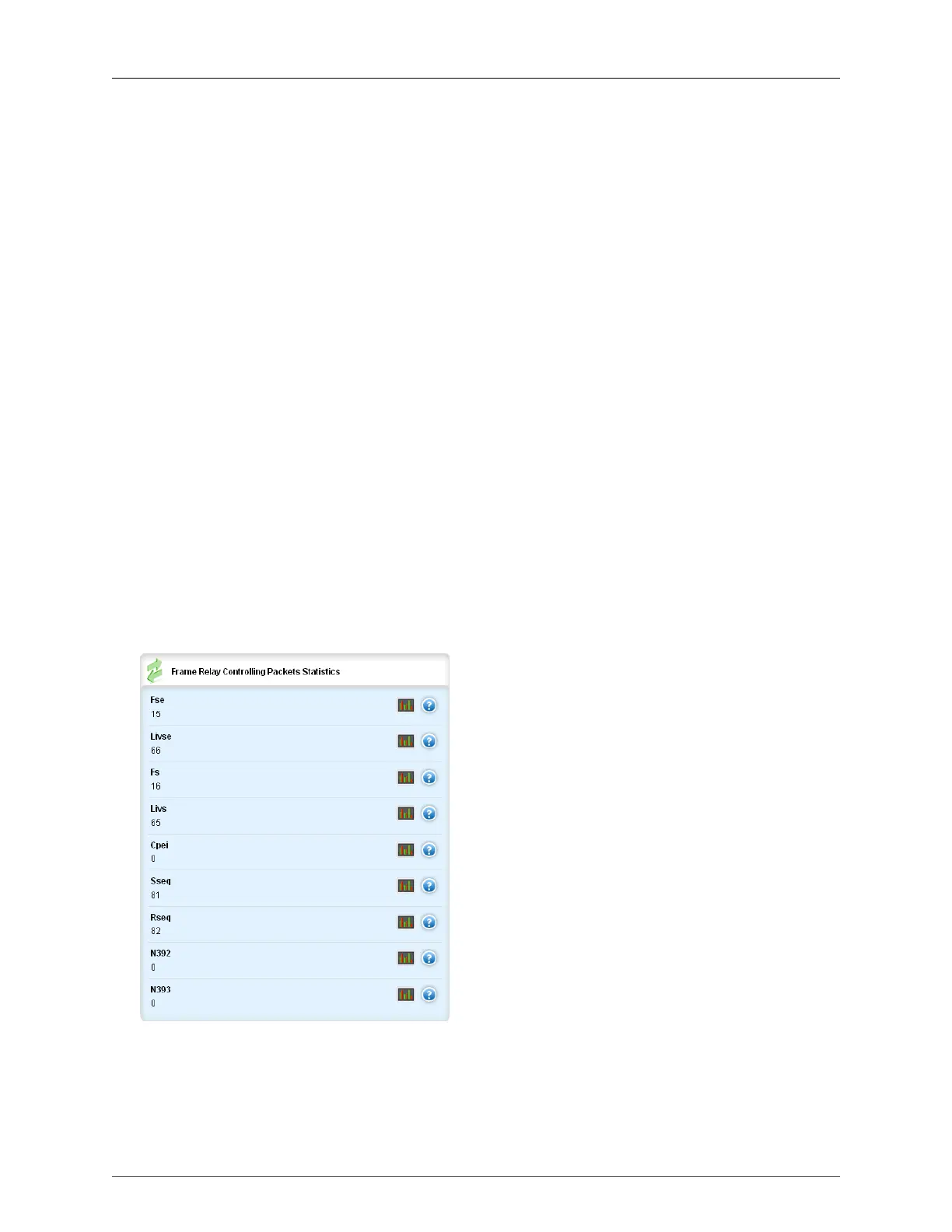

Figure 23.33. Frame Relay Controlling Packets Statistics form
The path to the Frame Relay Controlling Packets Statistics form and the Frame Relay Receiving
Statistics form is interfaces/wan/t1e1/{line module}/fr-stats.
