RuggedCom RuggedBackbone RX1500 User Manual

23. WAN
ROX™ v2.2 User Guide 238 RuggedBackbone™ RX1500
• When using a single physical Frame Relay interface and connecting to the RX1500 with multiple
DLCIs with mixed Cisco and IETF encapsulations, enable IETF encapsulation as follows. The text
in [square brackets] indicates the type of encapsulation set by the command; do not type the text
in [square brackets]:
Cisco(config)#interface serial0/0
Cisco(config-if)#encap frame
Cisco(config-if)#frame map ip ipaddress dlci{n} broadcast
[Cisco]
Cisco(config-if)#frame map ip ipaddress dlci{n} ietf
broadcast [IETF]
.
.
.
Cisco(config-if)#frame map ip ipaddress dlci{n} ietf
broadcast [IETF]
Where ipaddress is the remote IP address, and dlci{n} is a Data Link Connection Identifier
number within the range of 16 to 1007.
23.2. WAN Configuration

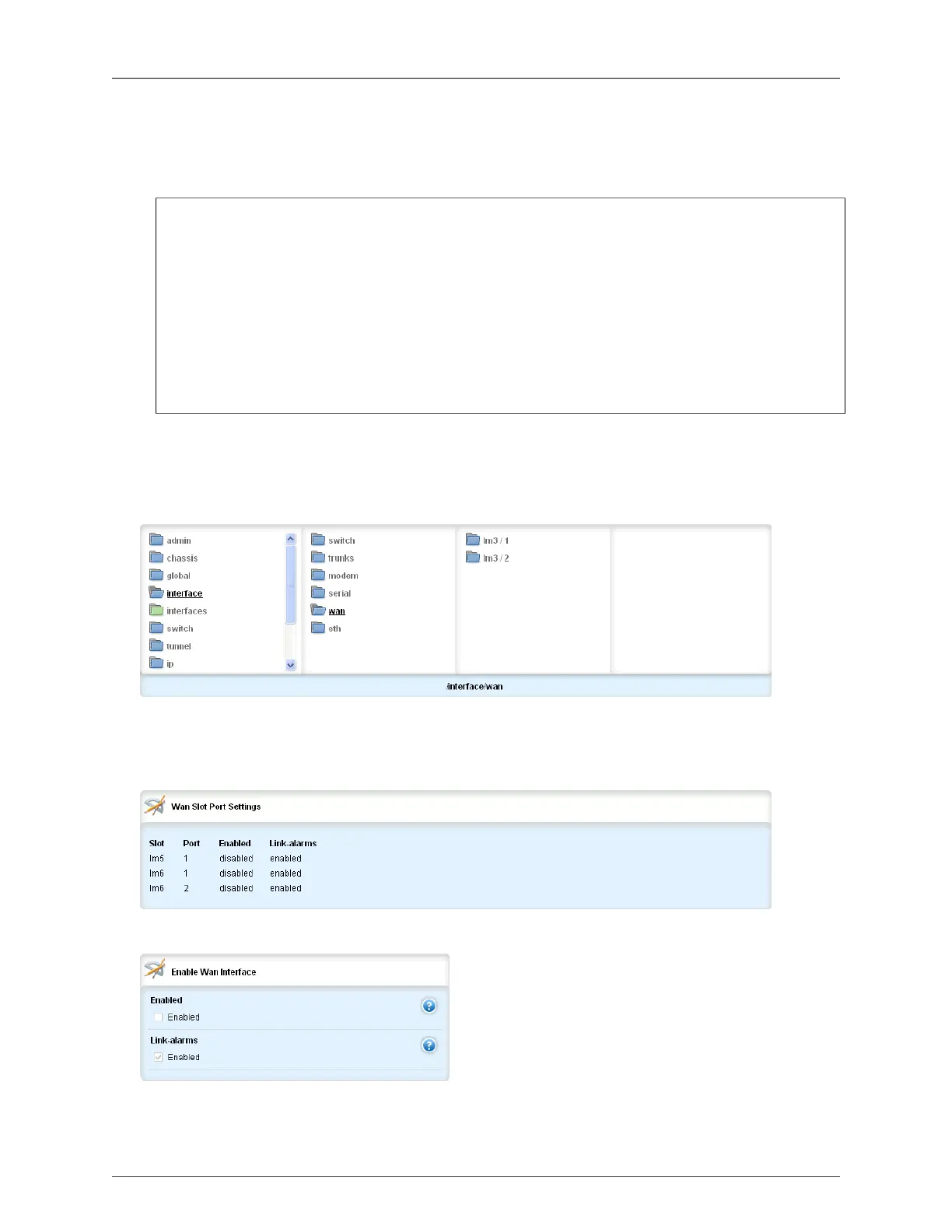

Figure 23.1. WAN menu
To display the WAN menu, navigate to interface/wan. The WAN Slot Port Settings table appears on
the same page as the WAN menu.
Figure 23.2. Interface WAN Slot Port Settings table
Figure 23.3. Enable WAN Interface form

RuggedCom RuggedBackbone RX1500 Specifications

General

Power Supply	Dual redundant, hot-swappable power supplies
Switching Capacity	Up to 128 Gbps
Operating Temperature Range	-40°C to +85°C
Mounting	DIN rail or panel mount
Certifications	IEEE 1613, IEC 61850-3, EN 50155, EN 50121-4
Power Input	24/48VDC or 110/220 VAC
Enclosure	Rugged metal
Type	Modular Layer 3 switch
