RuggedCom RuggedBackbone RX1500 User Manual

40. VRRP
ROX™ v2.2 User Guide 480 RuggedBackbone™ RX1500

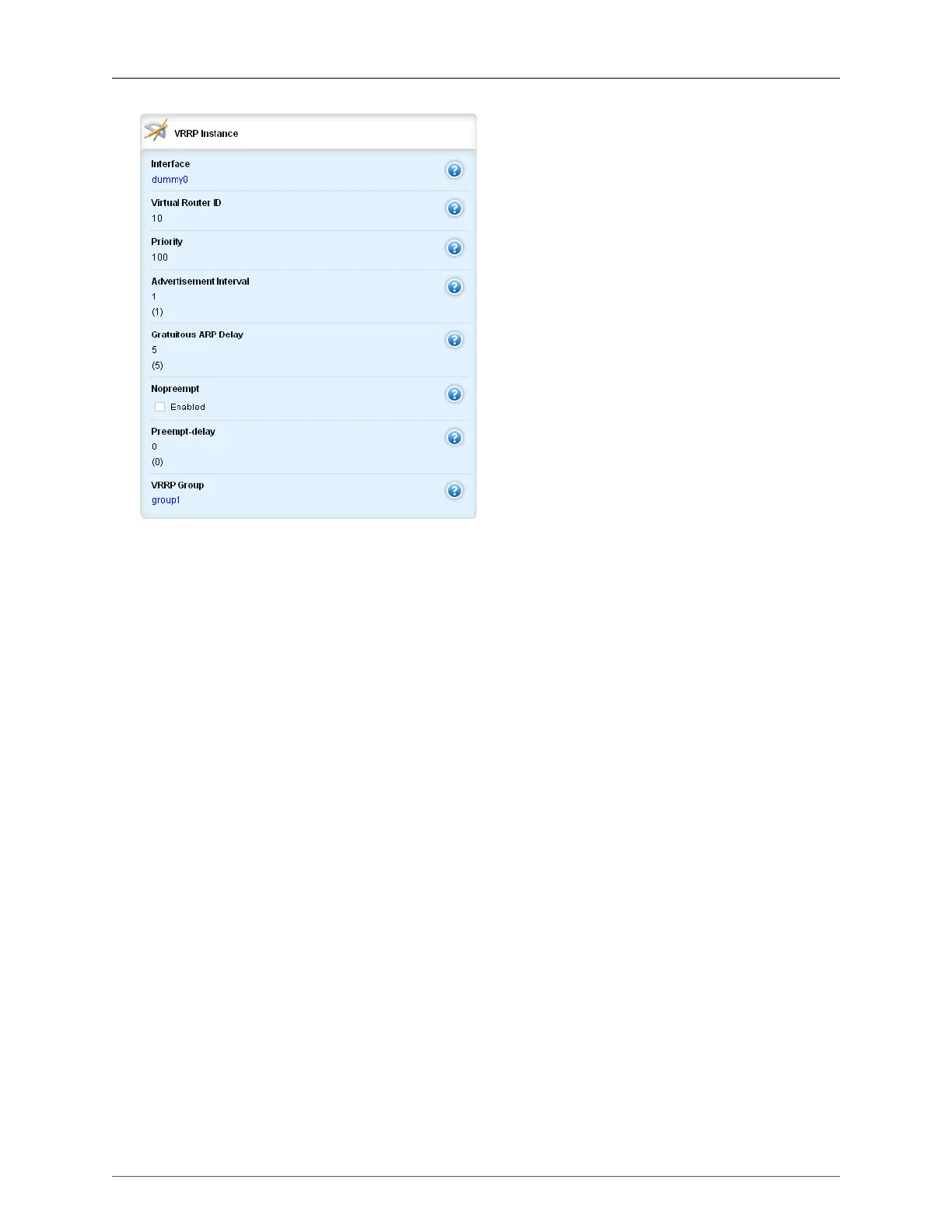

Figure 40.7. VRRP Instance Form
The VRRP Instance Form is used when configuring a VRRP instance. To display this form, navigate
to services/vrrp/instance/VRID20.
Instance Name
Synopsis: string
The VRRP instance name.
Interface
Synopsis: A string
The interface that VRRP packets are sent on.
Virtual Router ID
Synopsis: unsigned byte
The Virtual Router ID. All routers supplying the same VRIP should have the same VRID.
Priority
Synopsis: unsigned byte
The priority of VRRP instance. For electing MASTER, highest priority wins.
Advertisement Interval
Synopsis: unsigned byte
Default: 1
The advertisement interval (in seconds).
Gratuitous ARP Delay
Synopsis: unsigned byte
Default: 5
Gratuitous ARP delay (in seconds). This controls the number of seconds after the router changes
between the master and the backup state before a second set of gratuitous ARPs are sent.

RuggedCom RuggedBackbone RX1500 Specifications

General

Power Supply	Dual redundant, hot-swappable power supplies
Switching Capacity	Up to 128 Gbps
Operating Temperature Range	-40°C to +85°C
Mounting	DIN rail or panel mount
Certifications	IEEE 1613, IEC 61850-3, EN 50155, EN 50121-4
Power Input	24/48VDC or 110/220 VAC
Enclosure	Rugged metal
Type	Modular Layer 3 switch
