RuggedCom RuggedBackbone RX1500 User Manual

34. Dynamic Routing
ROX™ v2.2 User Guide 407 RuggedBackbone™ RX1500

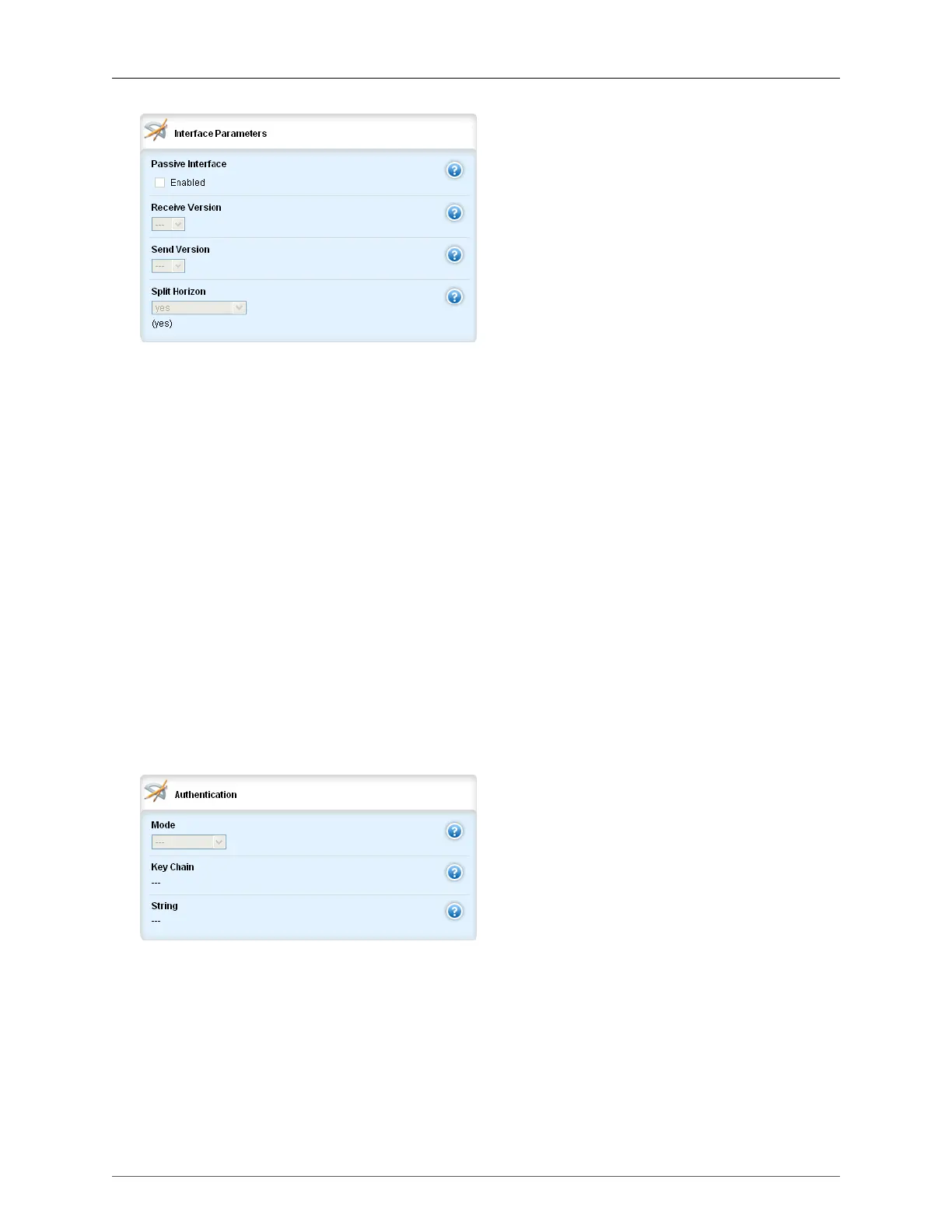

Figure 34.7. RIP Interface Parameters Form
To display the RIP Interface Parameters form and the Authentication form, navigate to routing/dynamic/
rip/interface/{interface}.
Passive Interface
The specified interface is set to passive mode. In passive mode, all received packets are processed
normally and ripd sends neither multicast nor unicast RIP packets except to RIP neighbors specified
with a neighbor element.
Receive Version
Synopsis: string - one of the following keywords { 2,1, 1,2, 2, 1 }
The version of RIP packets that will be accepted on this interface. By default, version 1 and version
2 packet will be accepted.
Send Version
Synopsis: string - one of the following keywords { 2,1, 1,2, 2, 1 }
The version of RIP to send packets with. By default, version 2 packet will be sent.
Split Horizon
Synopsis: string - one of the following keywords { poisoned-reverse, no, yes }
Default: yes
A split horizon.
Figure 34.8. Authentication Form
Mode
Synopsis: string - one of the following keywords { none, text, md5-old-ripd, md5-rfc }
The authentication mode.
Key Chain
Synopsis: string
The authentication key-chain.

RuggedCom RuggedBackbone RX1500 Specifications

General

Power Supply	Dual redundant, hot-swappable power supplies
Switching Capacity	Up to 128 Gbps
Operating Temperature Range	-40°C to +85°C
Mounting	DIN rail or panel mount
Certifications	IEEE 1613, IEC 61850-3, EN 50155, EN 50121-4
Power Input	24/48VDC or 110/220 VAC
Enclosure	Rugged metal
Type	Modular Layer 3 switch
