4. Basic Network Configuration
ROX™ v2.2 User Guide 72 RuggedBackbone™ RX1500
4. Basic Network Configuration
This chapter discusses the following:
IP Interfaces
Configuring IPv4 and IPv6 Addresses
Simple Network Setups with IPv4 and IPv6 Addresses
4.1. IP Interfaces

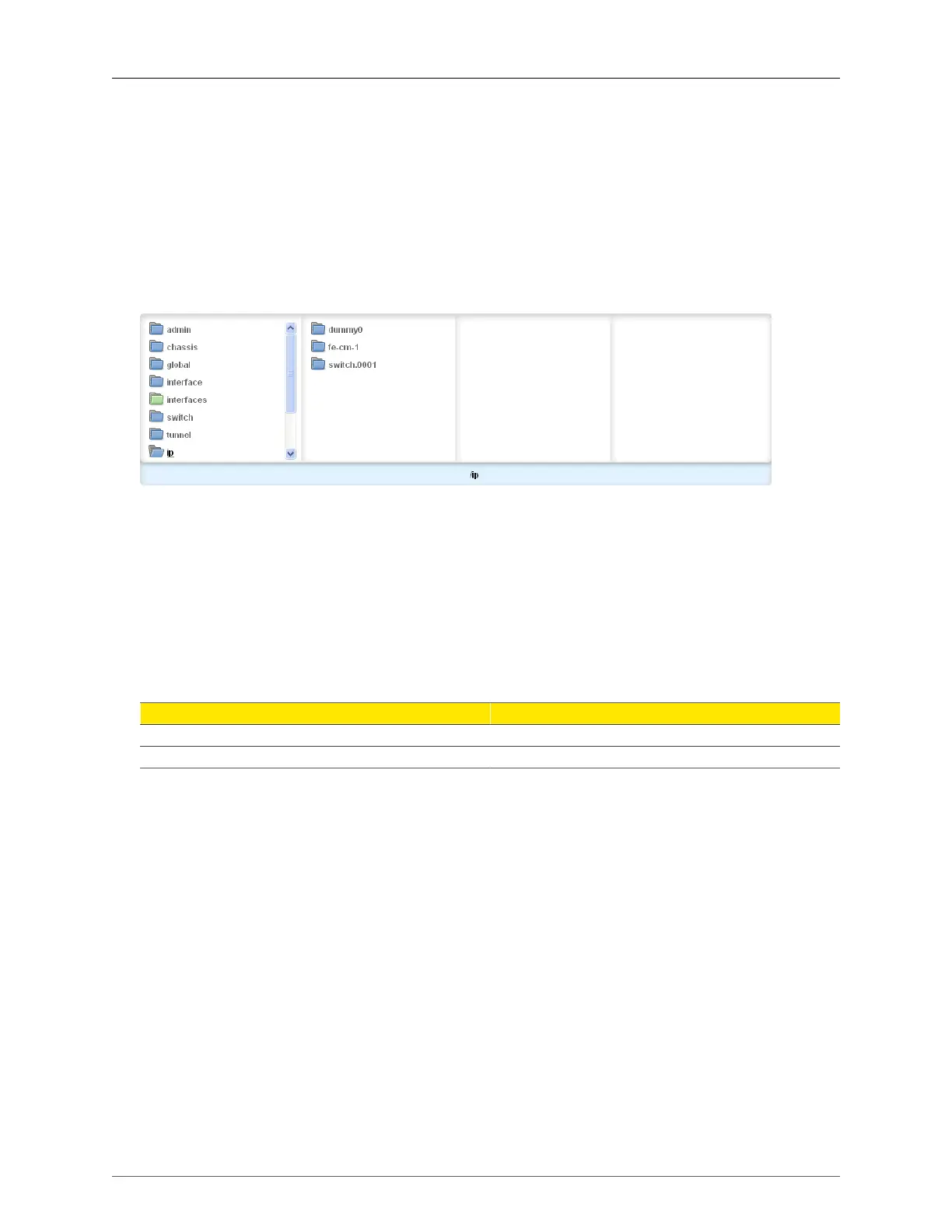

Figure 4.1. IP menu
The IP menu is accessible from the main menu under ip.
4.1.1. Configuring an IP Address
The RX1500 has the following internet interfaces configured by default: dummy0, fe-cm-1, and
switch.0001. The default IP addresses for fe-cm-1 and switch.0001 are configured under the ipv4
submenu. switch.0001 is the VLAN interface and is only seen if you have one or more ethernet line
modules. It is created implicitly as all switched ports have a default PVID of 1. The following table lists
the default IP addresses.
Interface IP Address
switch.0001 192.168.0.2/24
fe-cm-1 192.168.1.2/24
Table 4.1. Default IP Addresses
To configure a different IP address on an interface, see Procedure 4.1, “Configuring an IP Address”.
