RuggedCom RuggedBackbone RX1500 User Manual

17. Ethernet Statistics
ROX™ v2.2 User Guide 182 RuggedBackbone™ RX1500

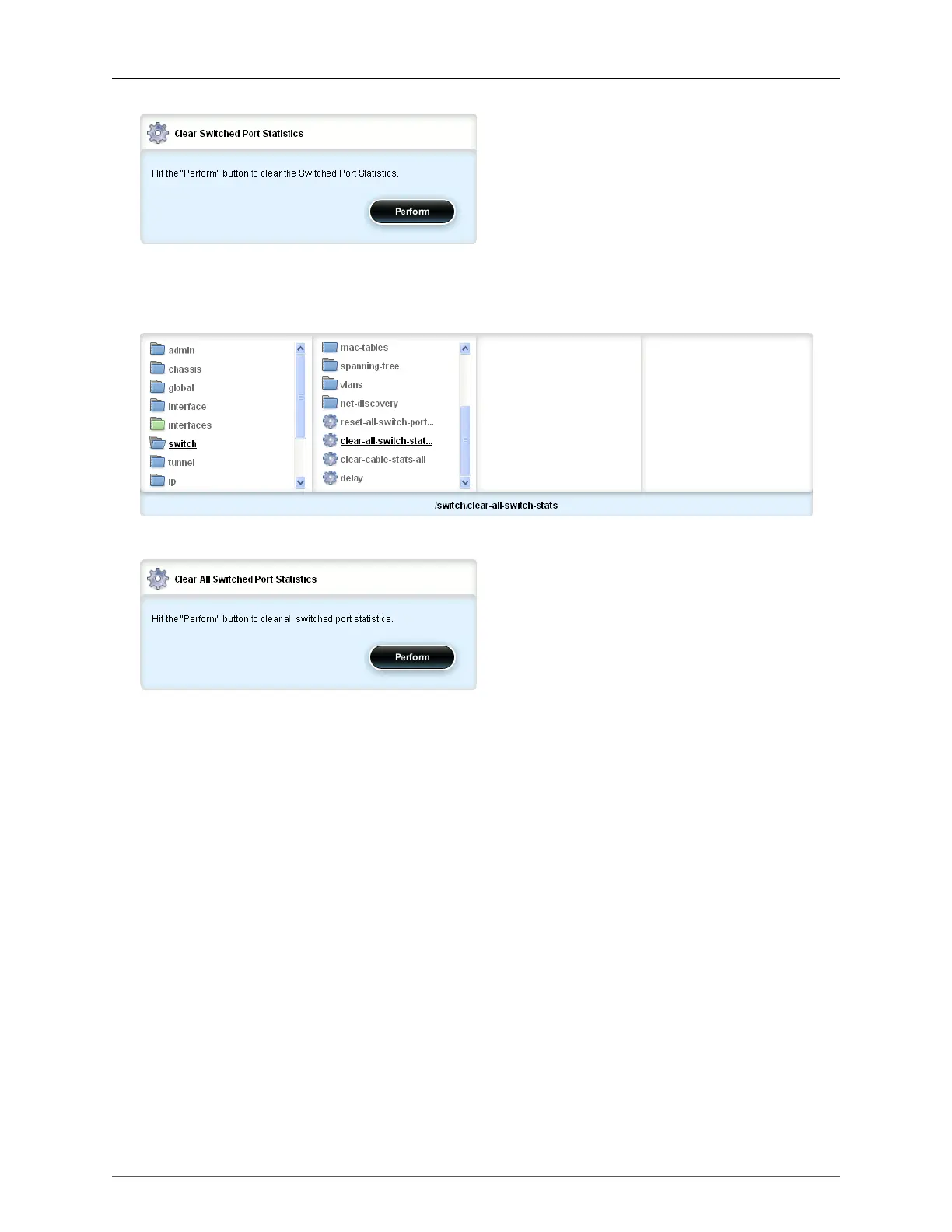

Figure 17.9. Clear Switched Port Statistics Form
This command clears Ethernet ports statistics for one switched port. Ports are cleared by clicking the
Perform button on the Clear Switched Port Statistics form.
Figure 17.10. Clear All Statistics Menu
Figure 17.11. Clear All Switched Port Statistics Form
The Clear All Switched Port Statistics form clears all statistics for switched ethernet ports. To display
the form, navigate to switch/clear-all-switch-stats.

RuggedCom RuggedBackbone RX1500 Specifications

General

Power Supply	Dual redundant, hot-swappable power supplies
Switching Capacity	Up to 128 Gbps
Operating Temperature Range	-40°C to +85°C
Mounting	DIN rail or panel mount
Certifications	IEEE 1613, IEC 61850-3, EN 50155, EN 50121-4
Power Input	24/48VDC or 110/220 VAC
Enclosure	Rugged metal
Type	Modular Layer 3 switch
