RuggedCom RuggedBackbone RX1500 User Manual

28. Spanning Tree
ROX™ v2.2 User Guide 310 RuggedBackbone™ RX1500

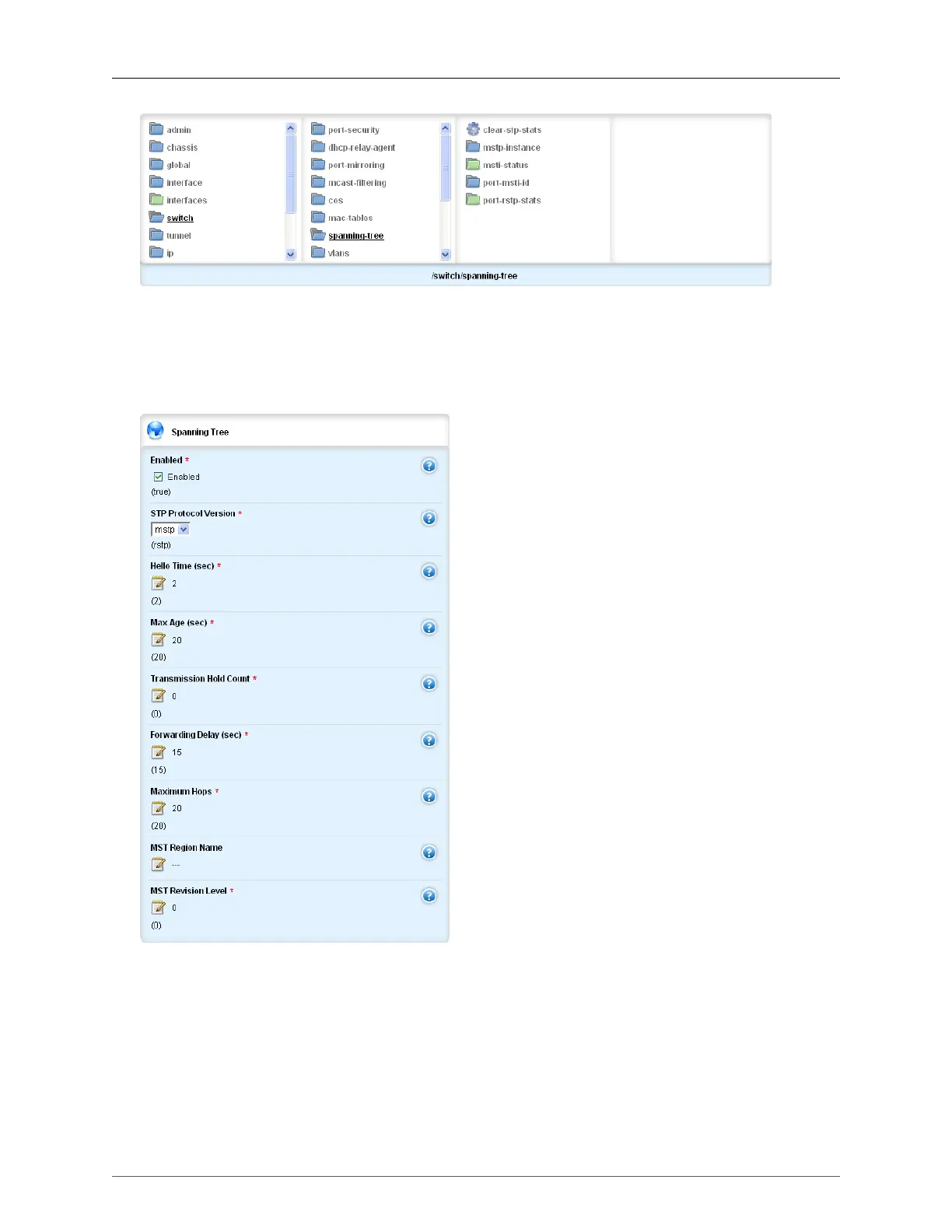

Figure 28.6. Spanning Tree menu
28.4.1. Spanning Tree Parameters
The Spanning Tree parameter form at the top-level Spanning Tree menu configures parameters
applicable to RSTP and MSTP over the whole bridge.
Figure 28.7. Spanning Tree Parameter form
Enabled
Synopsis: boolean
Default: true
Enables STP/RSTP/MSTP for the bridge globally. Note that STP/RSTP/MSTP is enabled on a port
when it is enabled globally and along with enabling per port setting.

RuggedCom RuggedBackbone RX1500 Specifications

General

Power Supply	Dual redundant, hot-swappable power supplies
Switching Capacity	Up to 128 Gbps
Operating Temperature Range	-40°C to +85°C
Mounting	DIN rail or panel mount
Certifications	IEEE 1613, IEC 61850-3, EN 50155, EN 50121-4
Power Input	24/48VDC or 110/220 VAC
Enclosure	Rugged metal
Type	Modular Layer 3 switch
