21. Modem
ROX™ v2.2 User Guide 216 RuggedBackbone™ RX1500
state
Synopsis: string - one of the following keywords { lowerLayerDown, notPresent, dormant,
unknown, testing, down, up }
The port's link status.
media
Synopsis: A string
The type of port media { ***range of values** }. It provides the user with a description of the installed
media type on the port for modular products. Please note that fiber media may be either Single
Mode(SM), Multi Mode(MM), and may be Short Distance, Long Distance or Very Long Distance
with connectors like LC, SC, ST, MTRJ etc. For the modules with SFP/GBICs, the media description
is displayed per the SFF-8472 specification, if the transceiver is plugged into the module. E.g.
10/100/1000TX RJ45, 100FX SM SC, 10FX MM ST,1000SX SFP LC S SL M5.

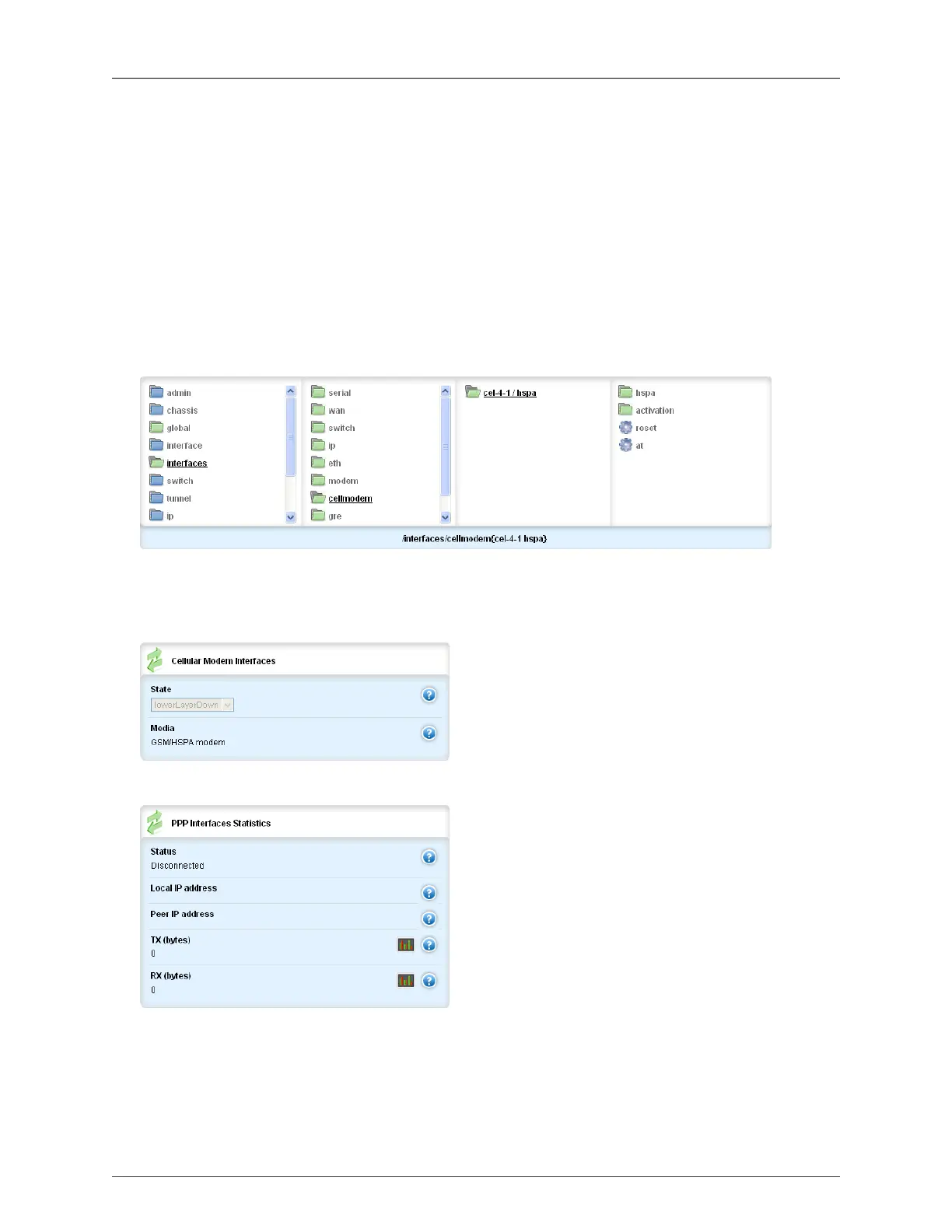

Figure 21.24. Interfaces Cellmodem HSPA menu
The path to this menu is interfaces/cellmodem/{line module}/hspa. The Cellular Modem Interfaces form
and the HSPA PPP Interfaces Statistics form appear on the same screen as this menu.
Figure 21.25. Cellular Modem Interfaces form
Figure 21.26. HSPA PPP Interfaces Statistics form
Status
Synopsis: A string
PPP connection status
