19. Virtual Switch Bridging
ROX™ v2.2 User Guide 188 RuggedBackbone™ RX1500
19.3. Virtual Switch Configuration and Status

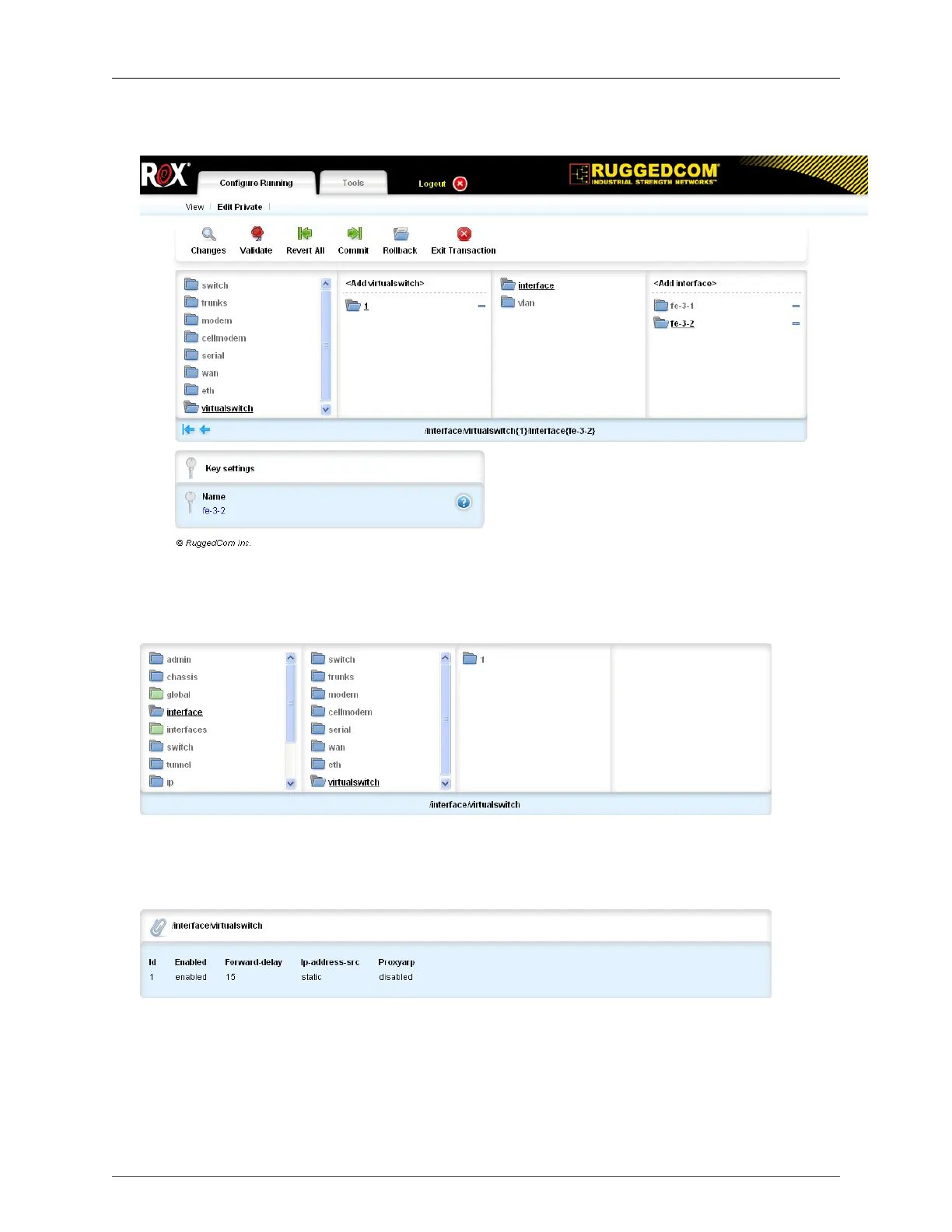

Figure 19.2. Adding a Virtual Switch
To add a virtual switch, enter Edit Private mode. Add a virtual switch and at least two interfaces. You
can also add VLANs.
Figure 19.3. Interface Virtualswitch menu
The Interface Virtualswitch menu is located at interface/virtualswitch. If a virtual switch is configured,
the Virtualswitch table appears on the same screen as this menu.
Figure 19.4. Virtualswitch table

RuggedCom RuggedBackbone RX1500 Specifications

General

Power Supply	Dual redundant, hot-swappable power supplies
Switching Capacity	Up to 128 Gbps
Operating Temperature Range	-40°C to +85°C
Mounting	DIN rail or panel mount
Certifications	IEEE 1613, IEC 61850-3, EN 50155, EN 50121-4
Power Input	24/48VDC or 110/220 VAC
Enclosure	Rugged metal
Type	Modular Layer 3 switch
