14. DHCP Relay
ROX™ v2.2 User Guide 141 RuggedBackbone™ RX1500
The DHCP Relay Agent form appears on the same screen as the DHCP Relay Agent menu.
DHCP Server Address
Synopsis: IPv4 address in dotted-decimal notation
The IP address of the DHCP server to which DHCP queries will be forwarded from this relay agent.

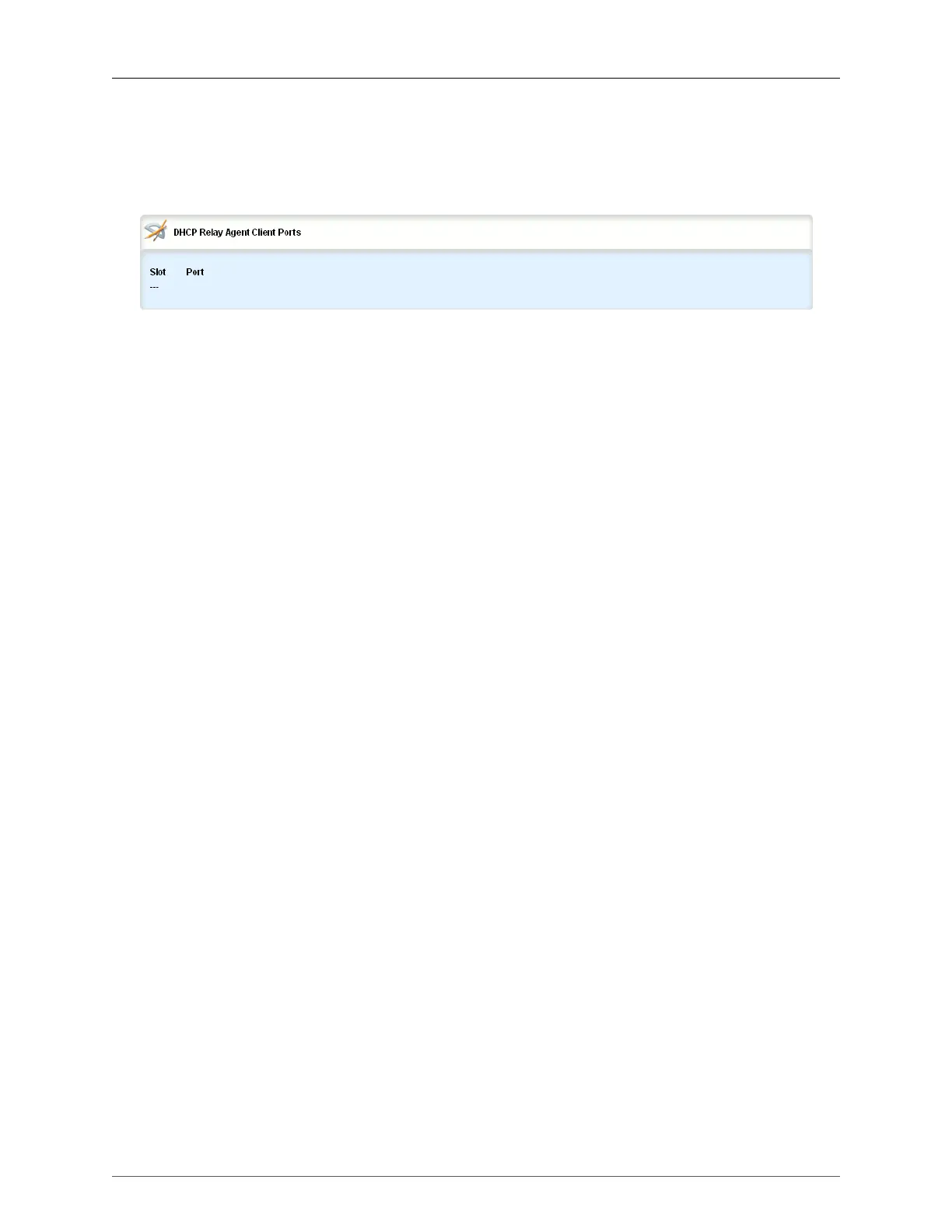

Figure 14.3. DHCP Relay Agent Client Ports table
To display the DHCP Relay Agent Client Ports table, navigate to dhcp-relay-agent/dhcp-client-ports.
DHCP Relay Agent Client Ports are ports where DHCP clients are connected.
Slot
Synopsis: string - one of the following keywords { lm6, lm5, lm4, lm3, lm2, lm1, sm }
The name of the module location provided on the silkscreen across the top of the device.
Port
Synopsis: integer
The selected ports on the module installed in the indicated slot.
