RuggedCom RuggedBackbone RX1500

30. Network Discovery
ROX™ v2.2 User Guide 349 RuggedBackbone™ RX1500

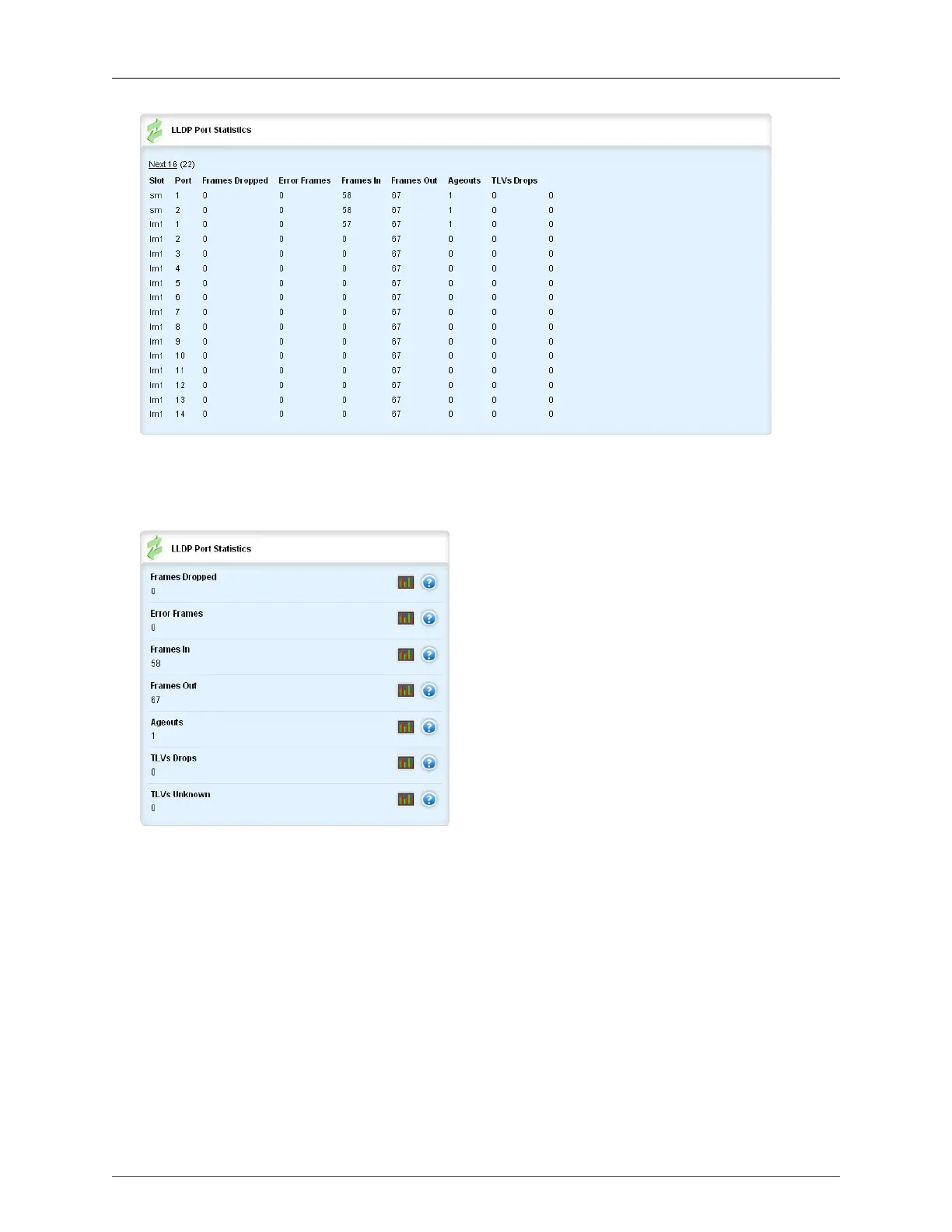

Figure 30.6. LLDP Port Statistics table
The LLDP Port Statistics table allows you to view port LLDP statistics
The path to the LLDP Port Statistics table is switch/net-discovery/lldp/port-lldp-stats.
Figure 30.7. LLDP Port Statistics form
The path to the LLDP Port Statistics form is switch/net-discovery/lldp/port-lldp-stats and then clicking
on one of the linked submenus (for example, sm/1).
slot
Synopsis: string - the keyword { --- }
Synopsis: string - one of the following keywords { main, pm2, pm1 }
Synopsis: string - one of the following keywords { lm6, lm5, lm4, lm3, lm2, lm1, sm }
Synopsis: string - one of the following keywords { em, cm }
Synopsis: string - the keyword { trnk }
The slot of the module that contains this port.
Port
Synopsis: integer
