RuggedCom RuggedBackbone RX1500 User Manual

Appendix A. Upgrading Software
ROX™ v2.2 User Guide 491 RuggedBackbone™ RX1500
Appendix A. Upgrading Software
To launch a ROX™ operating system software upgrade, follow the procedure outlined below.
A.1. Preparing The Software Upgrade
The first step in a ROX™ software upgrade is to configure the location of the software upgrade repository
and the version of software to which to upgrade.
At the top of the screen, click Edit Private to access the Edit Private view. The screen in Edit Private
view is shown in the figure below.

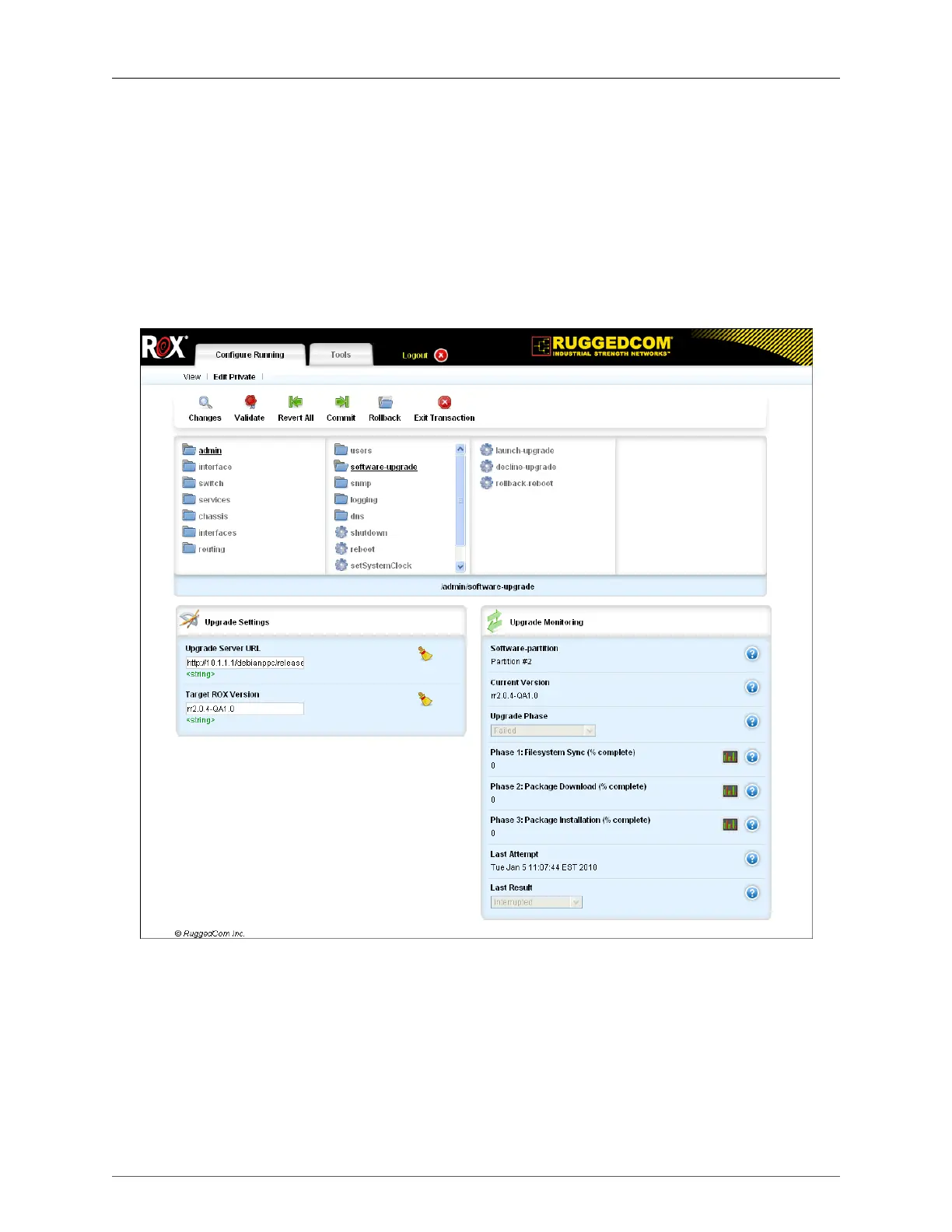

Figure A.1. The Software Upgrade Menu Interface
In the Upgrade Settings form, enter the location of the software upgrade server Upgrade Server URL
field, and the version string of the desired version of ROX™ in the Target ROX Version field.

RuggedCom RuggedBackbone RX1500 Specifications

General

Power Supply	Dual redundant, hot-swappable power supplies
Switching Capacity	Up to 128 Gbps
Operating Temperature Range	-40°C to +85°C
Mounting	DIN rail or panel mount
Certifications	IEEE 1613, IEC 61850-3, EN 50155, EN 50121-4
Power Input	24/48VDC or 110/220 VAC
Enclosure	Rugged metal
Type	Modular Layer 3 switch
