RuggedCom RuggedBackbone RX1500 User Manual

21. Modem
ROX™ v2.2 User Guide 211 RuggedBackbone™ RX1500

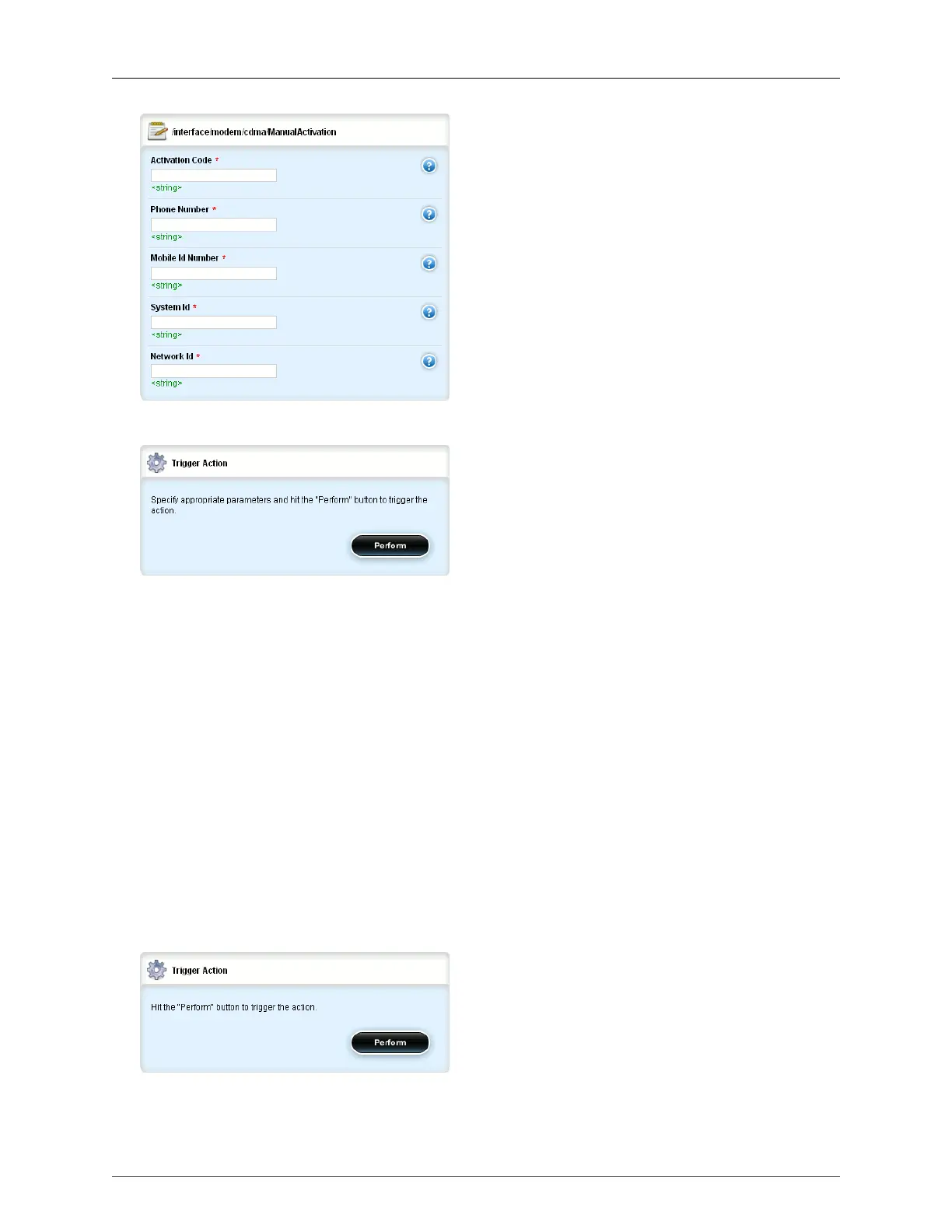

Figure 21.10. CDMA Manual Activation form
Figure 21.11. CDMA Manual Activation Trigger Action form
1. First, establish an account with a service representative of the cellular network provider. You will
need the following settings in order to activate your modem. Note that not all of these parameters
are required by all network providers:
• Activation code, also known as a "subsidy lock".
• Phone Number, or MDN (Mobile Directory Number).
• MIN (Mobile Identification Number), often the same as the Phone Number.
• System ID, or Home System ID.
• Network ID
2. After specifying the parameters above in the Manual Activation form, click the Perform button on
the Trigger Action form.
Reset Modem
The modem can be reset using the Reset Modem Trigger Action form. The path to the CDMA Reset
Modem Trigger Action form is interface/modem/lm6 / 1/cdma/resetmodem.
Figure 21.12. CDMA Reset Modem Trigger Action form

RuggedCom RuggedBackbone RX1500 Specifications

General

Power Supply	Dual redundant, hot-swappable power supplies
Switching Capacity	Up to 128 Gbps
Operating Temperature Range	-40°C to +85°C
Mounting	DIN rail or panel mount
Certifications	IEEE 1613, IEC 61850-3, EN 50155, EN 50121-4
Power Input	24/48VDC or 110/220 VAC
Enclosure	Rugged metal
Type	Modular Layer 3 switch
