RuggedCom RuggedBackbone RX1500 User Manual

34. Dynamic Routing
ROX™ v2.2 User Guide 413 RuggedBackbone™ RX1500
The number of times a hello message can be sent within one second.
Configuration Parameters
Configuration forms and display tables can be found at routing/dynamic/ospf/interface, then clicking on
one of the interface submenus (for example, dummy0) and then clicking on the further set of submenus
that follow (authentication-ip, cost-ip, dead-interval-ip, hello-interval-ip, message-digest-key, message-
digest-key-ip, retransmit-interval-ip and transmit-delay-ip).
34.5. BGP
34.5.1. BGP configuration

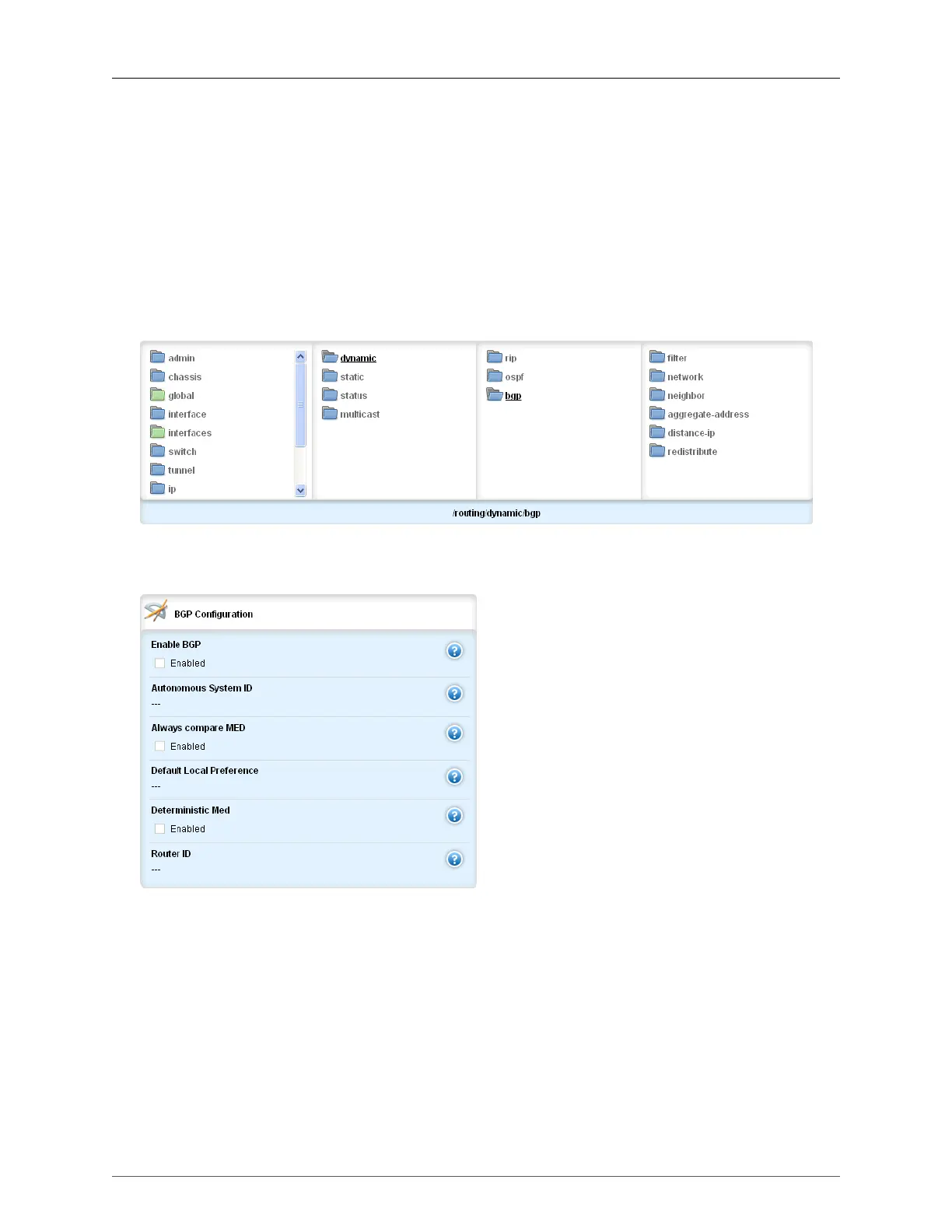

Figure 34.15. BGP Menu
To display the BGP menu, navigate to routing/dynamic/bgp.
Figure 34.16. BGP Configuration Form
The BGP Configuration form appears on the same screen as the BGP menu.
Enable BGP
Enables BGP.
Autonomous System ID
Synopsis: unsigned integer
Autonomous System ID.
Always compare MED
Always comparing MED from different neighbors.

RuggedCom RuggedBackbone RX1500 Specifications

General

Power Supply	Dual redundant, hot-swappable power supplies
Switching Capacity	Up to 128 Gbps
Operating Temperature Range	-40°C to +85°C
Mounting	DIN rail or panel mount
Certifications	IEEE 1613, IEC 61850-3, EN 50155, EN 50121-4
Power Input	24/48VDC or 110/220 VAC
Enclosure	Rugged metal
Type	Modular Layer 3 switch
