RuggedCom RuggedBackbone RX1500 User Manual

5. IP Network Interfaces
ROX™ v2.2 User Guide 79 RuggedBackbone™ RX1500

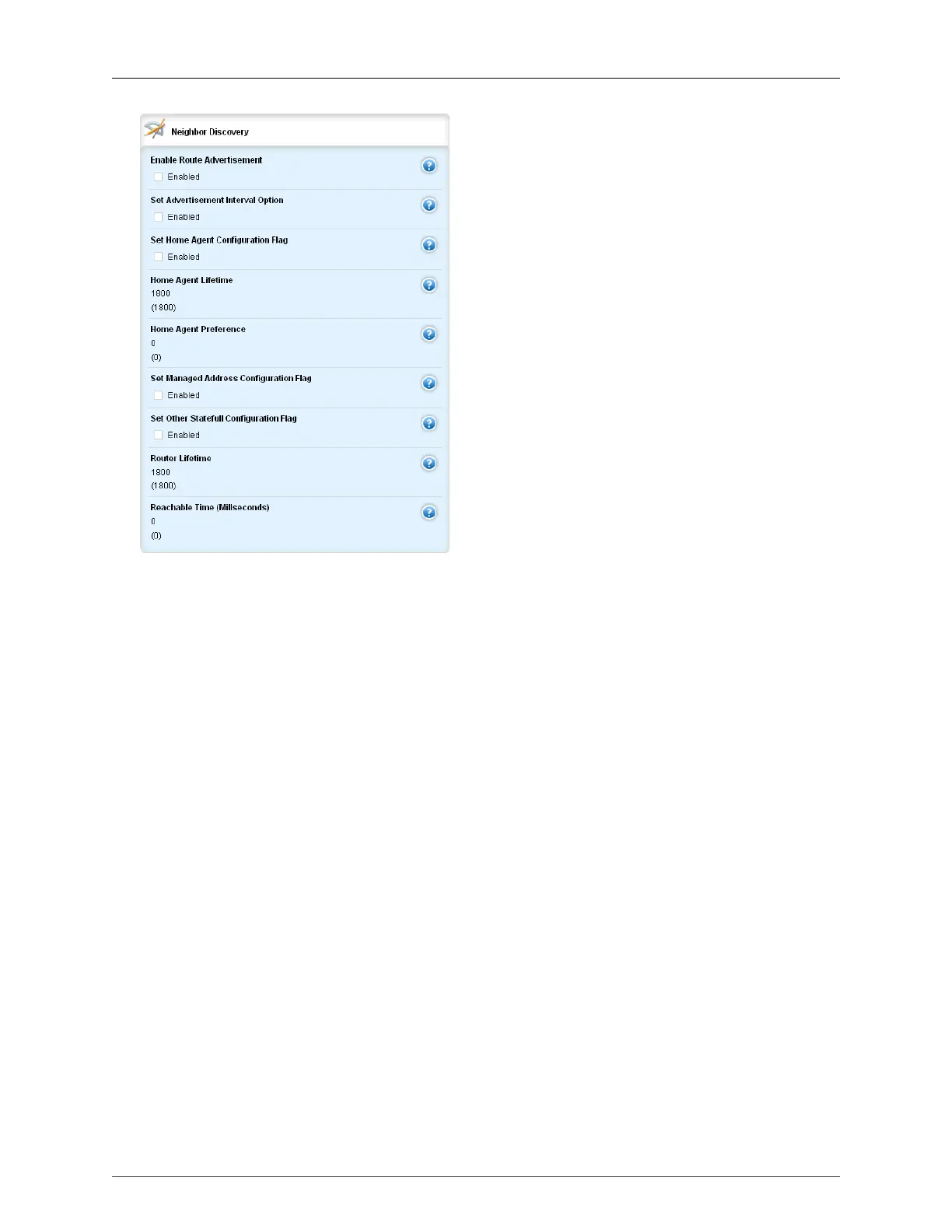

Figure 5.1. Neighbor Discovery form
The path to the Neighbor Discovery form is ip/{interface}/ipv6/nd.
Enable Route Advertisement
Enable to send router advertisement messages.
Set Advertisement Interval Option
Includes an Advertisement Interval option which indicates to hosts the maximum time in
milliseconds, between successive unsolicited router advertisements.
Set Home Agent Configuration Flag
Sets/unsets the flag in IPv6 router advertisements which indicates to hosts that the router acts as
a home agent and includes a home agent option.
Home Agent Lifetime
Synopsis: unsigned integer
Default: 1800
The value to be placed in the home agent option, when the home agent config flag is set, which
indicated the home agent lifetime to hosts. A value of 0 means to place a router lifetime value.
Home Agent Preference
Synopsis: unsigned integer
Default:
The value to be placed in the home agent option, when the home agent config flag is set, which
indicates the home agent preference to hosts.
Set Managed Address Configuration Flag
The flag in IPv6 router advertisements, which indicates to hosts that they should use the managed
(stateful) protocol for addresses autoconfiguraiton in addition to any addresses autoconfigured
using stateless address autoconfiguration.

RuggedCom RuggedBackbone RX1500 Specifications

General

Power Supply	Dual redundant, hot-swappable power supplies
Switching Capacity	Up to 128 Gbps
Operating Temperature Range	-40°C to +85°C
Mounting	DIN rail or panel mount
Certifications	IEEE 1613, IEC 61850-3, EN 50155, EN 50121-4
Power Input	24/48VDC or 110/220 VAC
Enclosure	Rugged metal
Type	Modular Layer 3 switch
