RuggedCom RuggedBackbone RX1500 User Manual

38. Firewall
ROX™ v2.2 User Guide 452 RuggedBackbone™ RX1500

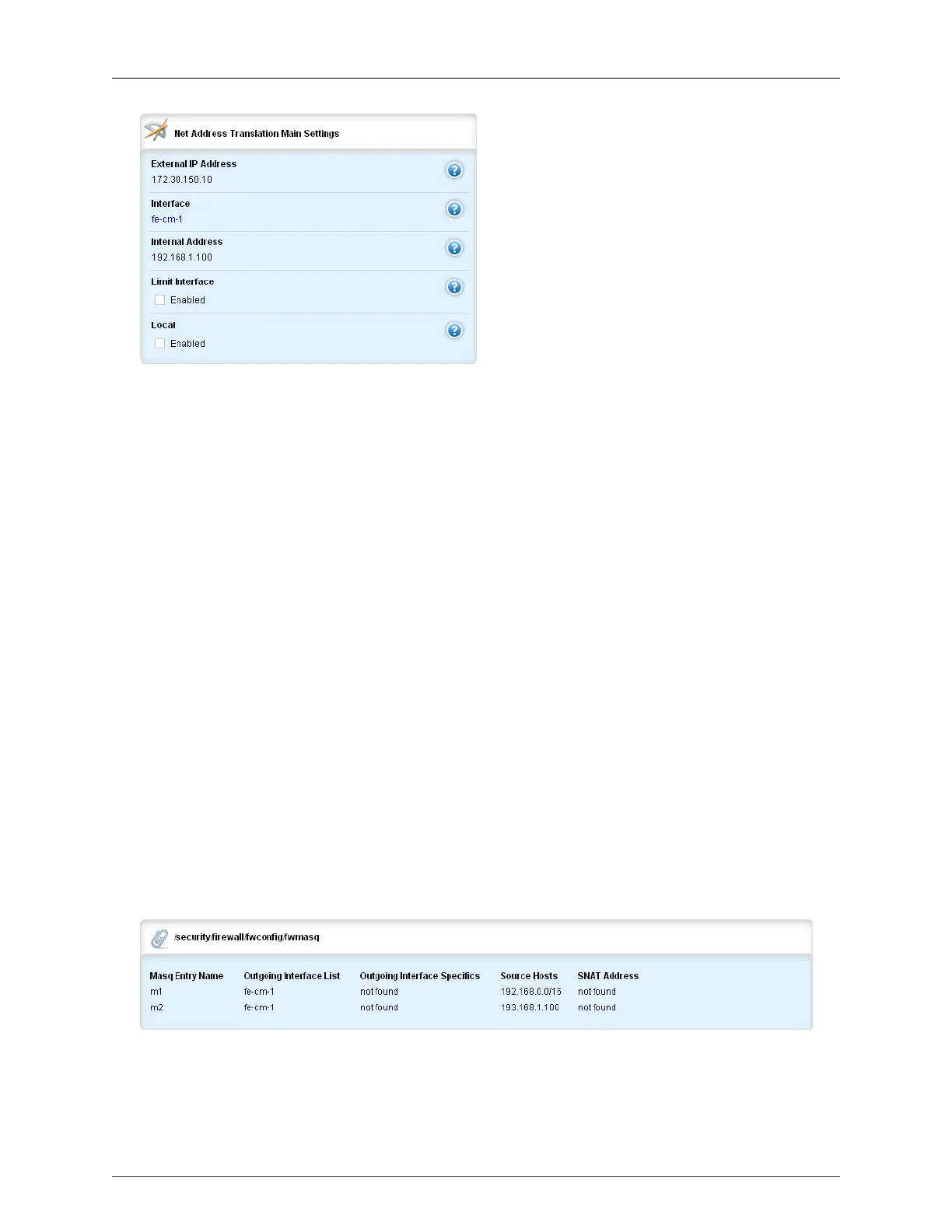

Figure 38.21. Net Address Translation Main Settings form
Nat Entry Name
Synopsis: string
Enter a name for this NAT entry
External IP Address
Synopsis: IPv4 address in dotted-decimal notation
The external IP Address (must not be a DNS name)
Interface
Synopsis: A string
Interfaces that have the EXTERNAL address
Internal Address
Synopsis: IPv4 address in dotted-decimal notation
The internal address (must not be a DNS Name)
Limit Interface
Translation only effective from the defined interface (default: all interfaces)
Local
Translation effective from the firewall system (default: disabled)
description
Synopsis: string
(Optional) The description string for this nat entry
38.5.8. IP Masquerading
Figure 38.22. FWMasq table

RuggedCom RuggedBackbone RX1500 Specifications

General

Power Supply	Dual redundant, hot-swappable power supplies
Switching Capacity	Up to 128 Gbps
Operating Temperature Range	-40°C to +85°C
Mounting	DIN rail or panel mount
Certifications	IEEE 1613, IEC 61850-3, EN 50155, EN 50121-4
Power Input	24/48VDC or 110/220 VAC
Enclosure	Rugged metal
Type	Modular Layer 3 switch
