RuggedCom RuggedBackbone RX1500 User Manual

38. Firewall
ROX™ v2.2 User Guide 453 RuggedBackbone™ RX1500

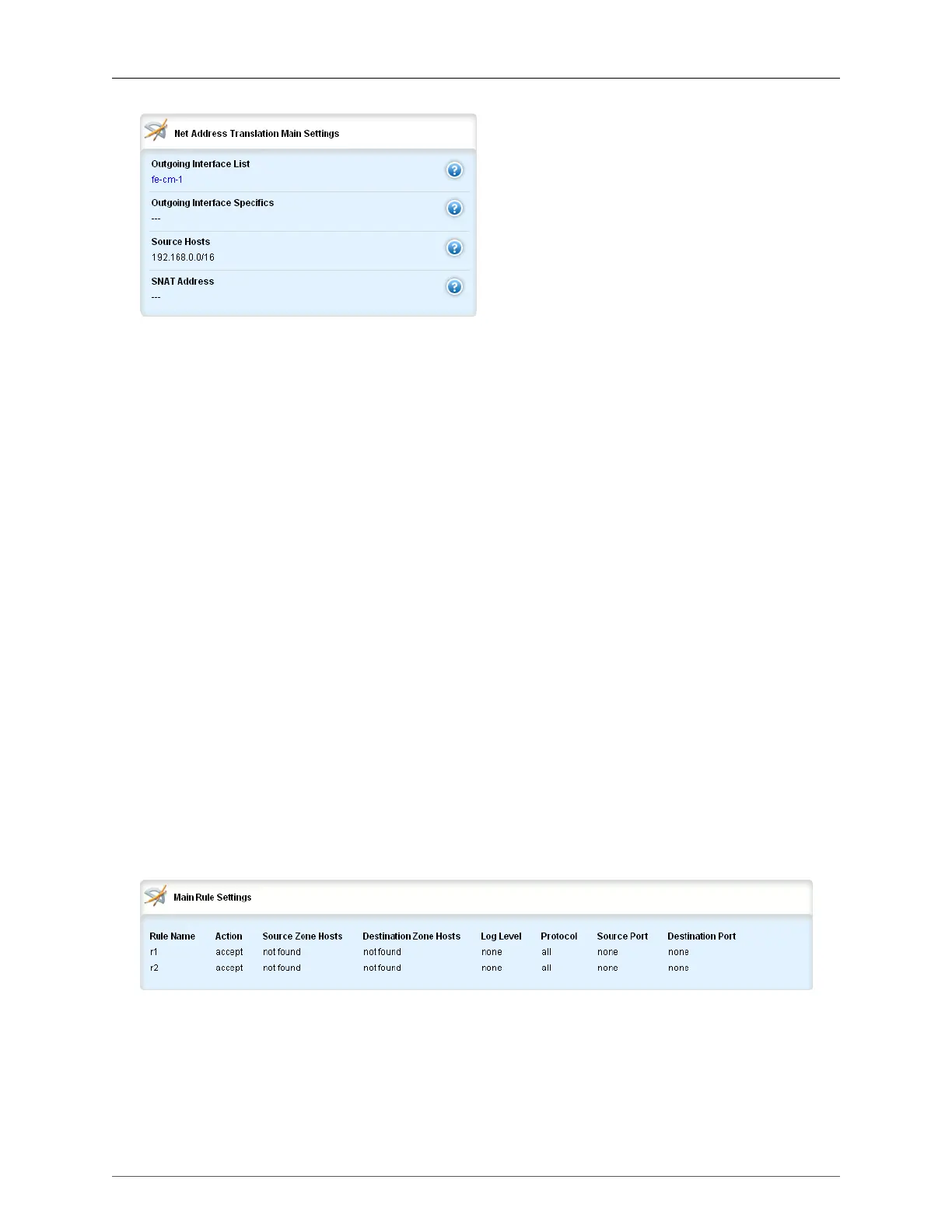

Figure 38.23. Net Address Translation Main Settings form
Masquerading substitutes a single IP address for an entire internal network
Masq Entry Name
Synopsis: string
A name for this masquerading configuration entry
Outgoing Interface List
Synopsis: string
An outgoing interfacelist - usually the internet interface
Outgoing Interface Specifics
Synopsis: string
(Optional) An outgoing interface list - specific destinations IP for the out-interface
Source Hosts
Synopsis: string
Subnet range or comma-separated list of hosts (IPs)
SNAT Address
Synopsis: string
(Optional) By specifying an address here, SNAT will be used and this will be the source address
description
Synopsis: string
(Optional) The description string for this masq entry
38.5.9. Rules
Figure 38.24. Main Rule Settings table

RuggedCom RuggedBackbone RX1500 Specifications

General

Power Supply	Dual redundant, hot-swappable power supplies
Switching Capacity	Up to 128 Gbps
Operating Temperature Range	-40°C to +85°C
Mounting	DIN rail or panel mount
Certifications	IEEE 1613, IEC 61850-3, EN 50155, EN 50121-4
Power Input	24/48VDC or 110/220 VAC
Enclosure	Rugged metal
Type	Modular Layer 3 switch
