28. Spanning Tree
ROX™ v2.2 User Guide 327 RuggedBackbone™ RX1500
28.5.4. Port MSTP Statistics

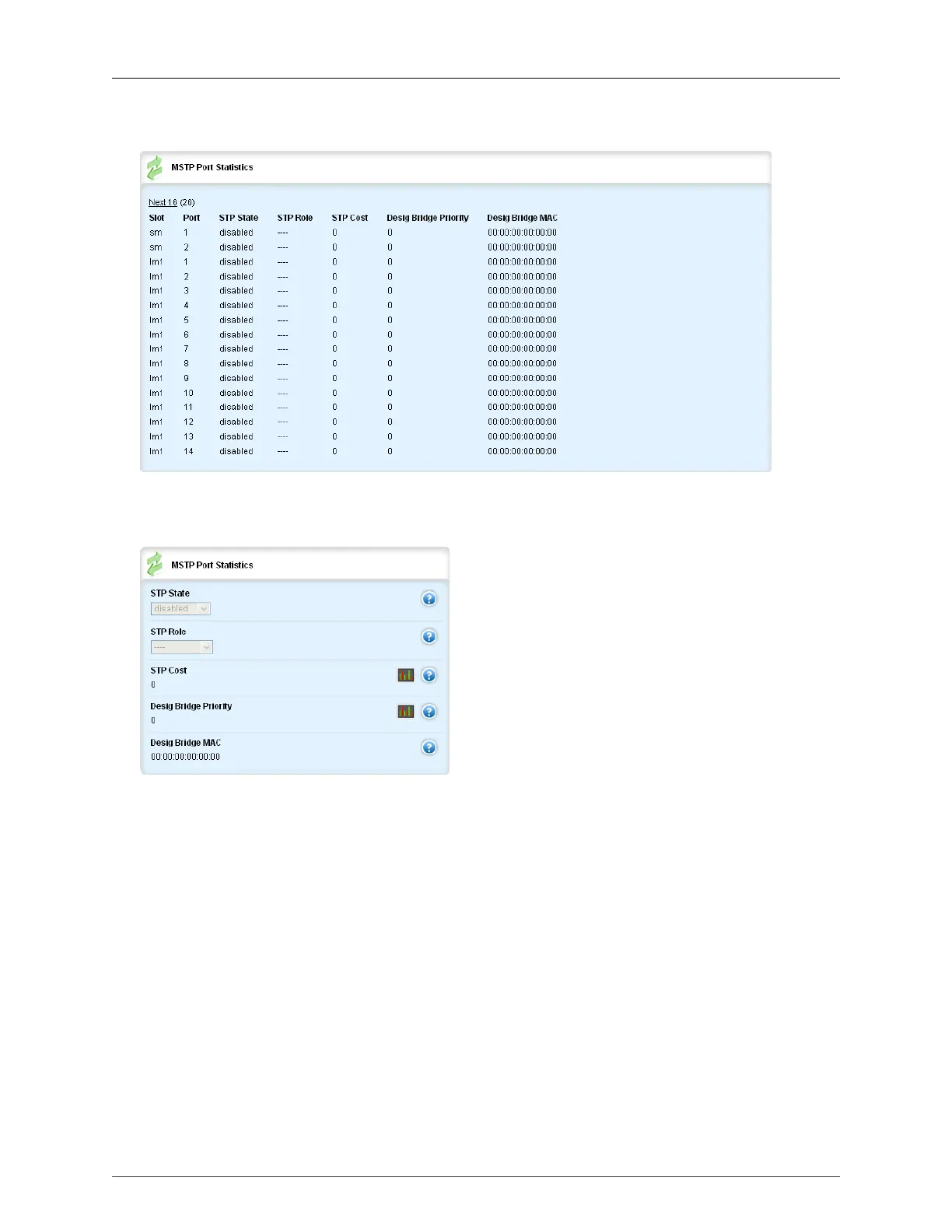

Figure 28.23. MSTP Port Statistics table
The path to the MSTP Port Statistics table is switch/spanning-tree/port-msti-id/{number}/port-msti-stats.
Figure 28.24. MSTP Port Statistics form
The path to MSTP Port Statistics forms is switch/spanning-tree/port-msti-id/{number}/port-msti-stats/
{line module}.
Slot
Synopsis: string - one of the following keywords { lm6, lm5, lm4, lm3, lm2, lm1, sm }
Synopsis: string - the keyword { trnk }
The slot of the module that contains this port.
Port
Synopsis: integer
The port number as seen on the front plate silkscreen of the module.
STP State
Synopsis: string - one of the following keywords { discarding, linkDown, forwarding, learning,
listening, blocking, disabled }
The status of this interface in the spanning tree:
