36. Routing Status
ROX™ v2.2 User Guide 428 RuggedBackbone™ RX1500
id
Synopsis: string
Link ID.
area
Synopsis: string
Area ID.
adv-router
Synopsis: string
Advertising Router.
age
Synopsis: integer
Age.
seqnum
Synopsis: string
Sequence number.

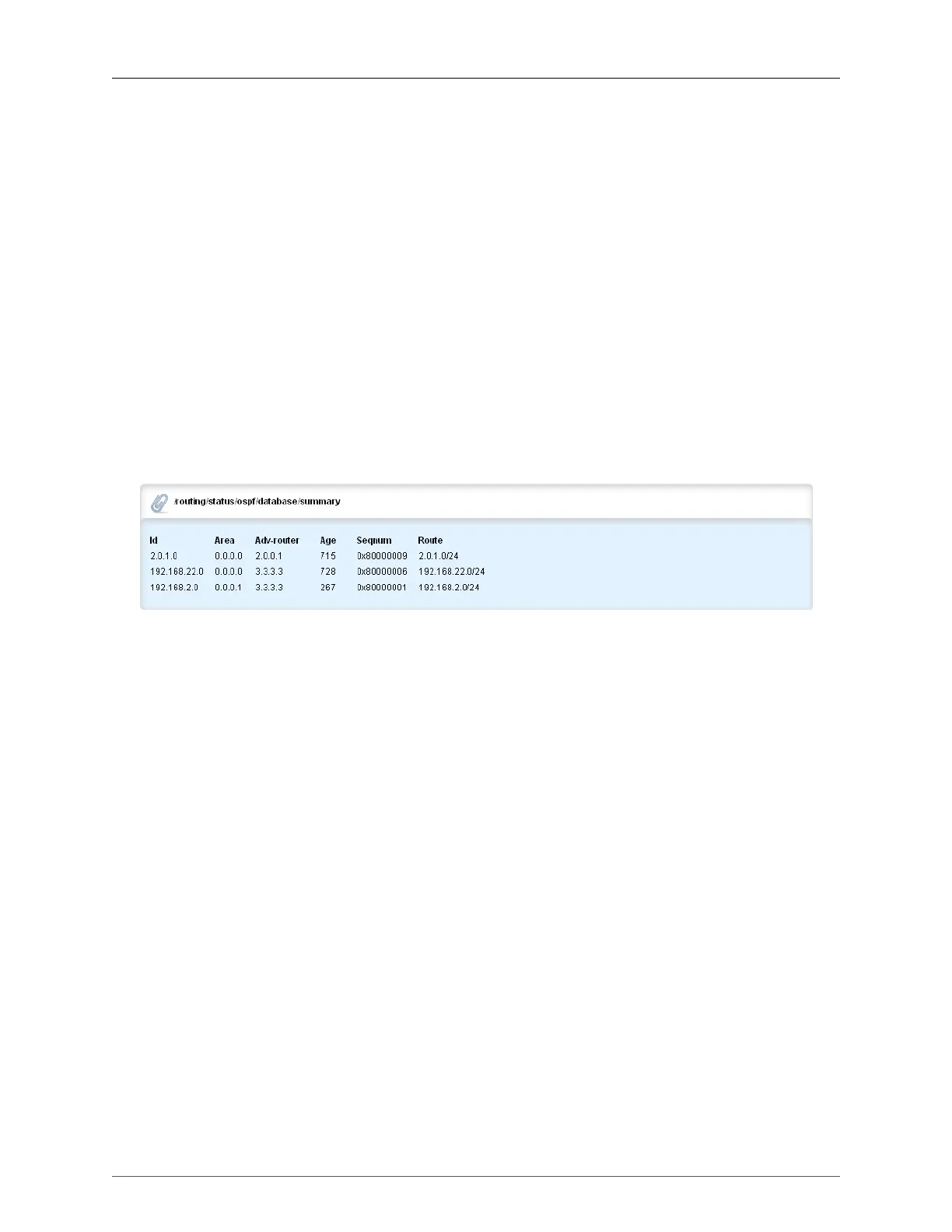

Figure 36.15. Summary Table
To display the Summary table, navigate to routing/status/ospf/database/summary.
id
Synopsis: string
Link ID.
area
Synopsis: string
Area ID.
adv-router
Synopsis: string
Advertising Router.
age
Synopsis: integer
Age.
seqnum
Synopsis: string
Sequence number.
route
Synopsis: string
Route.
