RuggedCom RuggedBackbone RX1500 User Manual

38. Firewall
ROX™ v2.2 User Guide 448 RuggedBackbone™ RX1500
38.5.4. Interface Configuration

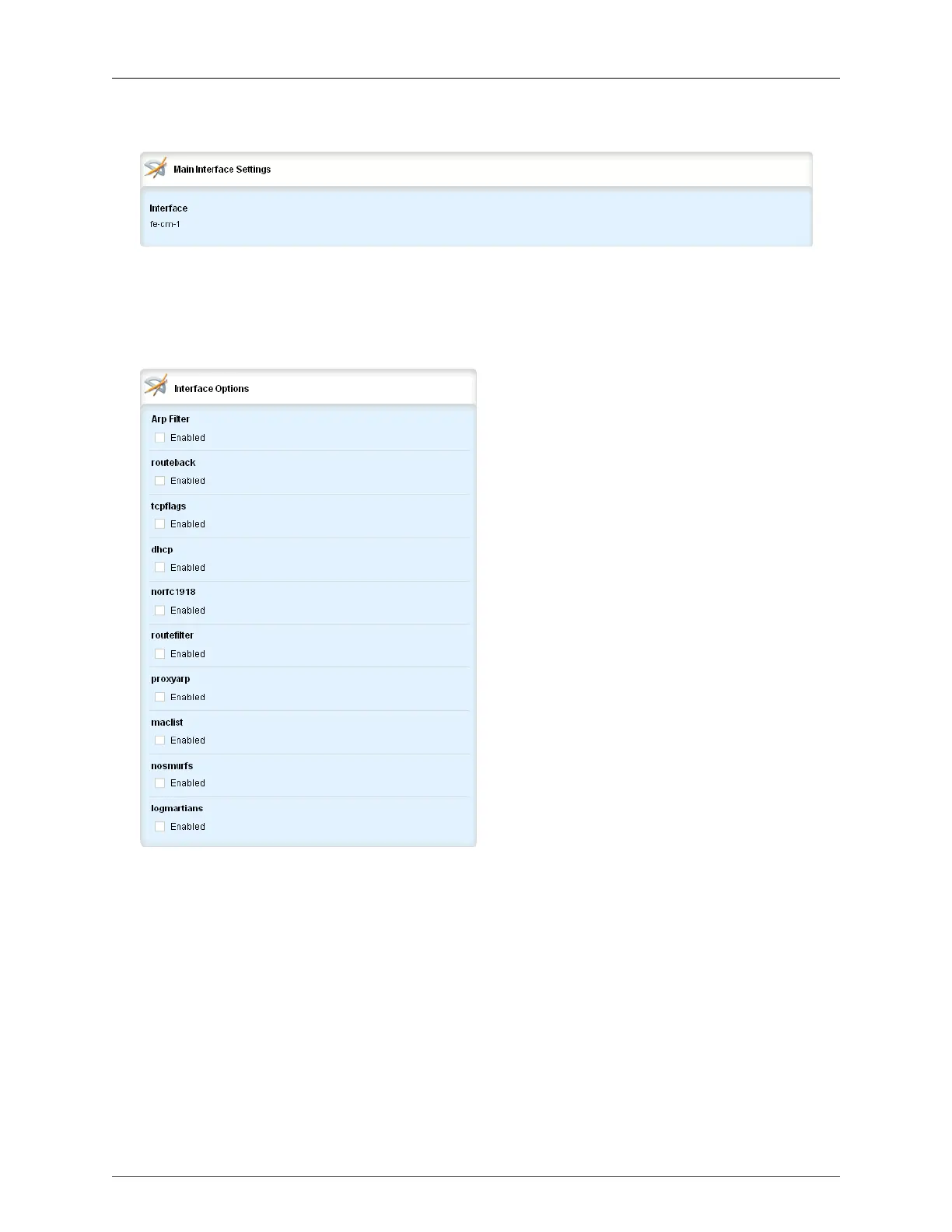

Figure 38.10. Main Interface Settings table
interface
Synopsis: string
Currently active or not - add '+' for same interfaces: ppp+
Figure 38.11. Interface Options form
Arp Filter
Responds only to ARP requests for configured IP addresses
routeback
Allow traffic on this interface to be routed back out that same interface
tcpflags
Illegal combinations of TCP flags dropped and logged at info level
dhcp
Allows DHCP datagrams to enter and leave the interface
norfc1918
Not currently implemented

RuggedCom RuggedBackbone RX1500 Specifications

General

Power Supply	Dual redundant, hot-swappable power supplies
Switching Capacity	Up to 128 Gbps
Operating Temperature Range	-40°C to +85°C
Mounting	DIN rail or panel mount
Certifications	IEEE 1613, IEC 61850-3, EN 50155, EN 50121-4
Power Input	24/48VDC or 110/220 VAC
Enclosure	Rugged metal
Type	Modular Layer 3 switch
