RuggedCom RuggedBackbone RX1500 User Manual

30. Network Discovery
ROX™ v2.2 User Guide 350 RuggedBackbone™ RX1500
The port number as seen on the front plate silkscreen of the module.
Frames Dropped
Synopsis: unsigned integer
A counter of all LLDP frames discarded
Error Frames
Synopsis: unsigned integer
A counter of all LLDPDUs received with detectable errors
Frames In
Synopsis: unsigned integer
A counter of all LLDPDUs received
Frames Out
Synopsis: unsigned integer
A counter of all LLDPDUs transmitted
Ageouts
Synopsis: unsigned integer
A counter of the times that a neighbor's information has been deleted from the LLDP remote system
MIB because the txinfoTTL timer has expired
TLVs Drops
Synopsis: unsigned integer
A counter of all TLVs discarded
TLVs Unknown
Synopsis: unsigned integer
A counter of all TLVs received on the port that are not recognized by the LLDP local agent

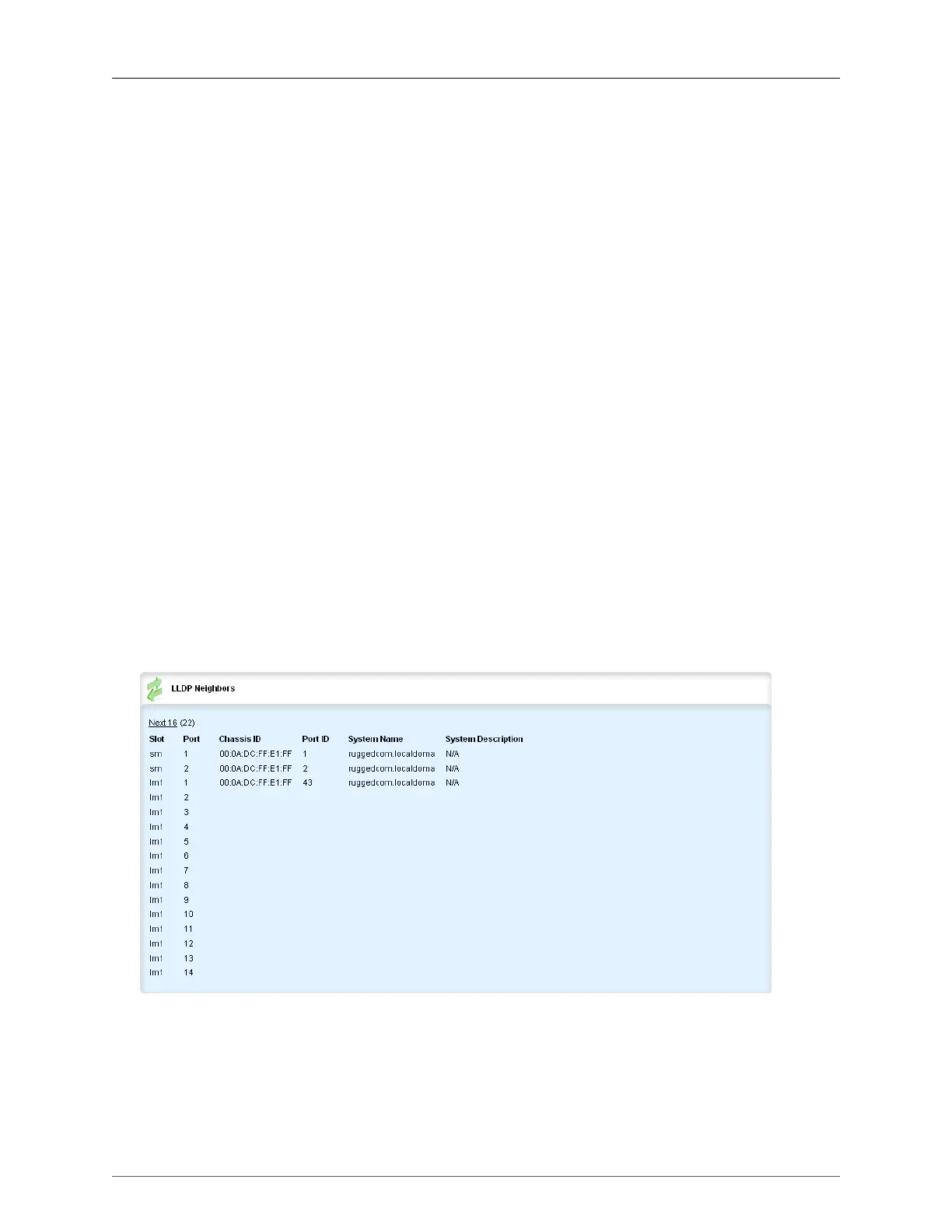

Figure 30.8. LLDP Neighbors table
The LLDP Neighbors table allows you to view LLDP neighbors by port.
The path to the LLDP Neighbors table is switch/net-discovery/lldp/port-lldp-neighbors.

RuggedCom RuggedBackbone RX1500 Specifications

General

Power Supply	Dual redundant, hot-swappable power supplies
Switching Capacity	Up to 128 Gbps
Operating Temperature Range	-40°C to +85°C
Mounting	DIN rail or panel mount
Certifications	IEEE 1613, IEC 61850-3, EN 50155, EN 50121-4
Power Input	24/48VDC or 110/220 VAC
Enclosure	Rugged metal
Type	Modular Layer 3 switch
