RuggedCom RuggedBackbone RX1500 User Manual

16. Ethernet Ports
ROX™ v2.2 User Guide 166 RuggedBackbone™ RX1500

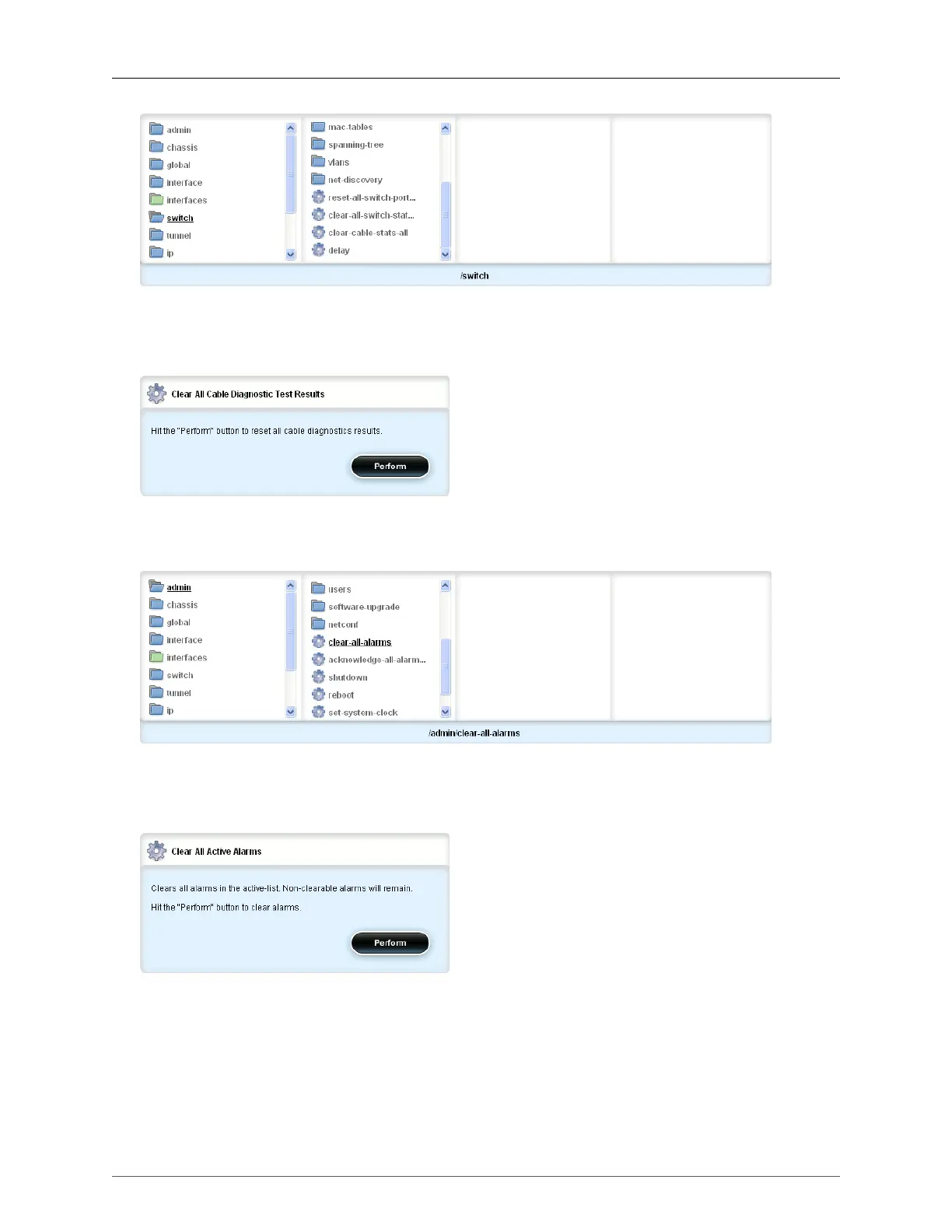

Figure 16.16. Clear All Diagnostics (Switch) menu
To clear all cable diagnostic results, click the Perform button on the Clear All Cable Diagnostic Test
Results form.
Figure 16.17. Clear All Cable Diagnostic Test Results form
16.2.4.2.2. Clearing Ethernet Alarms
Figure 16.18. Clear All Alarms menu
Alarms can be cleared by hitting the Perform button. This command can be accessed from the Clear
All Alarms menu action on the admin/clear-all-alarms menu.
Figure 16.19. Clear All Active Alarms Trigger Action
16.2.4.3. Calibrating Estimated Distance To Fault
Follow these steps to set the “Calib” parameter (the estimated distance to fault):
1. Pick a particular port for which calibration is needed.
2. Connect an Ethernet cable with a known length (e.g. 50m) to the port.

RuggedCom RuggedBackbone RX1500 Specifications

General

Power Supply	Dual redundant, hot-swappable power supplies
Switching Capacity	Up to 128 Gbps
Operating Temperature Range	-40°C to +85°C
Mounting	DIN rail or panel mount
Certifications	IEEE 1613, IEC 61850-3, EN 50155, EN 50121-4
Power Input	24/48VDC or 110/220 VAC
Enclosure	Rugged metal
Type	Modular Layer 3 switch
