37. Multicast Routing
ROX™ v2.2 User Guide 435 RuggedBackbone™ RX1500
The OutInterface is the interface to which the matched multicast packet will be forwarded.

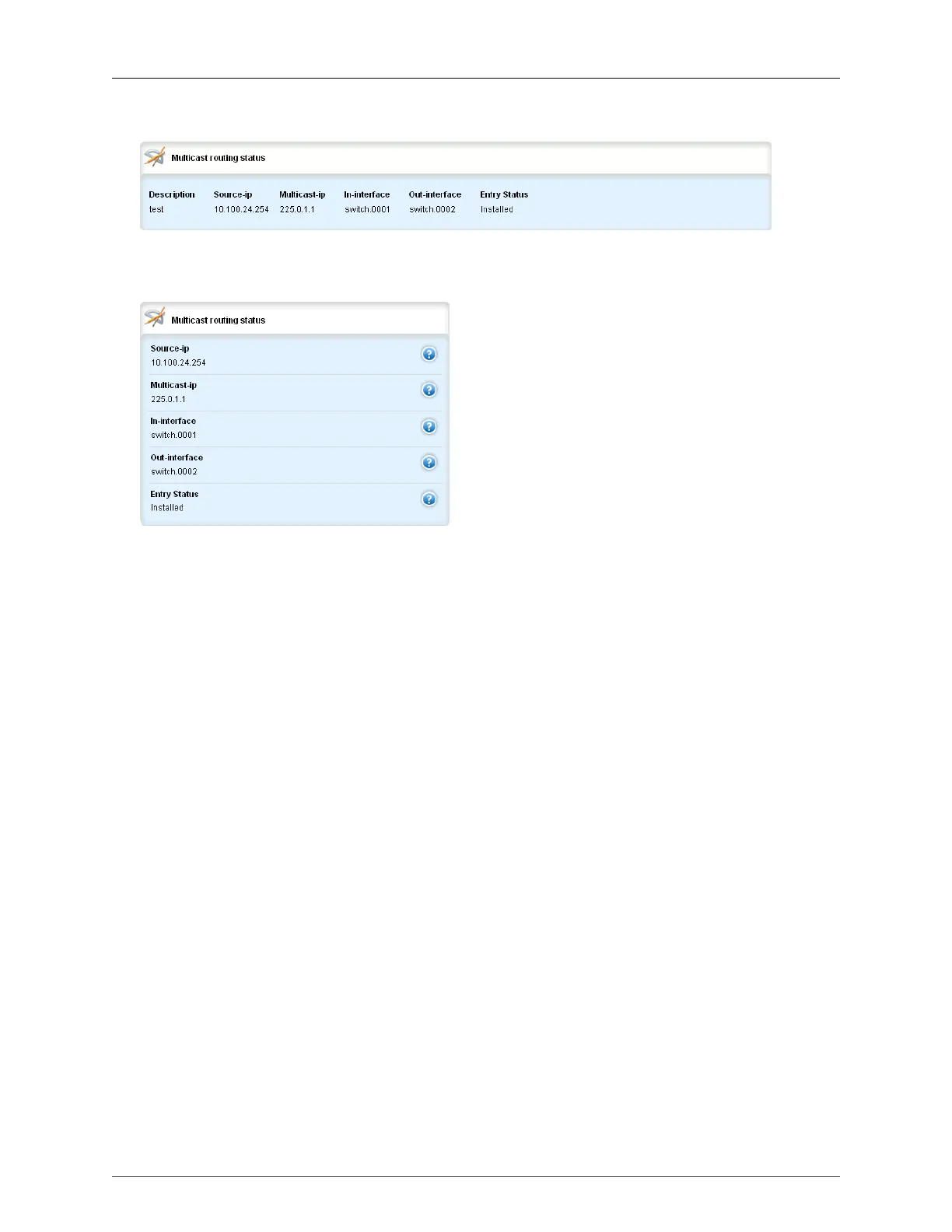

Figure 37.7. Multicast Routing Status table
The path to the Multicast Routing Status table is routing/multicast/static/status.
Figure 37.8. Multicast Routing Status form
The path to the Multicast Routing Status form is routing/multicast/static/status and then clicking on one
of the linked submenus.
description
Synopsis: A string
Describes this multicast group
source-ip
Synopsis: IPv4 address in dotted-decimal notation
The expected source IP address of the multicast packet, in the format xxx.xxx.xxx.xxx
“U” indicates that this address is uniquely paired with the multicast address set in the Multicast-
ip field. You cannot use this IP address to create another Multicast Routing entry with a different
Multicast-ip address.
multicast-ip
Synopsis: IPv4 address in dotted-decimal notation
The multicast IP address to be forwarded, in the format xxx.xxx.xxx.xxx
The address must be in the range of 224.0.0.0 to 239.255.255.255
“U” indicates that this address is uniquely paired with the source IP address set in the Source-
ip field. You cannot use this IP address to create another Multicast Routing entry with a different
Source-ip address.
in-interface
Synopsis: A string
The interface upon which the multicast packet arrives
out-interface
Synopsis: string
The interface to which the matched multicast packet will be forwarded
