RuggedCom RuggedBackbone RX1500 User Manual

13. PPP Users
ROX™ v2.2 User Guide 138 RuggedBackbone™ RX1500

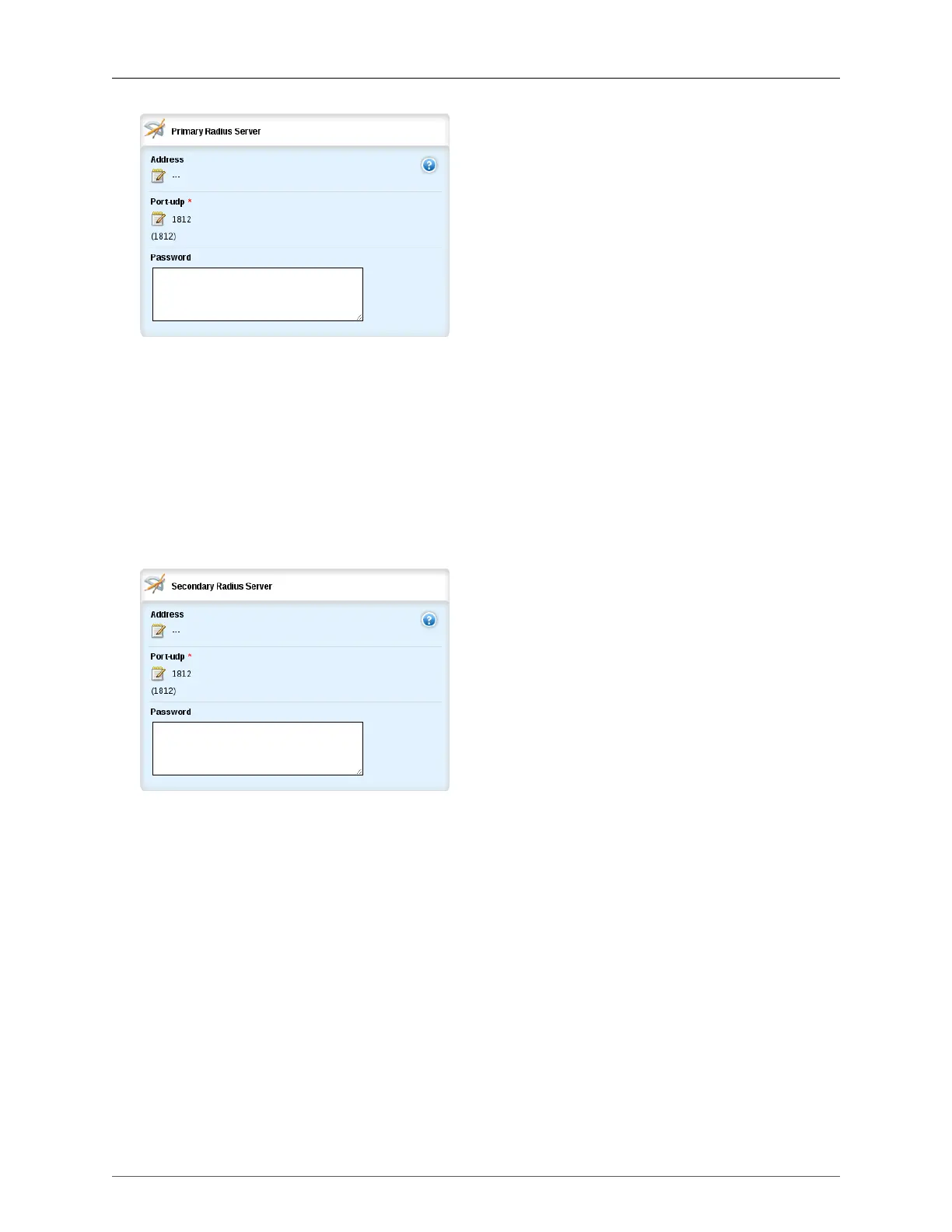

Figure 13.6. PPP Primary Radius Server form
address
Synopsis: IPv4 address in dotted-decimal notation
The IPv4 address of the server
port-udp
Synopsis: integer
Default: 1812
password
Synopsis: "AES CFB128"-encrypted string
Figure 13.7. PPP Secondary Radius Server form
address
Synopsis: IPv4 address in dotted-decimal notation
The IPv4 address of the server
port-udp
Synopsis: integer
Default: 1812
password
Synopsis: "AES CFB128"-encrypted string
13.3. PPP Interfaces and Link Failover
Link failover provides an easily configured means of raising a backup link upon the failure of a
designated main link. A PPP interface can be specified as the backup link for a designate main link. For
more information on link failover, see Chapter 41, Link Failover.

RuggedCom RuggedBackbone RX1500 Specifications

General

Power Supply	Dual redundant, hot-swappable power supplies
Switching Capacity	Up to 128 Gbps
Operating Temperature Range	-40°C to +85°C
Mounting	DIN rail or panel mount
Certifications	IEEE 1613, IEC 61850-3, EN 50155, EN 50121-4
Power Input	24/48VDC or 110/220 VAC
Enclosure	Rugged metal
Type	Modular Layer 3 switch
