RuggedCom RuggedBackbone RX1500 User Manual

4. Basic Network Configuration
ROX™ v2.2 User Guide 76 RuggedBackbone™ RX1500
4.1.5. Routable Interfaces

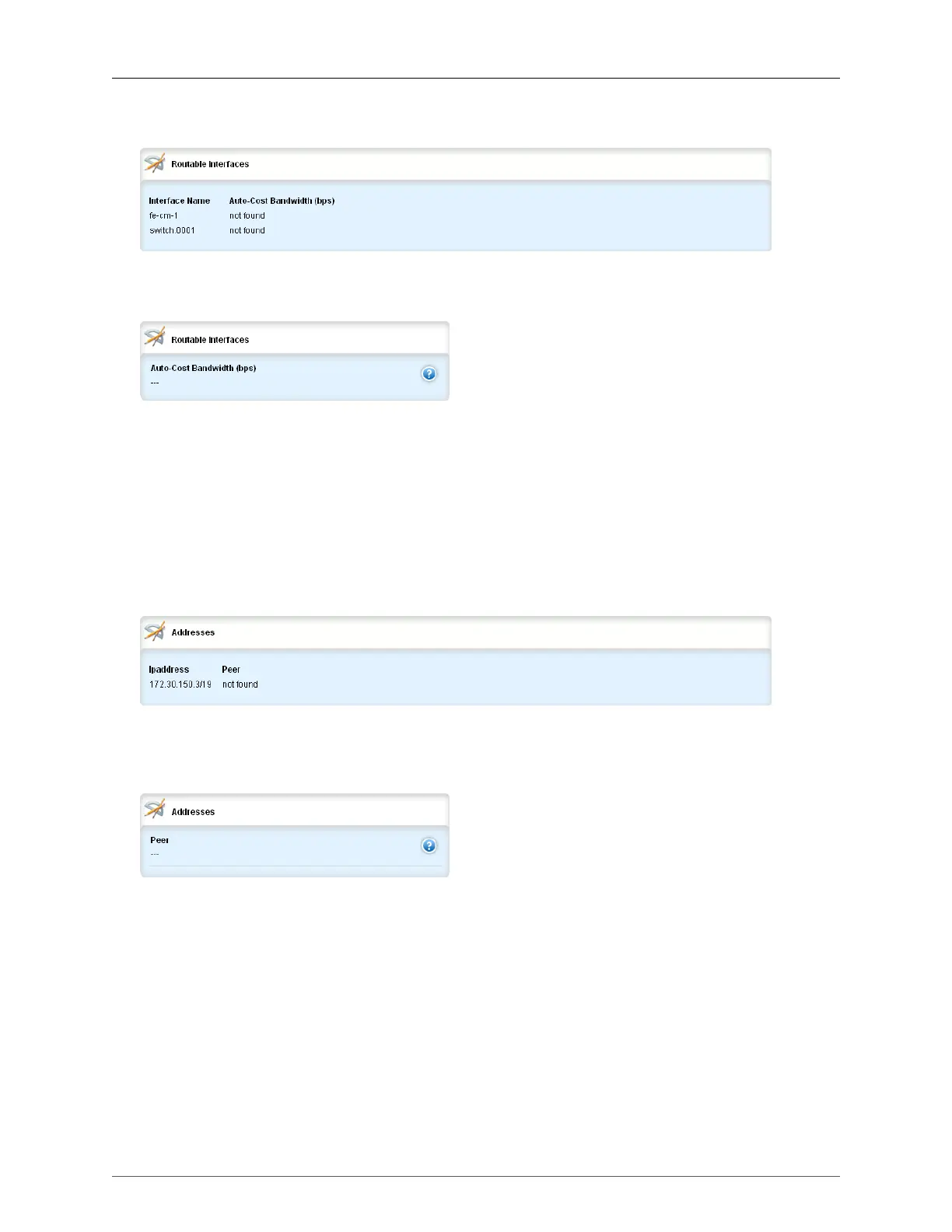

Figure 4.5. Routable Interfaces table
The Routable Interfaces table is accessible from the ip menu.
Figure 4.6. Routable Interfaces form
The path to the Routable Interfaces form is ip/{interface}.
Interface Name
Synopsis: A string
The name for this routable logical interface
Auto-Cost Bandwidth (kbps)
Synopsis: unsigned long integer
This value is used in auto-cost calculations for this routable logical interface in kbps
Figure 4.7. Addresses table
The path to the Addresses table is ip/{interface}/ipv4. The Addresses table provides a summary of which
IP addresses are configured.
Figure 4.8. Addresses form
The path to the Addresses form is ip/{interface}/ipv4/{address}.
ipaddress
Synopsis: IPv4 address and prefix in CIDR notation
The IPv4/Prefix (xxx.xxx.xxx.xxx/xx).
peer
Synopsis: IPv4 address in dotted-decimal notation
The peer IPv4 Address (xxx.xxx.xxx.xxx, PPP link only).

RuggedCom RuggedBackbone RX1500 Specifications

General

Power Supply	Dual redundant, hot-swappable power supplies
Switching Capacity	Up to 128 Gbps
Operating Temperature Range	-40°C to +85°C
Mounting	DIN rail or panel mount
Certifications	IEEE 1613, IEC 61850-3, EN 50155, EN 50121-4
Power Input	24/48VDC or 110/220 VAC
Enclosure	Rugged metal
Type	Modular Layer 3 switch
