RuggedCom RuggedBackbone RX1500 User Manual

13. PPP Users
ROX™ v2.2 User Guide 136 RuggedBackbone™ RX1500

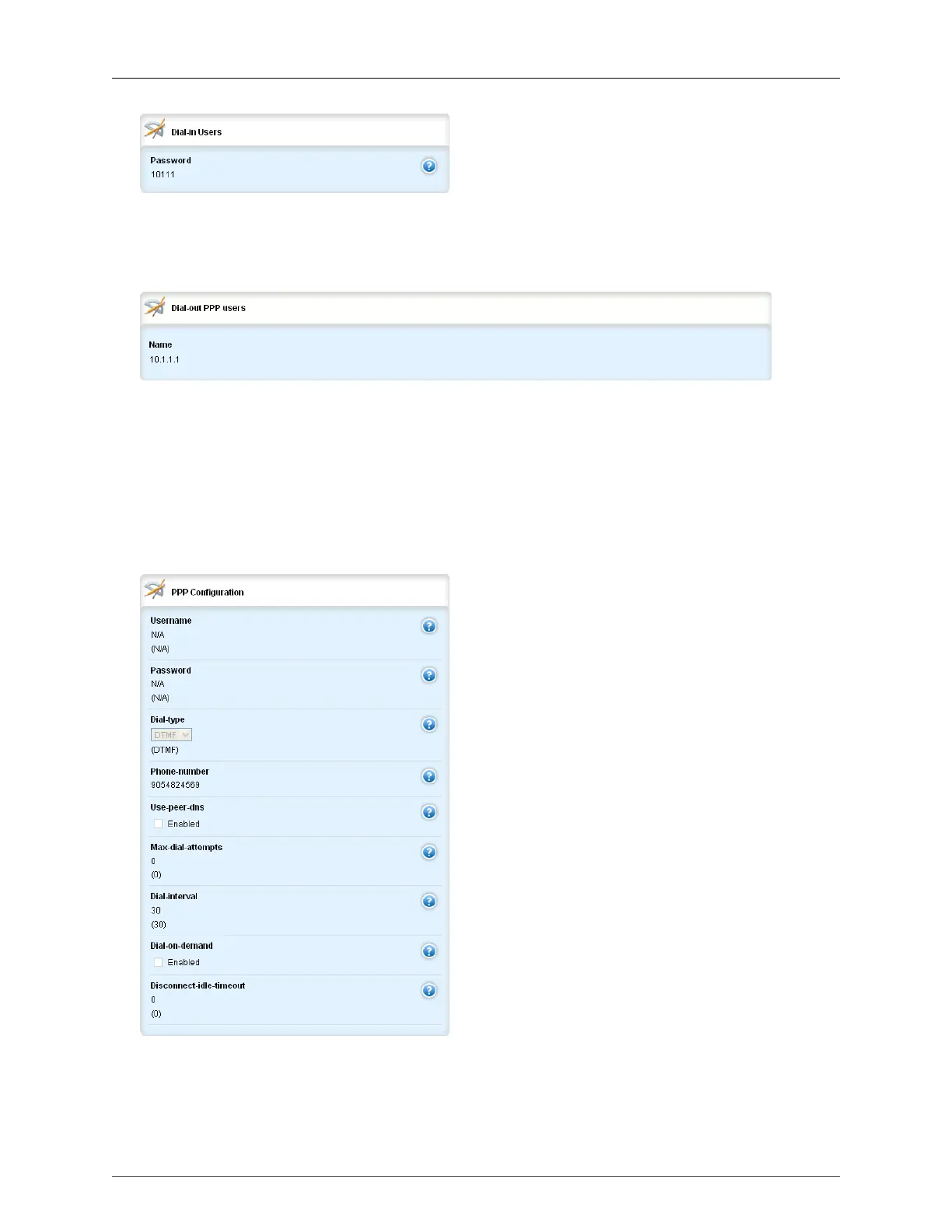

Figure 13.3. Dial-in Users form
The Dial-in Users form allows you to add PPP profiles for dial-in users.
To display the Dial-out PPP Users table, navigate to global/ppp/profiles/dialout.
Figure 13.4. Dial-out PPP Users table
Dial-out PPP is used to add PPP profile for dialOut users.
name
Synopsis: A string
The connection name
To display the PPP Configuration form, navigate to global/ppp/profiles/dialout and then click on any of
the linked submenus.
Figure 13.5. PPP Configuration form
username
Synopsis: A string

RuggedCom RuggedBackbone RX1500 Specifications

General

Power Supply	Dual redundant, hot-swappable power supplies
Switching Capacity	Up to 128 Gbps
Operating Temperature Range	-40°C to +85°C
Mounting	DIN rail or panel mount
Certifications	IEEE 1613, IEC 61850-3, EN 50155, EN 50121-4
Power Input	24/48VDC or 110/220 VAC
Enclosure	Rugged metal
Type	Modular Layer 3 switch
